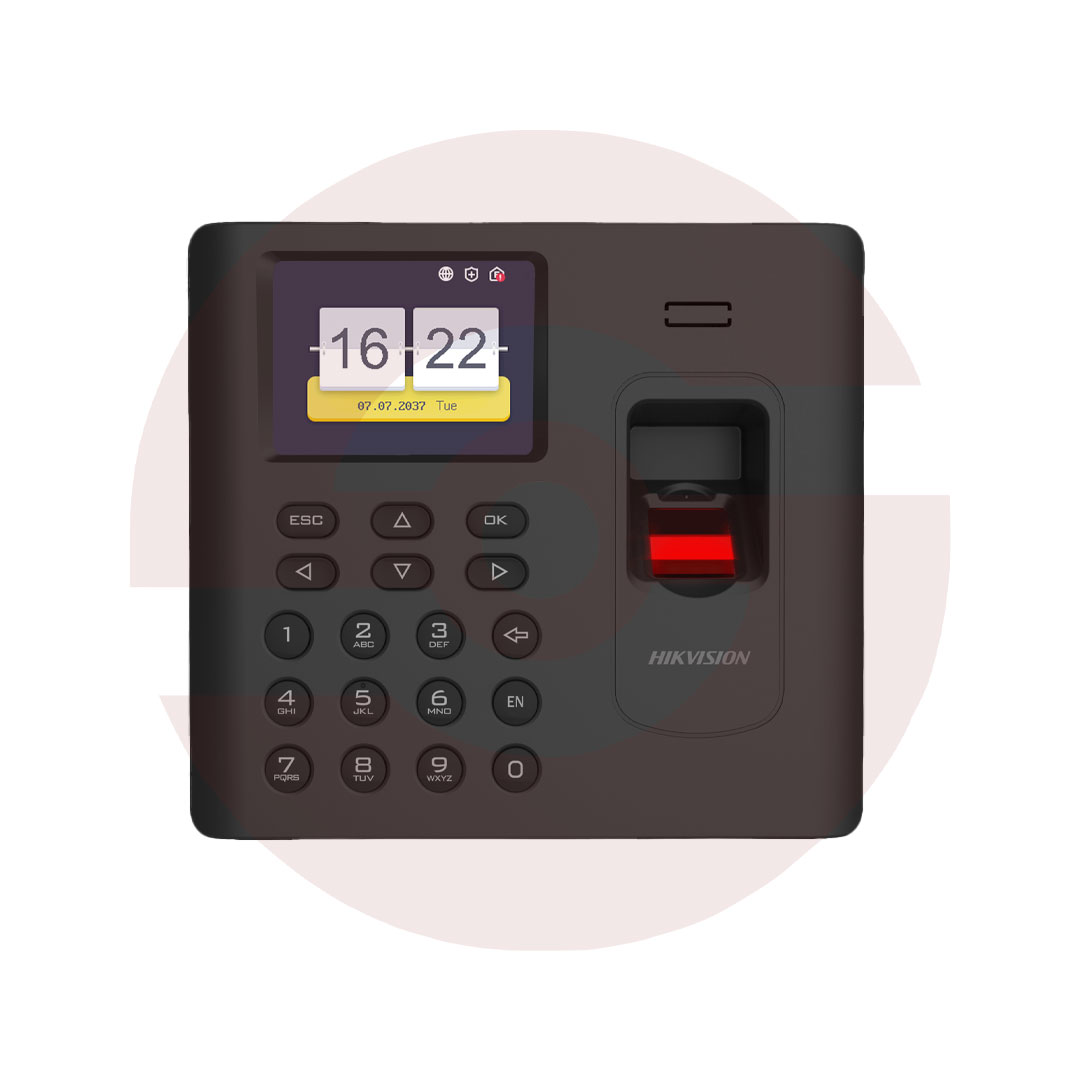

Hikvision DS-K1T802AMF-B
Fingerprint Time Attendance Terminal
- 2.4-inch LCD screen to display time, date, week, and attendance information
- Transmission modes of wired network (TCP/IP) and wireless network
- 1:N mode accurate and fast fingerprint recognition (recognition duration < 1 s)
- Max. 3000 users, Max. 3000 fingerprints, Max. 100,000 event records
- Stand-alone operation (supports adding persons, cards, and fingerprints locally)
- Downloads attendance reports by USB flash drive
- Up to 32 normal shifts, up to 32 man-hour shifts, and up to 32 attendance holiday schedules can be configured
- Generates reports automatically
- Export the report and upgrade the device via the USB flash drive
- Prompt for full report memory
- Supports multiple authentication modes, supports authentication via PIN code
- Supports multiple languages: English, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic, Thai, Turkish,
Indonesian, and Ukrainian - When the main power is off, the system will change the power supply method to lithium battery supply automatically
- Checks the device running status via the Watchdog. When exceptional status occurs, the device will reboot
automatically - Supports transmitting data via Wi-Fi
- Supports ISAPI protocol and ISUP 5.0 protocol
Description- Specification
System
Operating system Linux
Screen
Screen size 2.4-inch
Type LCD-TFT display screen
Audio
Audio output 1 loudspeaker, 1 buzzer
Network
Wired network TCP/IP, 10/100Mbps, self-adaptive
Wi-Fi Support
Interface
Network interface 1
USB 1
Capacity
Card capacity 3000
Fingerprint capacity 3000
Event capacity 100,000
Authentication
Card type Mifare 1 card
Card reading distance 0 to 5 cm
Card reading duration < 1 s
Fingerprint module Optical fingerprint module
Fingerprint comparing mode 1:1 and 1:N
Fingerprint recognition duration < 1 s
Fingerprint FAR ≤ 0.001 %
Fingerprint FRR ≤ 0.01 %
Others
Indicator Power/status (red/green)
Battery Support
Power supply 5 VDC/1 A
Working temperature -10 °C to +55 °C (14 °F to +131 °F)
Working humidity 10% to 90% (no condensing)
Color Black
Dimensions 140 mm × 155 mm × 30 mm (5.51″ × 6.01″ × 1.18″)
Application environment Indoor
Installation Surface mounting, desk stand
