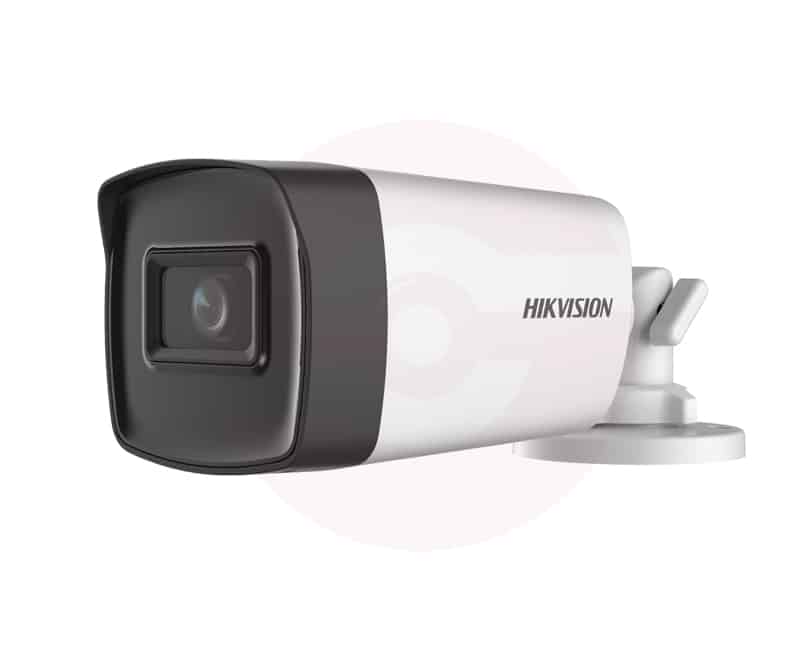

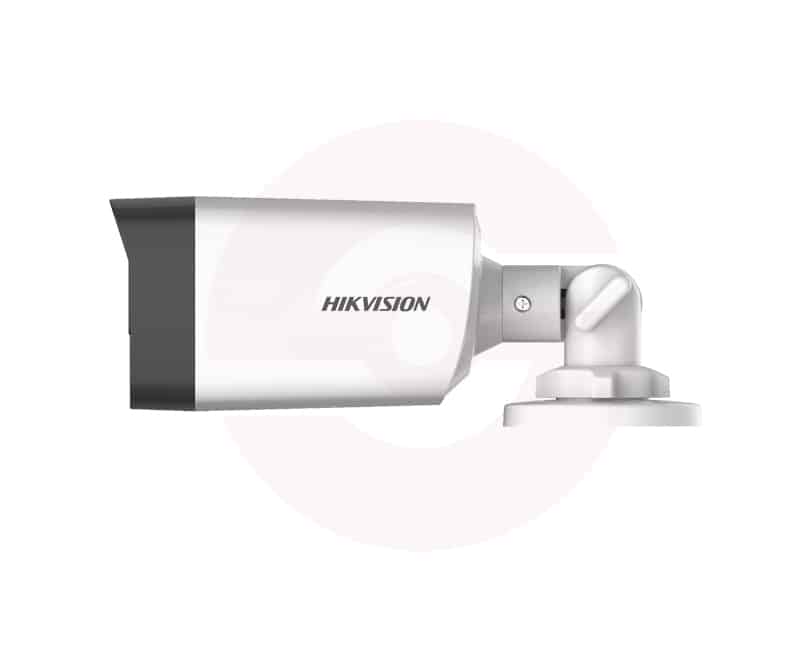

Hikvision DS-2CE17H0T-IT3F
5 MP Fixed Bullet Camera
- High quality imaging with 5 MP, 2560 × 1944 resolution
- 3.6 mm fixed focal lens
- Up to 40 m IR distance for bright night imaging
- One port for four switchable signals (TVI/AHD/CVI/CVBS)
- Water and dust resistant (IP67)
12
People watching this product now!
Description
-
- Camera
- Image Sensor 5 MP CMOS
- Max. Resolution 2560 (H) × 1944 (V)
- Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter Time : PAL: 1/25 s to 1/50, 000 s , NTSC: 1/30 s to 1/50, 000 s
- Day & Night ICR
- Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 180°, Rotation 0 to 360°
- Signal System PAL/NTSC
- Lens
- Lens Type 3.6 mm fixed lens
- Focal Length & FOV 3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV:105°
- Lens Mount M12
- Image
- Image Parameters Switch STD/HIGH-SAT
- Image Settings Brightness, Sharpness, Mirror, Smart IR
- Frame Rate
TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps
AHD: 5M@20fps, 4M@30fps, 4M@25fps
CVI: 4M@30fps, 4M@25fps
-
CVBS: PAL/NTSC
- Day/Night Mode Auto/Color/BW (Black and White)
- Wide Dynamic Range (WDR)Digital WDR
- Image Enhancement DWDR/BLC/HLC/Global
- Noise Reduction Yes
- White Balance Auto/Manual
- AGC Support
- Interface
- Video Output TVI/AHD/CVI/CVBS
- General
- Material Front Cover: Metal , Main Body: Plastic
- Dimension 78.9 mm × 75.4 mm × 216.6 mm (3.10″ × 2.97″ × 8.53″)
- Approx. 330 g (0.73 lb.)
- Operating Condition -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- Communication HIKVISION-C
- Language English
- Power Supply 12 VDC ± 25%
- Consumption Max. 4.3 W
- IR Range Up to 40 m
- Protection IP67
