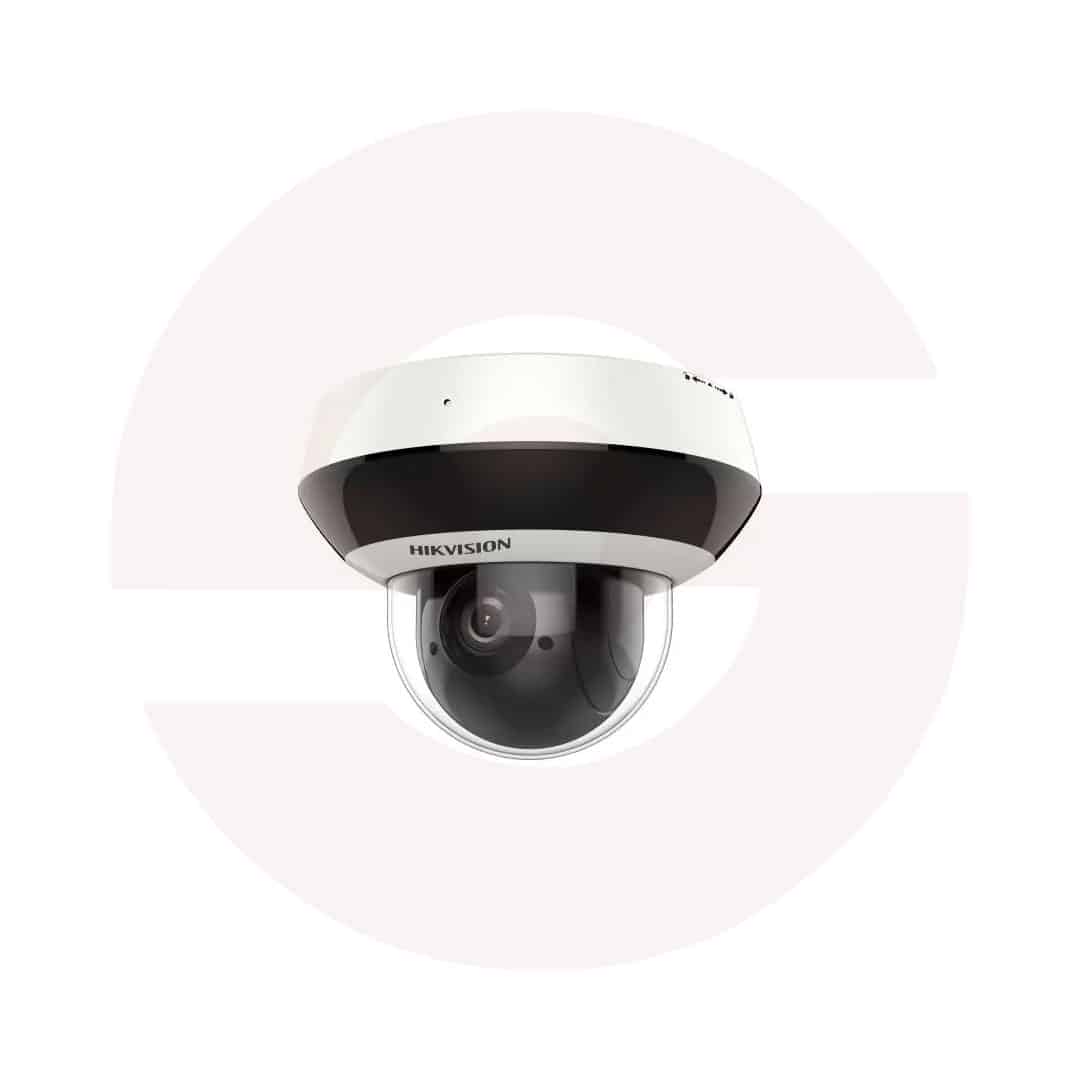

Hikvision DS-2DE2A404IW-DE3(S6)

Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Max. Resolution 2560 × 1440
Min. Illumination Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 Lux with IR
Shutter Speed 1/1 s to 1/30,000 s
Day & Night IR cut filter
Zoom 4x optical, 16x digital
Slow Shutter Yes

Lens
Focal Length 2.8 to 12 mm
FOV Horizontal FOV 96.796° to 31.68°, vertical FOV 51.16° to 17.798°, diagonal FOV 115.13° to 36.32°
Focus Auto, semi-auto, manual
Aperture Max. F1.5
Zoom Speed Approx. 2 s

Video
Main Stream
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main profile
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region Of Interest (ROI)8 fixed regions for each stream

Audio
Audio Compression G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/16-64Kbps(AAC)
Audio Sampling Rate AAC: 16 kHz, 32 kHz, 48 kHz; MP2L2: 16 kHz, 32 kHz, 48 kHz; PCM: 8 kHz, 16 kHz, 32 kHz, 64 kHz
Environment Noise Filtering Yes

Network
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Simultaneous Live View Up to 20 channels
API Open Network Video Interface (Version 18.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/Host Up to 32 users; 3 user levels: administrator, operator, and user
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client iVMS-4200, HikCentral Pro, Hik-Connect
Web Browser IE 10-11, Chrome 57+, Firefox 52+, Safari 11+

Image Parameters Switch Yes
Image Settings Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Day/Night Switch Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)120 dB
SNR＞52dB
Defog Digital Defog
Image Stabilization No
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask 24 programmable polygon privacy masks, mask color or mosaic configurable
Regional Focus Yes
Regional Exposure Yes

Interface
Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Built-In Microphone 1 built-in microphone, picking up sounds in the radius up to 5 meters
Audio
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%;
1 output (line out), line level, output impedance: 600 Ω
Reset Yes
Power Output 12 VDC, max. 60 mA

Event
Basic Event Motion detection, video tampering alarm, exception
Smart Event Face detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
Alarm Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, and PTZ actions (such as preset)

General
Power12 VDC, Max. 9.2 W; PoE (802.3af)
Dimension Ø 130.7 mm ×101.7 mm (Ø 5.15″ × 4.00″)
Weight Approx. 530 g (1.17 lb.)
Operating Condition -20 °C to 60 °C (-4 °F to 140 °F). Humidity 90% or less (non-condensing)
General Function Mirror, password protection
