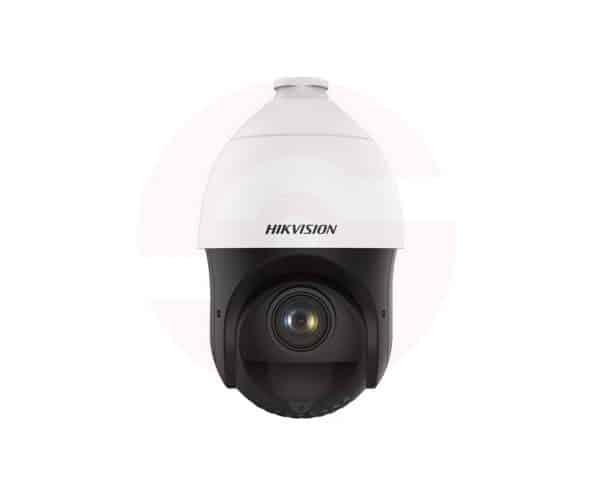

Hikvision DS-2DE4225IW-DE(S6)
4-inch 2 MP 25X Powered by DarkFighter IR Network Speed Dome
- 1/2.8″ progressive scan CMOS
- High quality imaging with 2 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- 25× optical zoom and 16× digital zoom provide close up views over expansive areas
- WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus
- Expansive night view with up to 100 m IR distance
- Support H.265+/H.265 video compression
18
People watching this product now!
Description
-
- Camera
- Image Sensor 1/2.8″ progressive scan CMOS
- Min. Illumination 0 Lux with IR; color: 0.005Lux @ (F1.6，AGC ON) ;B/W: 0.001Lux @ (F1.6, AGC ON)
- Shutter Speed 1 s to 1/30,000 s
- Slow Shutter yes
- Focus semi-auto; manual; auto
- Day & Night ICR
- Day/Night Switch day, night, auto, scheduled-switch
- BLC yes
- WDR 120 dB WDR
- HLC yes
- 3D DNR yes
- Defog yes
- EIS no
- Regional Exposure yes
- Regional Focus yes
- Image Settings saturation; brightness; contrast; sharpness
- Image Parameters Switch yes
- White Balance MWB; indoor; outdoor; fluorescent lamp; sodium lamp; ATW; auto; Locked WB
- Digital Zoom16x
- Optical Zoom25x
- Privacy Mask up to 24 masks; mask color configurable
- SNR＞52dB
- Lens
- Focal Length 4.8 mm to 120 mm, 25× Optical
- Zoom Speed approx. 3.6 s
- FOV
Horizontal field of view: 57.6° to 2.5° (wide-tele),
Vertical field of view: 34.4° to 1.4° (wide-tele),
Diagonal field of view: 64.5° to 2.9° (wide-tele)
- Aperture F1.6
- Illuminator
- IR Distance 100 m
- PTZ
- Movement Range (Pan) 360°
- Movement Range (Tilt) -15° to 90° (auto flip)
- Pan Speed pan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s
- Tilt Speed tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
- Proportional Zoom yes
- Presets 300
- Patrol Scan 8 patrols, up to 32 presets for each patrol
- Pattern Scan 4 pattern scans
- Power-Off Memory yes
- Park Action preset; patrol scan; pattern scan; auto scan; tilt scan; random scan; frame scan; panorama scan
- 3D Positioning yes
- PTZ Status Display yes
- Preset Freezing yes
- Scheduled Task preset; auto scan; random scan; frame scan; patrol scan; pattern scan; panorama scan; tilt scan; dome reboot; dome adjust; aux output
- Video
- Max. Resolution 1920 × 1080
- Stream Type main stream; sub-stream; third stream
- Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
- Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Video Compression H.265;H.264;MJPEG
- Video Bit Rate 32 kbps to 16384 kbps
- H.264 Type baseline profile; main profile; high profile
- H.265 Type main profile
- H.264+yes
- H.265+yes
- SVC yes
- ROI fixed region; main stream, sub-stream and third stream respectively support eight fixed areas
- Audio
- Audio CompressionG.711alaw;G.711ulaw;G.722.1;G.726;MP2L2;PCM
- Audio Bit RateMP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps
- Audio Sampling Rate MP2L2: 16 kHz, 32 kHz, 48 kHz; PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz
- Environment Noise Filtering yes
- Smart Features
- Basic Event motion detection; alarm input; alarm output; video tampering alarm; exception
- Smart Event intrusion detection; line crossing detection; region entrance detection; region exiting detection; unattended baggage detection; object removal detection; audio exception detection; face detection
- Smart Record ANR; Dual-VCA
- Alarm Linkage memory card video recording; alarm output; sending email; notify surveillance center; upload to FTP;NAS video recording
- Network
- Protocols IPv4/IPv6,HTTP,HTTPS,802.1X,QoS,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,UDP,IGMP,ICMP,DHCP, PPPoE, Bonjour,ISUP
- Network Storage NAS (NFS, SMB/ CIFS)
- APIISAPI; Hikvision SDK; Third-party management platform; Open-ended API; Hik-Connect; ISUP; Open Network Video Interface; CGI
- Simultaneous Live View 20
- User/Host32
- Security Measures Authenticated username and password; MAC address binding ;HTTPS encryption;802.1X authenticated access; IP address filter
- Client iVMS-4200;Hik-Connect
- Web Browser IE10-11, Chrome 57+, Firefox 52+, Safari 12+
- Interface
- Communication Interface RJ45, self-adaptive 10M/100M Ethernet port
- On-Board Storage support microSD/microSD HC/microSD XC cards; up to 256 GB
- Alarm Input 1 alarm input
- Alarm Output 1 alarm output
- Audio Input 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
- Audio Output 1 audio output, line level, impedance: 600 Ω
- General
- Powe r12 VDC; PoE (802.3at)
- Power Consumption And Current Max. 18 W, including max. 1.6 W for heater and 9 W for IR
- Operating Conditions-30℃ to 65℃ (-22°F to 149°F) ;humidity lower than 90%RH
- Reset yes
- Demist yes
- Material ADC 12
- Dimensions Ø 164.5 mm × 290 mm (Ø 6.48″ × 11.42″)
- Weight Approx. 2 kg (4.41 lb.)
- Approval
- Protection IP66 Standard, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
