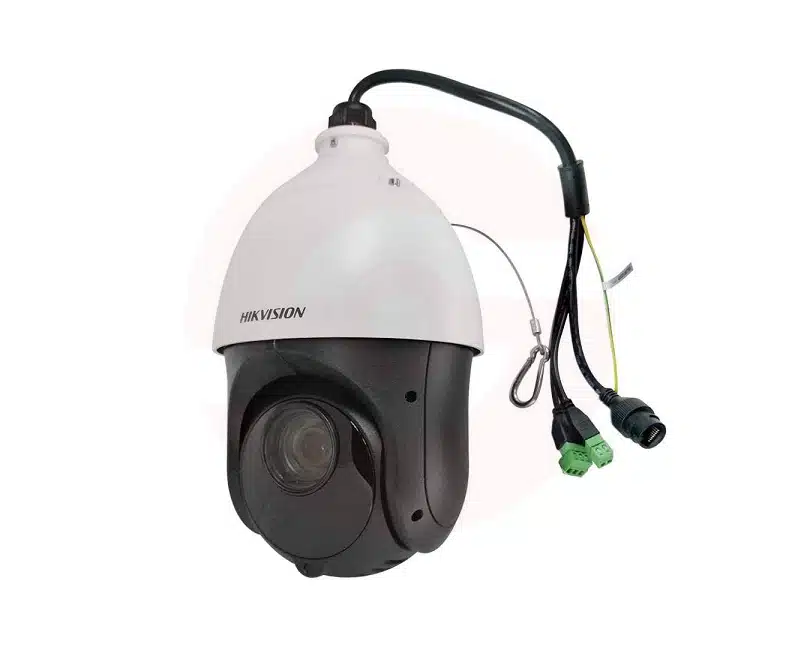

Hikvision DS-2DE4425IW-DE(S6)
4-inch 4 MP 25X Powered by DarkFighter IR Network Speed Dome
- 1/2.8″ Progressive Scan CMOS
- High quality imaging with 4 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- 25× optical zoom, 16× digital zoom
- WDR, HLC, BLC, 3D DNR, Defog, Regional Exposure, Regional Focus
- Up to 100 m IR distance
- Accurate human and vehicle target classification and alarm based on deep learning algorithm
- Face capture: Up to 5 faces captured at the same time
11
People watching this product now!
Description
- Camera Module
- Image Sensor 1/2.8＂ progressive scan CMOS
- Min. Illumination0 Lux with IR, color: 0.005Lux @ (F1.6，AGC ON); B/W: 0.001Lux @ (F1.6，AGC ON)
- Shutter Speed 1/1s-1/30000s
- Slow Shutter yes
- Focus; semi-auto; manual; auto
- Day & Night ICR
- Day/Night Switch day, night, auto, scheduled-switch
- BLC yes
- WDR 120 dB WDR
- HLC yes
- 3D DNR yes
- Defog yes
- EIS yes
- Regional Exposure yes
- Regional Focus yes
- Image Settings brightness; contrast; sharpness ;saturation
- White Balance auto; ATW; sodium lamp; indoor; fluorescent lamp; outdoor; MWB; Locked WB; Locked WB
- Digital Zoom16x
- Optical Zoom25x
- Privacy Mask up to 24 masks; polygon region ;mosaic mask ;mask color configurable
- SNR＞52dB
- Lens
- Focal Length4.8 mm to 120 mm, 25× Optical
- Zoom Speed approx. 3.6 s
- FOV
Horizontal field of view: 55° to 2.4° (wide-tele),
Vertical field of view: 33° to 1.4° (wide-tele),
Diagonal field of view: 61.5° to 2.8° (wide-tele)
- ApertureF1.6
- PTZ
- Movement Range (Pan)360°
- Movement Range (Tilt)-15° to 90° (auto flip)
- Pan Speed pan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s
- Tilt Speed tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
- Proportional Zoom yes
- Presets300
- Patrol Scan8 patrols, up to 32 presets for each patrol
- Pattern Scan4 pattern scans
- Power-Off Memory yes
- Park Action preset; pattern scan; patrol scan ;auto scan ;tilt scan ;random scan ;frame scan; panorama scan
- 3D Positioning yes
- PTZ Status Display yes
- Preset Freezing yes
- Scheduled Task preset; pattern scan; patrol scan; auto scan; panorama scan; random scan; tilt scan; frame scan; dome reboot; dome adjust; aux output
- Video
- Max. Resolution 2560 × 1440
- Stream Type main stream; sub-stream; third stream
- Main Stream
50Hz:25fps (2560×1440,1920×1080,1280×960,1280×720)
60Hz: 30fps(2560×1440,1920×1080,1280×960,1280×720)
- Sub-Stream
50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)
60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
- Third Stream
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Video CompressionH.265;H.264;MJPEG
- Video Bit Rate32kbps to 16384kbps
- H.264 Type;;;baseline profile; main profile ;high profile
- H.265 Type; main profile
- H.264+yes
- H.265+yes
- SVC yes
- ROI dynamic face tracking;;main stream, sub-stream and third stream respectively support eight fixed areas; fixed region
- Audio
- Audio CompressionG.711alaw;G.711ulaw;G.722.1;G.726;MP2L2;PCM
- Audio Bit RateMP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps;MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps;192kbps
- Audio Sampling RateMP2L2: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz
- Environment Noise Filtering yes
- Smart Features
- Face Capture yes
- Basic Event audio exception; motion detection; video tampering alarm; exception
- Smart Event intrusion detection; line crossing detection; region entrance detection ;region exiting detection; unattended baggage detection ;object removal detection
- Smart Record ANR; Dual-VCA
- Alarm Linkage preset; patrol scan ;pattern scan; memory card video recording ;alarm output ;sending email; notify surveillance center; upload to FTP
- Network
- Network Storage NAS (NFS, SMB/ CIFS);ANR
- ProtocolsIPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;SMTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;RTCP;RTP;TCP/IP;UDP; IGMP ;ICMP; DHCP; PPPoE; Bonjour
- APIISAPI; Hikvision SDK;ONVIF (Profile S, Profile G, Profile T);ISUP; Hik-Connect
- Simultaneous Live View20
- User/Host32
- Smooth Streaming yes
- Security Measures Authenticated username and password; MAC address binding; HTTPS encryption;802.1X authenticated access ;IP address filter
- ClientiVMS-4200;Hik-Connect
- Web Browser IE 8 to 11, Chrome 57+, Firefox 52+, Safari 12+
- Interface
- Communication Interface1 RJ45 10 M/100 M Ethernet interface; PoE (802.3at);RJ45, self-adaptive 10M/100M Ethernet port
- On-Board Storage support microSD/microSD HC/microSD XC cards; up to 256 GB
- Alarm Input1 alarm input
- Alarm Output1 alarm output
- Audio Input;1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
- Audio Output1 audio output, line level, impedance: 600 Ω
- Supplement Light
- IR Distance100 m
- General
- Power12 VDC ,PoE(802.3at)
- Power Consumption And Current Max. 24 W, including max. 9 W for supplement light
- Operating Conditions humidity lower than 90%RH ;temperature: -30℃ to 65℃ (-22°F to 149°F)
- Reset yes
- Material ADC 12, PC, PC+10% GF
- DimensionsΦ 164.5 mm × 290 mm (Φ 6.48″ × 11.42″)
- Approx. 2 kg (4.41 lb)
- Approval
- Protection;IP66;4000V Lightning Protection, Surge Protection and Voltage Transient Protection
