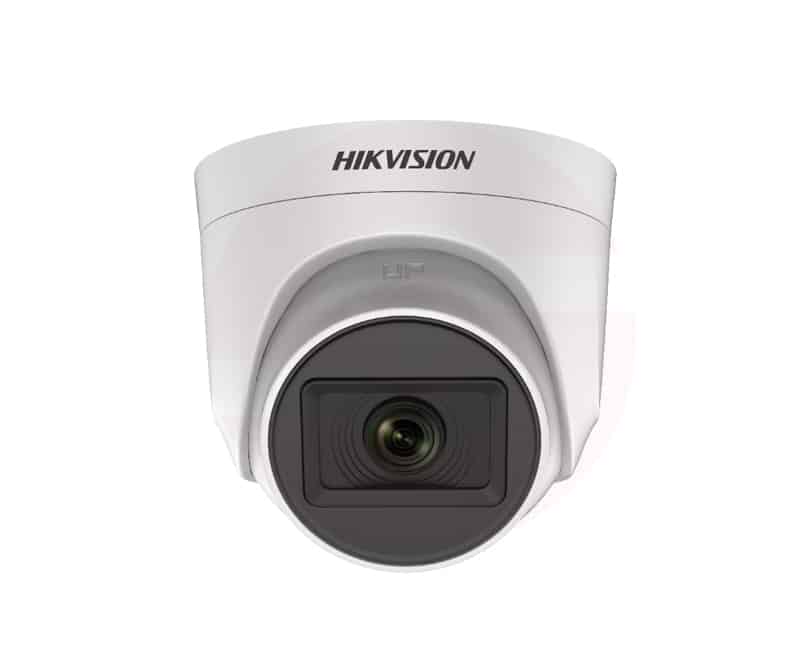

Hikvision DS-2CE76D0T-ITPF(C)

Camera
Image Sensor 2 MP CMOS
Max. Resolution 1920 (H) × 1080 (V)
Min. Illumination 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25s to 1/50, 000 s
NTSC: 1/15 s to 1/50, 000 s
Day & Night ICR
Angle Adjustment Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°
Signal System PAL/NTSC
Lens
Lens Type 2.8 mm fixed lens
Focal Length & FOV 2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6°
Lens Mount M12
Image Parameters Switch STD/HIGH-SAT
Image Settings Brightness, Sharpness, Smart IR
Frame Rate
TVI: 1080P@30fps, 1080P@25fps
CVI: 1080P@30fps, 1080P@25fps
AHD: 1080P@30fps, 1080P@25fps
CVBS: PAL/NTSC
Day/Night Mode Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR)Digital WDR
Image Enhancement BLC, HLC
White Balance ATW/MANUAL
AGC Support

General
Material Plastic
DimensionΦ 84.6 mm × 78.9 mm (Φ 3.33″ × 3.11″)
Approx. 135 g (0.30 lb.)
Operating Condition-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
Communication HIKVISION-C
Language English
Power Supply 12 VDC ± 25%
Consumption
Max. 2.2 W
IR Range Up to 20 m
