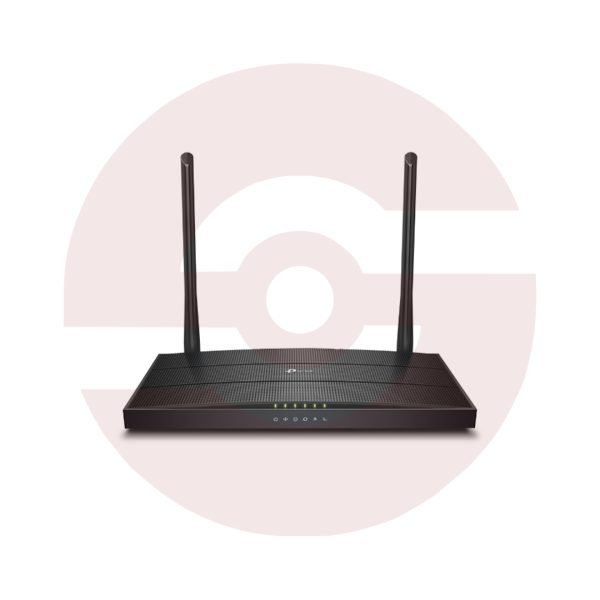

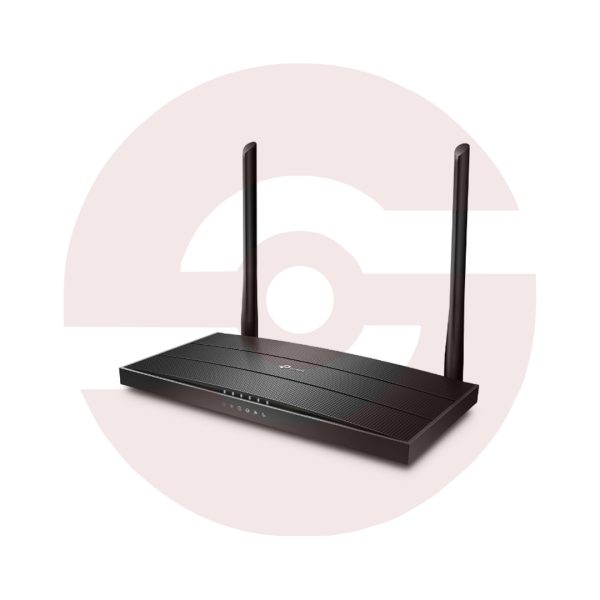

Tp-link-XC220-G3v

AC1200 Wireless VoIP XPON Router

Superfast Dual Band WiFi: Up to 1.2 Gbps Wi-Fi speed, 300 Mbps 2.4GHz, 867 Mbps 5GHz*
Full Gigabit Port: Up to 10× faster than standard Ethernet, deliver lightning-fast wired performance
Supports VOIP Calls: Simply make or receive phone calls over the Internet
Easy Remote Management: Supports the ONT Management and Control Interface (OMCI), easy to configure and manage remotely from an OLT
Smooth Connection: Supports VLAN, 802.1q, smooth network connection for IPTV and other services

HARDWARE FEATURES

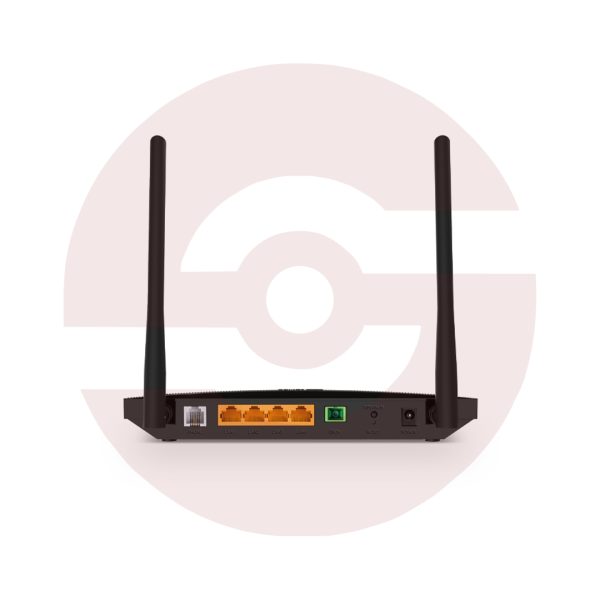

Interface	4 10/100/1000 Mbps RJ45 LAN Ports 1 SC/APC PON Port 1 RJ11 FXS Port
Button	WPS/Wi-Fi Button, RESET Button
External Power Supply	12V/1.0A
Antenna	2 External Dual Band Antennas

WIRELESS FEATURES
Wireless Standards	IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz
Frequency	2.4 GHz and 5 GHz (not Supports DFS)
Signal Rate	867 Mbps on 5 GHz, 300 Mbps on 2.4 GHz
Wireless Functions	Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security	WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Transmission Power	2.4 GHz: 26 dBm(EIRP), 5GHz: 27dBm (EIRP)
Wireless Schedule	Support 2.4 GHz and 5 GHz Wireless Schedule
Mesh Technology	EasyMesh Compatible, TP-Link OneMesh

SOFTWARE FEATURES
Quality of Service	Hardware QoS
Advanced Features	Parental Control, Network Address Translation(NAT), Port Mapping(Grouping), Static Routing, DNS Relay, DDNS, IGMP V1/V2/V3
Security	NAT Firewall, Access Control, MAC/IP/URL Filtering, IP and MAC Address Binding, Defense “Denial of Service (DoS), SYNFlooding, Ping of Death”
Management Features	Web Based Configuration(HTTP), Remote management, Command Line Interface, SSL for TR-069, Web Based Firmware Upgrade, Diagnostic Tools, OMCI
DHCP	Server, Client, DHCP Client List, Address Reservation, DHCP Relay
Port Forwarding	Virtual Server, Port Triggering, DMZ, ALG, UPnP
Dynamic DNS	DynDns, NO-IP
VPN Pass-Through	PPTP, L2TP, IPSec Pass-through
Protocols	Supports IPv4 and IPv6
VOIP Features	Call hold, Call forward, Warm call, Do not disturb, Call restriction, Speed dial, etc. Caller ID, 3-party conference, SIP account – up to 8 accounts

OTHERS
Package Content	AC1200 Wireless VoIP XPON Router RJ45 Ethernet Cable Power Adapter Quick Installation Guide
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Environment	Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
