WIRELESS Standards Wi-Fi 4
IEEE 802.11n/b/g 2.4 GHzWiFi Speeds N450
2.4 GHz: 450 Mbps (802.11n)WiFi Range 2 Bedroom Houses
3× Fixed Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areasWiFi Capacity Legacy Working Modes Router Mode
Access Point Mode
Range Extender ModeHARDWARE Processor Single-Core CPU Ethernet Ports 1× 10/100 Mbps WAN Port
4× 10/100 Mbps LAN PortsButtons WPS/Wi-Fi Button
Power On/Off Button
Reset ButtonPower 9 V ⎓ 0.6 A SECURITY WiFi Encryption WEP
WPA
WPA2
WPA/WPA2-Enterprise (802.1x)Network Security SPI Firewall
Access Control
IP & MAC Binding
Application Layer GatewayGuest Network 1× 2.4 GHz Guest Network SOFTWARE Protocols IPv4
IPv6Parental Controls URL Filtering
Time ControlsWAN Types Dynamic IP
Static IP
PPPoE
PPTP
L2TPQuality of Service QoS by Device NAT Forwarding VIrtual Server
Port Forwarding
Port Triggering
DMZ
UPnPIPTV IGMP Proxy
IGMP SnoopingDHCP Address Reservation
DHCP Client List
ServerDDNS NO-IP
Comex
DynDNSManagement Tether App
Webpage
Check Web Emulator>PHYSICAL Dimensions (W×D×H) 9.1 × 5.7 × 1.4 in

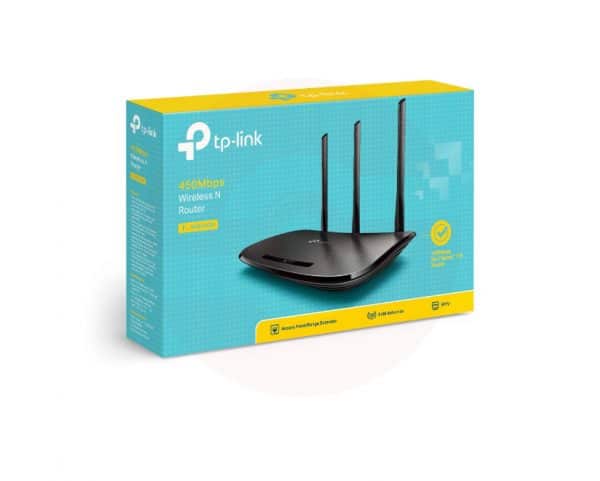

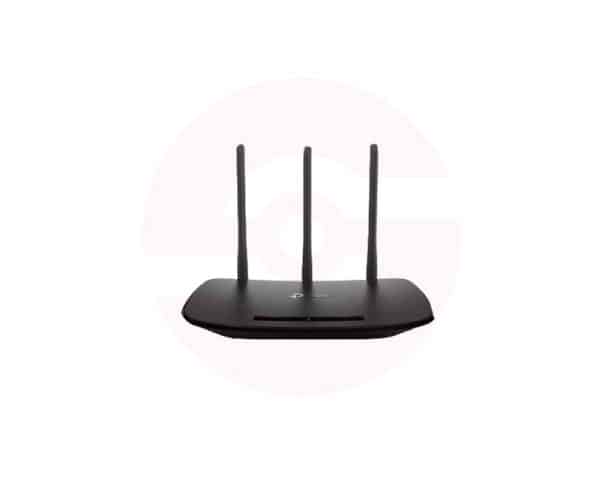

(230 × 144 × 35mm)Package Contents Wi-Fi Router TL-WR940N
Power Adapter
RJ45 Ethernet Cable
Quick Installation GuideOTHER System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
Certifications FCC, CE, RoHS Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensingTEST DATA WiFi Transmission Power CE:
<20dBm(2.4GHz)
FCC:
<30dBmWiFi Reception Sensitivity 450M: -68dBm@10% PER
216M: -70dBm@10% PER
130M: -78dBm@10% PER
54M: -74dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -93dBm@8% PER
