HARDWARE FEATURES Interface 3 10/100Mbps LAN Ports, 1 10/100Mbps LAN/WAN Port,
1 Micro SIM Card SlotButton WPS/Reset Button, WiFi On/Off Button, Power On/Off Button External Power Supply(EU) 9V/0.85A External Power Supply(APAC) 12V/1A Dimensions ( W x D x H ) 7.95 x 5.55 x 1.32 in. (202 x 141 x 33.6 mm) Antenna Type V3/APAC: 2 Internal 4G LTE Antennas
V4/V2/V1: 2 Detachable 4G LTE AntennasWIRELESS FEATURES Wireless Standards IEEE 802.11b/g/n 2.4GHz Frequency 2.4GHz Signal Rate 300Mbps at 2.4GHz Reception Sensitivity 11g 54M: -74dBm
11n HT20: -71dBm
11n HT40: -67dBmTransmit Power CE: <20dBm(2.4GHz) Wireless Functions Enable/Disable Wireless Radio, WMM,
Wireless StatisticsWAN Failover Yes Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions Network Type 4G: FDD-LTE B1/B3 /B7/B8 /B20
(2100/1800/2600/900/800MHz)
TDD-LTE B38/B40/ B41 *
(2600/2300/2500 MHz)
3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/ B8 (2100/900MHz)
* B41 support narrow band of 2555-2655MHzSOFTWARE FEATURES Operating Modes 3G/4G Router, Wireless Router Management Access Control, Local Management, Remote Management
reboot scheduleWAN Connection Type Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) DHCP Server, Client, DHCP Client List, Address Reservation Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ Dynamic DNS DynDns, NO-IP VPN PPTP VPN, IPSec VPN , OpenVPN Access Control Parental Control, Local Management Control Firewall Security DoS, SPI Firewall, IP Address Filter/Domain Filter,

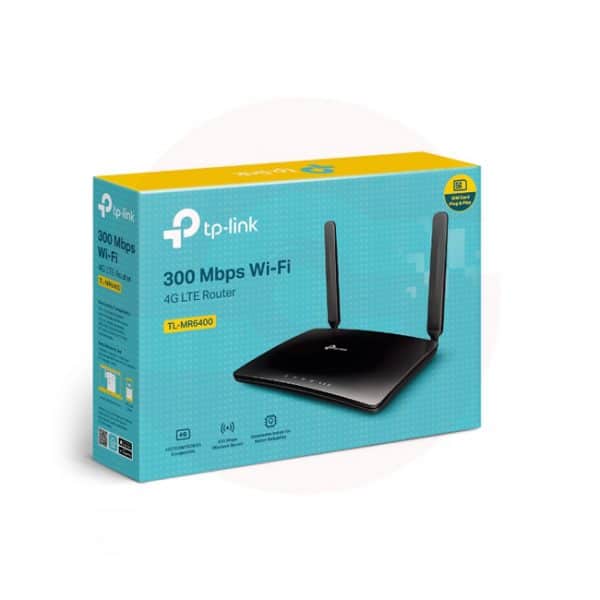

IP and MAC Address BindingProtocols Supports IPv4 and IPv6 Guest Network 2.4GHz guest network x 1 OTHERS Certification CE, RoHS Package Contents 300Mbps Wireless N 4G LTE Router, TL-MR6400
RJ45 Ethernet Cable
Power Adapter
Quick Installation GuideSystem Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10
MAC OS, NetWare, UNIX or LinuxInternet Explorer 11, Firefox 12.0, Chrome 20.0,
Safari 4.0 browsers or higher, or other Java-enabled browsers
Micro SIM CardEnvironment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
