Name: Tenda S108
SKU: TendaS108
Availability: InStock

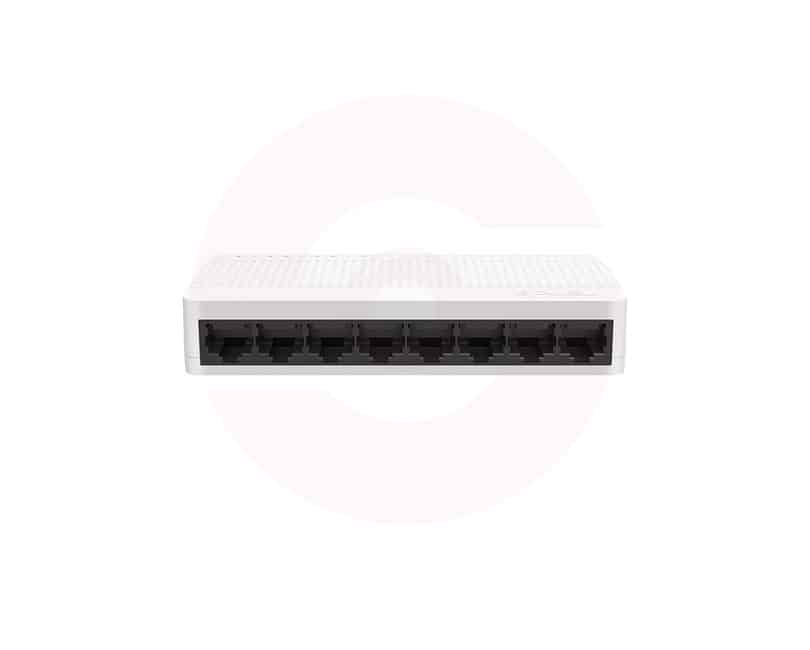

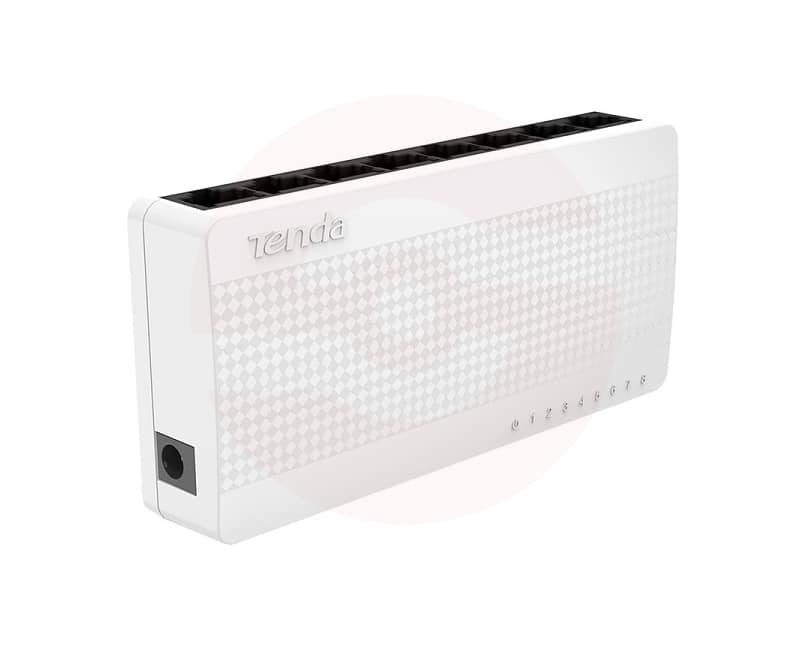

Tenda S108

8-port Ethernet Switch

8*10/100 Mbps auto-negotiation RJ45 ports obtains the fastest possible connection
Compliant with IEEE802.3，IEEE802.3u，IEEE802.3X standard
8* LED indicators display the connection status
Supports 10/100M full duplex and half duplex
Store-and-forward mode
Supports MAC address auto learning and auto aging
Supports to connect with IP-camera
Plug-and-play without configuration
Supports wall-mounting and desktop installation Energy saving technologies help you save power and money

Hardware

Network standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x

LED Indicator 1* Power, 8* Link/Act

Interfaces 8*10/100 Base-TX Ethernet ports (Auto MDI/MDIX)

Transmission media

Recommended: CAT5/5e UTP or better

Fan quantity N/A

Dimension 124.0mmx59.0mmx23.1mm

Material Plastic

Level of protection

ESD:
Air discharge: ±8kV
Contact discharge: ±6kV

Forwarding mode

Store-and-forward

Switch capacity 1.6Gbps

Packet forwarding rate 1.19Mpps

Buffer 448K

MAC address table 1K

Jombo frame N/A

Power

Input: 100-240V AC 50/60Hz
Output: 5.0V 0.6A ( External Power Adapter )

Power consumption Max:<2.15W

Mounting

Desktop mounting: support
Wall mounting: support
Rack mounting: non-support

Environment

Operating temperature: 0°C – 45℃
Storage temperature: -40°C – 70°C
Operating humidity: (10% – 90%) RH, non-condensing
Storage humidity: (5% – 90%) RH, non-condensing

Certification CE, FCC, RoHS

Software

Protocols CDMA/CD

MAC address learning Auto-Learning and Auto-Aging

Functions plug-and-play

Weight

1 kg

Dimensions

10 × 10 × 10 cm
