Tenda S108 ₨2,200.00

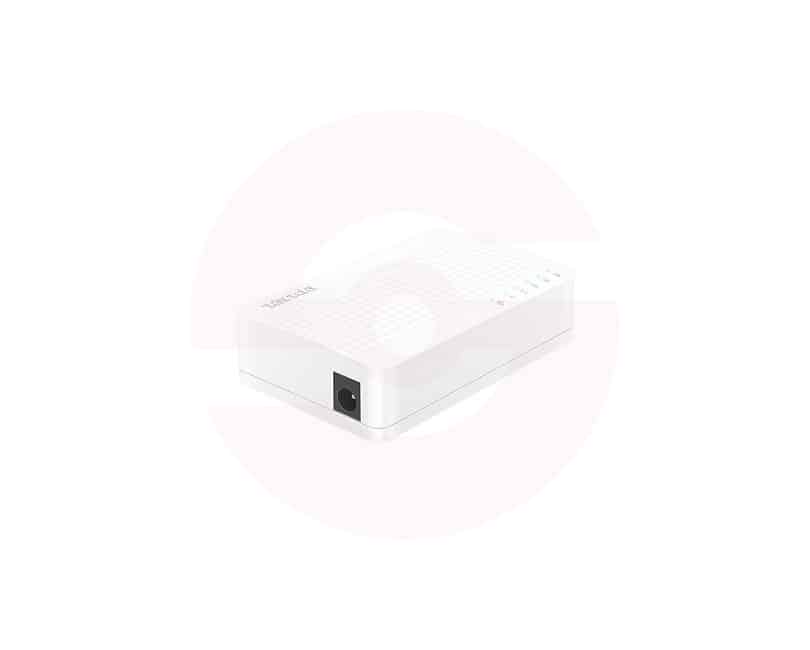

Tenda S105

₨1,800.00

5-port Ethernet Switch

5*10/100 Mbps auto-negotiation RJ45 ports obtains the fastest possible connection
Compliant with IEEE802.3，IEEE802.3u，IEEE802.3X standard
5* LED indicators display the connection status
Supports 10/100M full duplex and half duplex
Store-and-forward mode
Supports MAC address auto learning and auto aging
Supports to connect with IP-camera
Plug-and-play without configuration
Supports wall-mounting and desktop installation Energy saving technologies help you save power and money

Compare

Add to wishlist

SKU: TendaS105 Categories: Network Switches, Tenda

Description
Additional information
Reviews (0)

Description

Hardware

Network standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x

LED Indicator 1* Power, 5* Link/Act

Interfaces 5*10/100 Base-TX Ethernet ports (Auto MDI/MDIX)

Transmission media

Recommended: CAT5/5e UTP or better

Fan quantity N/A

Dimension 82.0mmx52.0mmx22.3mm

Material Plastic

Level of protection

ESD:
Air discharge: ±8kV
Contact discharge: ±6kV

Forwarding mode

Store-and-forward

Switch capacity 1.0Gbps

Packet forwarding rate 0.74Mpps

Buffer 448K

MAC address table 1K

Jombo frame N/A

Power

Input: 100-240V AC 50/60Hz
Output: 5.0V 0.6A ( External Power Adapter )

Power consumption Max:<1.6W

Mounting

Desktop mounting: support
Wall mounting: support
Rack mounting: non-support

Environment

Operating temperature: 0°C – 45℃
Storage temperature: -40°C – 70°C
Operating humidity: (10% – 90%) RH, non-condensing
Storage humidity: (5% – 90%) RH, non-condensing

Certification CE, FCC, RoHS

Software

Protocols

CDMA/CD MAC address learning

Auto-Learning and Auto-Aging

Functions plug-and-play
