- Video And Audio
- IP Video Input
64-ch Up to 12 MP resolution
*: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled. For DS-9632NI-I16, when ultra HD resolution mode is enabled, it will reduce the IP video input to 24-ch.
- Incoming Bandwidth 320 Mbps
- Outgoing Bandwidth 256 Mbps
- Incoming Bandwidth (RAID Mode)200 Mbps
- Outgoing Bandwidth (RAID Mode)200 Mbps
- HDMI 1 Output 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- HDMI 2 Output 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA 1 Output 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA 2 Output 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- Video Output Mode
HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output;
HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output
- CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ)
- Audio Output 2-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 k Ω)
- Decoding
- Decoding FormatH.265/H.265+/H.264/H.264+/MPEG4
- Recording Resolution
32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF /2CIF/CIF/QCIF
*: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled. For DS-9632NI-I16, when ultra HD resolution mode is enabled, it will reduce the IP video input to 24-ch.
- Synchronous Playback 16-ch
- Decoding Capability 1-ch@32 MP (30 fps)/2-ch@12 MP (20fps)/4-ch@8 MP (25fps)/8-ch@4 MP (30fps)/16-ch@1080p (30fps)
- Dual-Stream Recording Support
- Stream Type Video, Video & Audio
- Audio Compression G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
- Network
- Remote Connection 128
- Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- RAID
- RAID TypeRAID0, RAID1, RAID5, RAID6, and RAID10 (at least 4 TB for each HDD)
- Auxiliary Interface
- Serial Interface 1 RS-485 (full-duplex), 1 RS-232, 1 keyboard
- SATA 16 SATA interfaces supporting hot-plug
- ESATA 1 eSATA interface
- Capacity Up to 10TB capacity for each disk
- Alarm In/Out16/8
- USB Interface Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
- General
- Power Supply 100 to 240 VAC, 50 to 60 Hz
- Consumption ≤ 45 W
- Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity 10 to 90 %

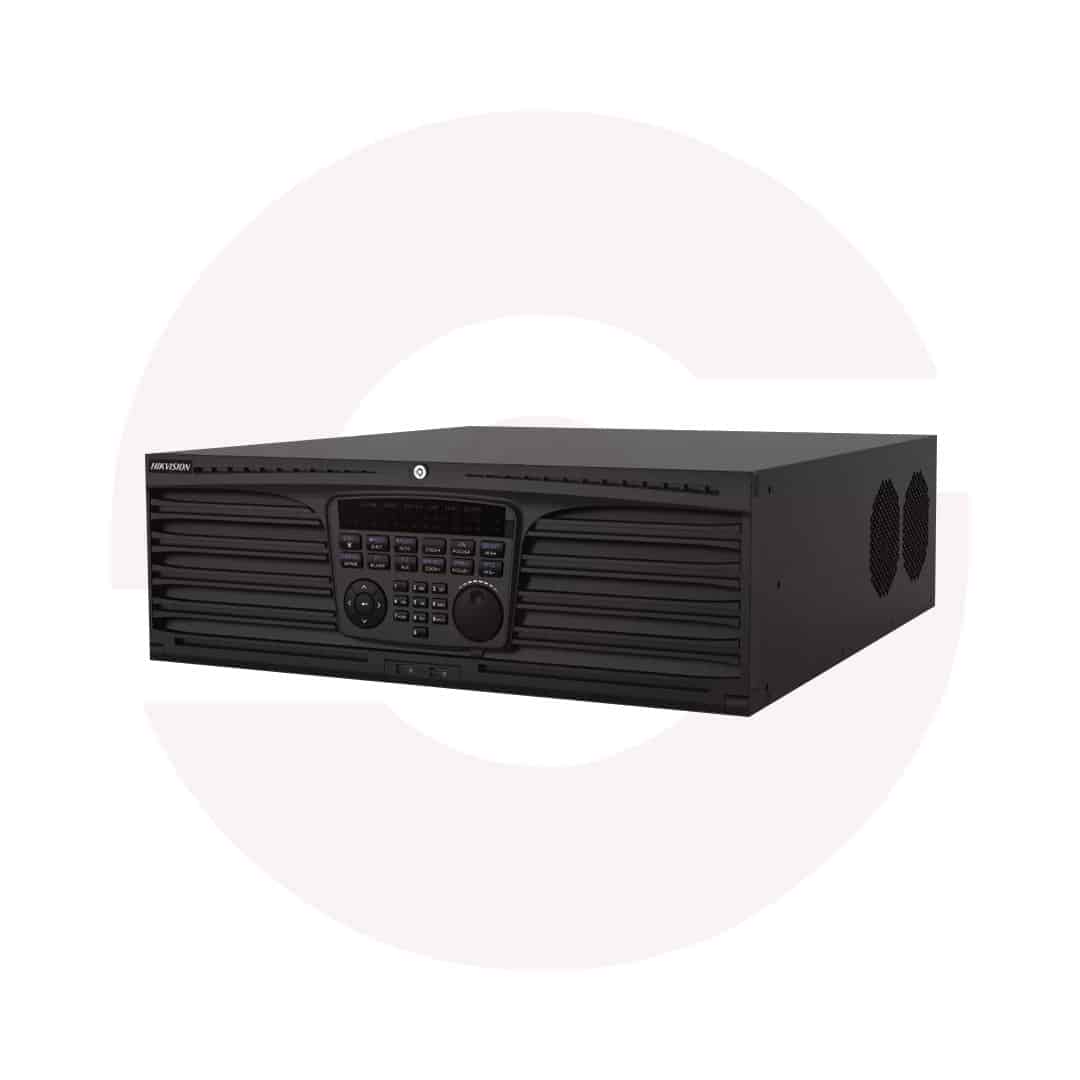

- Chassis 3U chassis
- Dimension (W × D × H)445 × 496 × 146 mm (17.5″ × 19.5″ × 5.7″)
- Weight ≤ 12.5 kg (27.6 lb)
- Certification
- FCC Part 15 Subpart B, ANSI C63.4-2014
- CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
