| SECURITY | |
|---|---|
| Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
| Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
| VPN Server | OpenVPN PPTP |
| WiFi Encryption | WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x) |
| WIRELESS | |
|---|---|
| Standards | Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds | AX1800 5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 574 Mbps (802.11ax) |
| WiFi Range | 2-3 Bedroom Houses 4× Fixed High-Performance Antennas Beamforming |
| WiFi Capacity | High Dual-Band Airtime Fairness 4 Streams |
| Working Modes | Router Mode Access Point Mode |
| HARDWARE | |
|---|---|
| Processor | Dual-Core CPU |

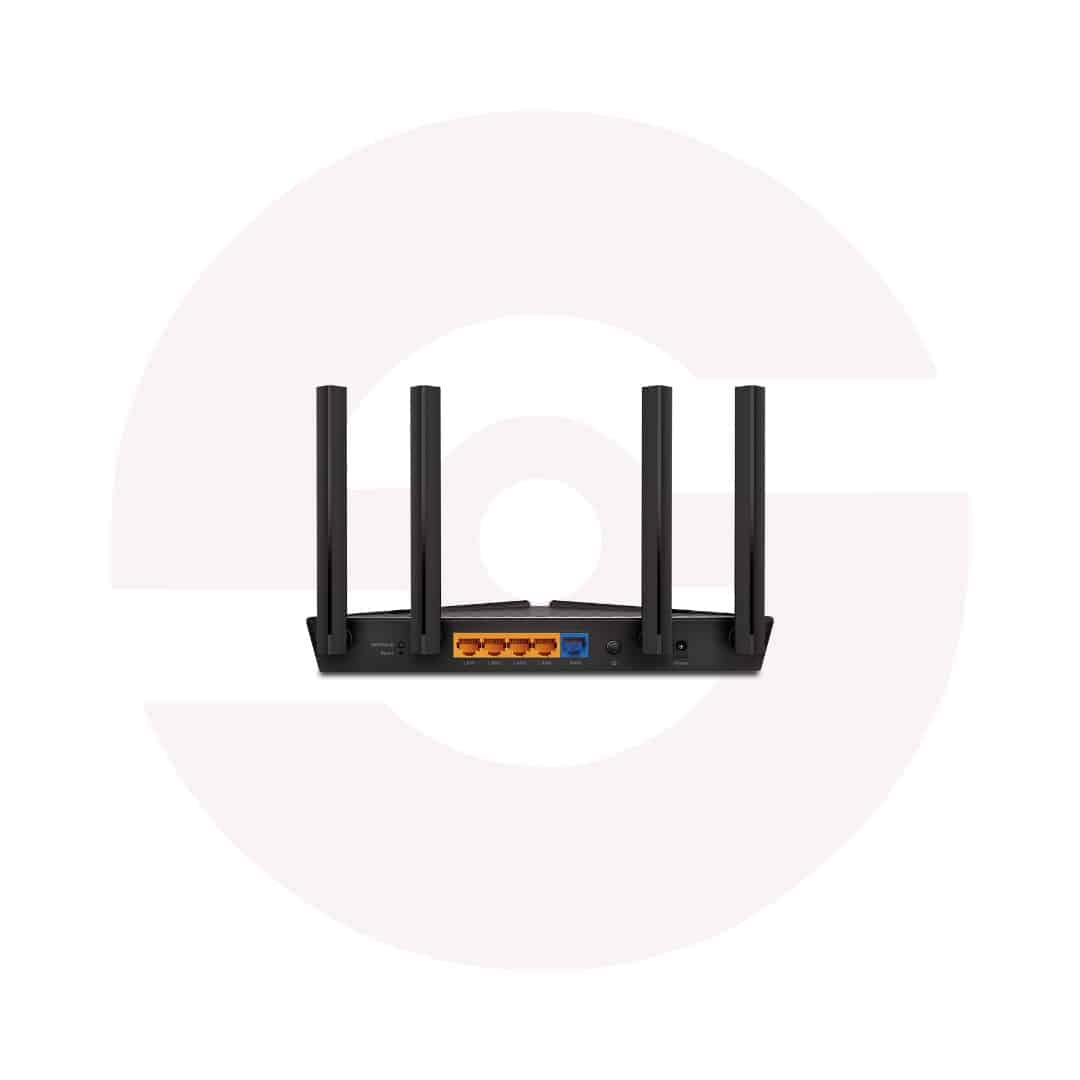

| Ethernet Ports | 1× Gigabit WAN Port 4× Gigabit LAN Ports |
| Buttons | WPS/Wi-Fi Button Power On/Off Button Reset Button |
| Power | 12 V ⎓ 1 A |
| SOFTWARE | |
|---|---|
| Protocols | IPv4 IPv6 |
| OneMesh™ | OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. |
| EasyMesh | Mesh networking creates smooth, fast, stable roaming. Archer AX23 can flexibly build an EasyMesh network with EasyMesh-Compatible devices, which eliminates Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Seamless Wi-Fi connections with one network name, one-click setting and flexible scalability. |
| Parental Controls | URL Filtering Time Controls |
| WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | OTA Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding | Port Forwarding Port Triggering DMZ UPnP |
| IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | TP-Link NO-IP DynDNS |
| Management | Tether App Webpage |
| OTHER | |
|---|---|
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | FCC, CE, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| TEST DATA | |
|---|---|
| WiFi Transmission Power | CE: <20dBm(2.4 GHz) <23dBm(5.15 GHz~5.25 GHz) FCC: <30dBm(2.4 GHz & 5.15 GHz~5.825 GHz) |
| WiFi Reception Sensitivity | EU Version 5G 11a 6Mbps: -96dbm 11a 54Mbps:-75dbm 11ac VHT20_MCS0: -95dbm 11ac VHT20_MCS8: -71dbm 11ac VHT40_MCS0: -92dbm 11ac VHT40_MCS9: -66dbm 11ac VHT80_MCS0: -89dbm 11ac VHT80_MCS9:-62dbm 11ax HE20_MCS0:-95dbm 11ax HE20_MCS11: -64dbm 11ax HE40_MCS0: -92dbm 11ax HE40_MCS11: -60dbm 11ax HE80_MCS0: -89dbm 11ax HE80_MCS11:-59dbm2.4G 11g 6Mbps:-96dbm 11g 54Mbps:-75dbm 11n HT20_MCS0:-95dbm 11n HT20_MCS7:-75dbm 11n HT40_MCS0:-92dbm 11n HT40_MCS7: -72dbm 11ac VHT20_MCS0:-95dbm 11ac VHT20_MCS8:-72dbm 11ac VHT40_MCS0:-92dbm 11ac VHT40_MCS9: -67dbm 11ax HE20_MCS0:-95dbm 11ax HE20_MCS11: -65dbm 11ax HE40_MCS0: -92dbm 11ax HE40_MCS11: -62dbmUS Version 5G 11a 6Mbps: -96dbm 11a 54Mbps:-75dbm 11ac VHT20_MCS0: -95dbm 11ac VHT20_MCS8: -71dbm 11ac VHT40_MCS0: -92dbm 11ac VHT40_MCS9: -66dbm 11ac VHT80_MCS0: -89dbm 11ac VHT40_MCS9:-62dbm 11ax HE20_MCS0:-95dbm 11ax HE20_MCS11: -64dbm 11ax HE40_MCS0: -92dbm 11ax HE40_MCS11: -60dbm 11ax HE80_MCS0: -89dbm 11ax HE80_MCS11:-59dbm2.4G 11g 6Mbps:-96dbm 11a 54Mbps:-75dbm 11ac VHT20_MCS0:-95dbm 11ac VHT20_MCS8:-72dbm 11ac VHT40_MCS0:-92dbm 11ac VHT40_MCS9: -67dbm 11ax HE20_MCS0:-95dbm 11ax HE20_MCS11: -65dbm 11ax HE40_MCS0: -92dbm 11ax HE40_MCS11: -62dbm |
| PHYSICAL | |
|---|---|
| Dimensions (W×D×H) | 10.2 × 5.3 ×1.5 in (260.2 × 135.0 × 38.6 mm) |
| Package Contents | Wi-Fi Router Archer AX23 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
