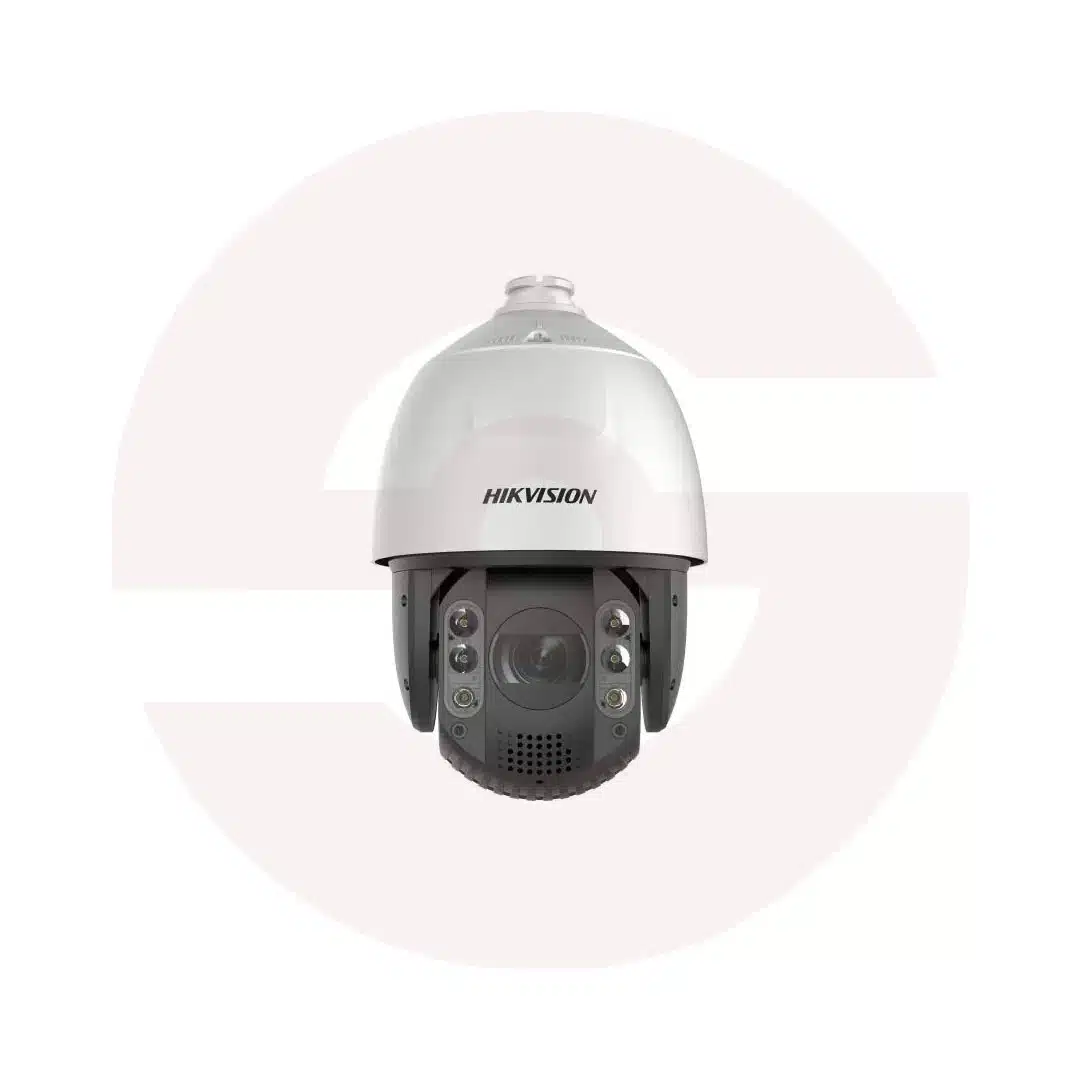

Hikvision DS-2DE7A825IW-AEB(T5)

1/1.8″ progressive scan CMOS
High quality imaging with 8 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Audio visual alarm: The white flashing light and audible warning can be triggered by certain events
25× optical zoom and 16× digital zoom provide close up views over expansive areas
Expansive night view with up to 200 m IR distance
Focuses on human and vehicle targets classification based on deep learning
Face capture: Up to 5 faces captured at the same time

Camera
Image Sensor 1/1.8″ progressive scan CMOS
Max. Resolution 3840 × 2160
Min. Illumination Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux@(F1.5, AGC ON), 0 Lux with IR
Shutter Speed 1/1 s to 1/30000 s
Slow Shutter Yes
Day & Night IR cut filter
Zoom 25x optical, 16x digital
DORI
Detect (25px/m): 2046.9 m
Observe (63px/m): 812.3 m
Recognize (125px/m): 409.4 m
Identify (250px/m): 204.7 m

Lens
Focal Length 5.9 mm to 147.5 mm
Zoom Speed Approx. 4.8 s
FOV
Horizontal field of view: 50.8° to 2.6° (wide-tele),
Vertical field of view: 29.4° to 1.5° (wide-tele),
Diagonal field of view:57.4° to 3° (wide-tele)
Aperture Max. F1.5
Focus Auto, semi-auto, manual, rapid focus

PTZ
Movement Range (Pan) 360°
Movement Range (Tilt) -15° to 90° (auto flip)
Pan Speed Pan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s
Tilt Speed Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
Proportional Pan Yes
Presets 300
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans
Power-Off Memory Yes
Park Action Preset, pattern scan, auto scan, tilt scan, random scan, frame scan, panorama scan
3D Positioning Yes
PTZ Status Display Yes
Preset Freezing Yes
Scheduled Task Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output

Video
Main Stream
50 Hz: 25 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);
60 Hz: 24 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);
60 Hz: 24 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);
60 Hz: 24 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG
Video Bit Rate 32 kbps to 16384 kbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region Of Interest (ROI)8 fixed regions for each stream

Audio
Audio Compression G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM
Audio Bit Rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/16-64 Kbps (AAC)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering Yes

Network
Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
API Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
Simultaneous Live ViewUp to 20 channels
User/Host Up to 32 users, 3 user levels: administrator, operator, and user
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
Client iVMS-4200, HikCentral Pro, Hik-Connect
Web BrowserIE11, Chrome 57+, Firefox 52+, Safari 11+

Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Wide Dynamic Range (WDR)120 dB
Defog Digital defog
Image Stabilization EIS
Regional Exposure Yes
Regional Focus Yes
Image Settings Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Privacy Mask 24 programmable polygon privacy masks, mask color or mosaic configurable
SNR> 52 dB

Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Alarm 2 inputs, 1 output
Audio 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
Reset Yes
Built-In Speaker 1 built-in speaker with effective distance reaching max. 30 meters

Event
Basic Event Motion detection, video tampering alarm, exception, alarm input and output
Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
Smart Tracking Manual tracking, auto-tracking
Alarm Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)

Deep Learning Function
Face Capture
Detects up to 5 faces simultaneously.
Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)

General
Power
24 VAC, max. 42 W (including max. 18 W for IR and max. 10 W for heater);
Hi-PoE
Operating Condition -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
Demist Yes
Material ADC12
Dimension Ø 220 mm × 363.3 mm (Ø 8.66″ × 13.91″)
Weight Approx. 5 kg (11.03 lb.)

Approval
Protection IP66 (IEC 60529-2013), IK10 (excluding glass window), TVS 6000V lightning protection, surge protection and voltage transient protection
EMCUL (UL 62368-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 62368-1:2014+A11:2017); BIS (IS 13252 (Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
Safety UL (UL 62368-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 62368-1:2014+A11:2017); BIS (IS 13252 (Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
