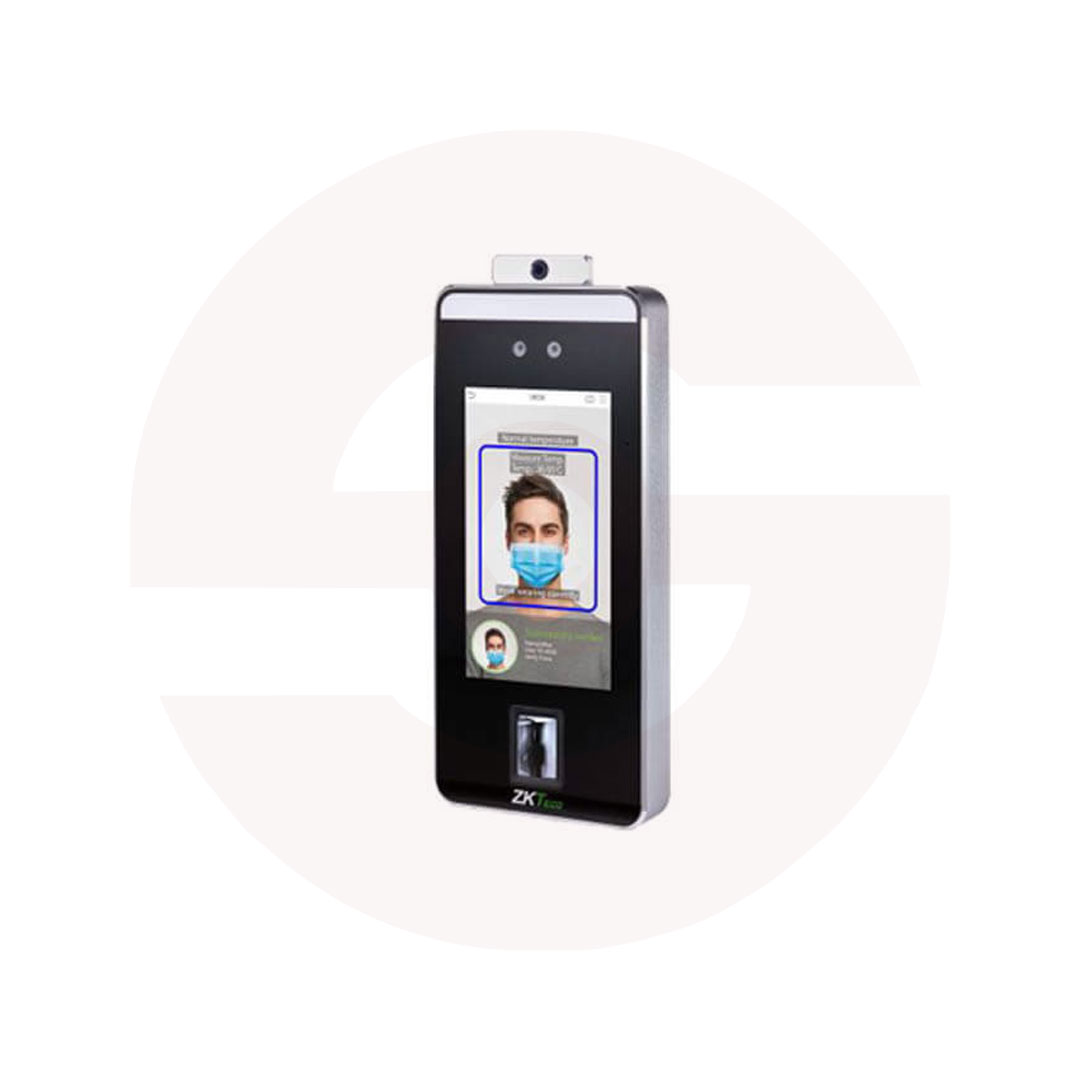

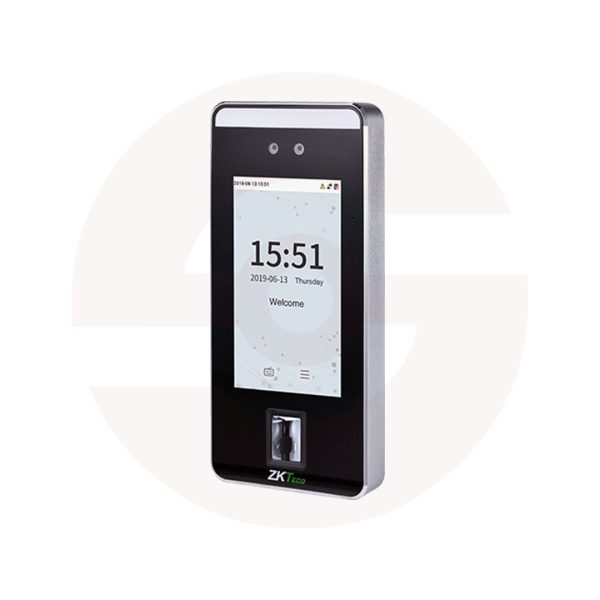

ZKTeco SpeedFace-V5L

Parameters

• Model

  SpeedFace-V5L; SpeedFace-V5L[TD]; SpeedFace-V5L[TI]

• Display

  5″@ ISP Color LCD Screen (720*1280)

• Camera

  WDR Low Light Camera @ 2MP

• Operation System

  Linux

• Hardware

  CPU: 1.GHz Dual Core
  RAM: 1GB; ROM: 8GB
  Supplement Light: Yes
  Virtual Keypad: 12 Keys
  Fingerprint Sensor: Z-ID

• Authentication Method

  Face / Fingerprint / Palm (Customized) / Card / Password (Virtual Keypad)

• Fingerprint Template Capacity

  6,000 (1:N) (Standard) / 10,000 (1:N) (Optional) / 6,000 (1:1)

• Face Template Capacity

  6,000 (1:N) (Standard) / 10,000 (1:N) (Optional) / 6,000 (1:1)

• Palm Template Capacity

  【Customized】 3,000 (1:N) (Standard) / 3,000 (1:1)

• Card Capacity

  10,000 (1:N) (Optional) / 10,000 (1:1)

• Transaction Capacity

  200,000 (1:N) (Optional for Capacity Expansion)

• Biometric Verification Speed

  less than 0.3 sec (Fingerprint)
  less than 1 sec (Facial Recognition)
  less than 0.35 Sec (Palm)

• Touchless Biometric Recognition Distance

  1cm to 100cm (Facial Recognition)
  Up to 50cm(Palm)

• False Acceptance Rate (FAR) %

  FAR ≤ 0.01% ( Visible Light Facial Recognition)
  FAR ≤ 0.0001% ( Fingerprint ; ZKFingerprint V10.0)
  FAR ≤ 0.05% (ZKPalm V12.0)

• False Rejection Rate (FRR) %

  FRR ≤ 0.02% ( Visible Light Facial Recognition)
  FRR ≤ 0.01% ( Fingerprint : ZKFingerprint V10.0)
  FRR ≤ 1.8% ( ZKPalm V12.0)

• Biometric Algorithm

  ZKFace 3.5
  ZKPalm V12.0 (Customized)
  ZKFingerprint V10.0

• Card Type

  ID Card@125 kHz (Optional)
  IC Card@13.56 MHz (Optional)
  CEPAS(Optional)

• QR Code

  Dynamic or Static QR codes on the ZKBioSecurity mobile application. QR code, PDF417, Data Matrix, MicroPDF417 and Aztec scanning in third-party development projects(Support QR500/600 Series).

• Communication

  TCP/IP*1
  Wiegand (Input & Output)*1
  RS485: ZKTeco RS485*1*
  Aux Inputs *1, Aux Outputs *1, Electric Lock*1, Door Sensor*1, Exit Button*1, Alarm*1, Doorbell*1

• Standard Functions

  ADMS, T9 Input, DST, 14-digit User ID, Access Levels, Groups, Holidays, Anti-passback,
  Record Query, Tamper Switch Alarm, Multiple Verification Methods

• Power Supply

  DC 12V 3A

• Operating Temperature

  -10°C ~ 45°C (14°F ~ 113°F)

• Operating Humidity

  10% to 90% RH (Non-condensing)

• Dimensions

  91.93mm * 202.93mm * 21.5mm (L*W*H)

• Gross Weight

  1.3 Kg

• Net Weight

  0.6 Kg

• Supported Software

  Software: ZKBio CVAccess / ZKBioTalk
  Mobile App: ZKBio Zlink / ZSmart
  Cloud Service: ZKBio Zlink

• Installation

  Wall-mount (Compatible with Asian Gang-box / Single Gang-Box)

• Certifications

  ISO14001, ISO9001, CE, FCC
