Ubiquiti airFiber 5XHD
Ubiquiti airFiber 5XHD
Back to products
Next product
Ubiquiti airFiber 5G34-S45
Ubiquiti airFiber 5G34-S45

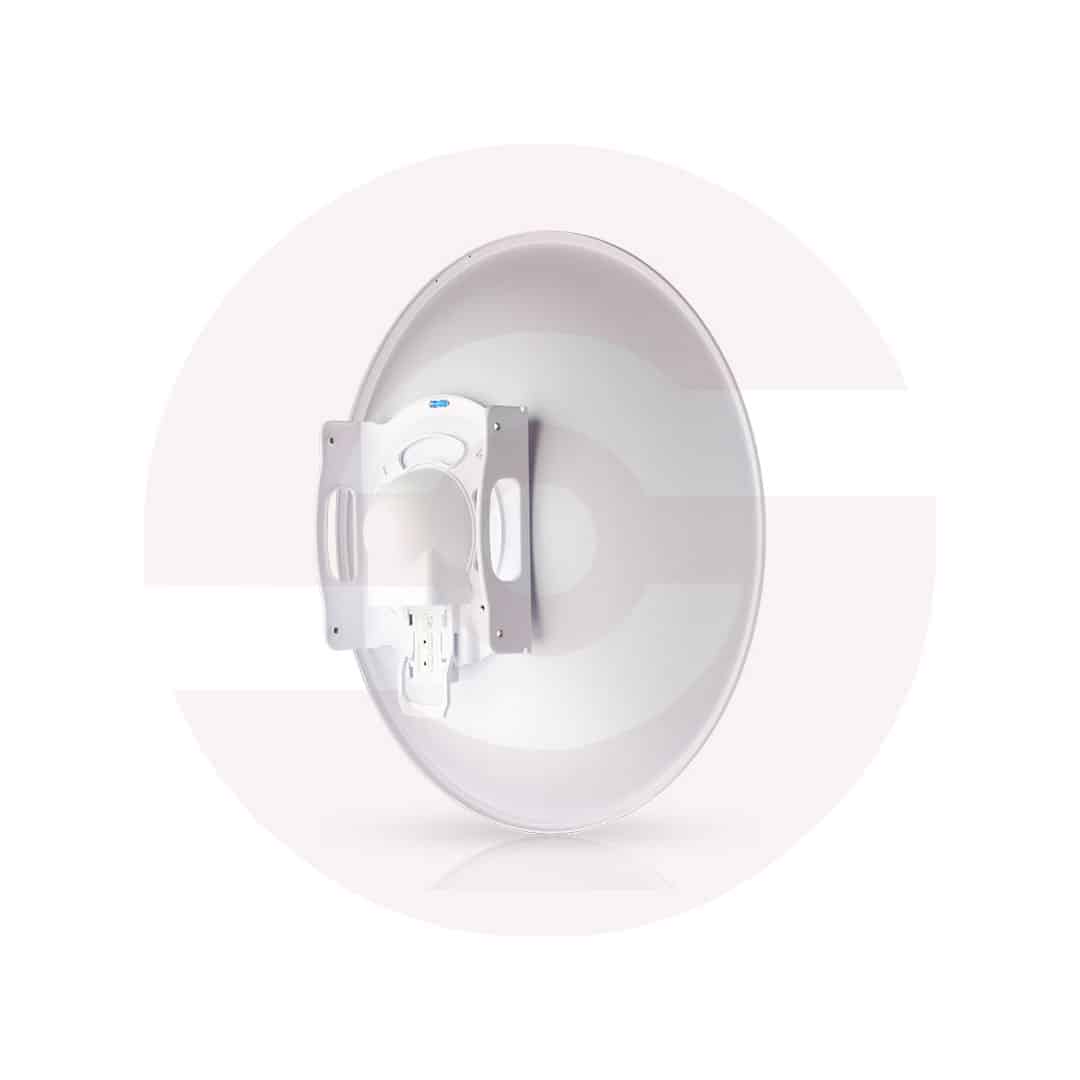

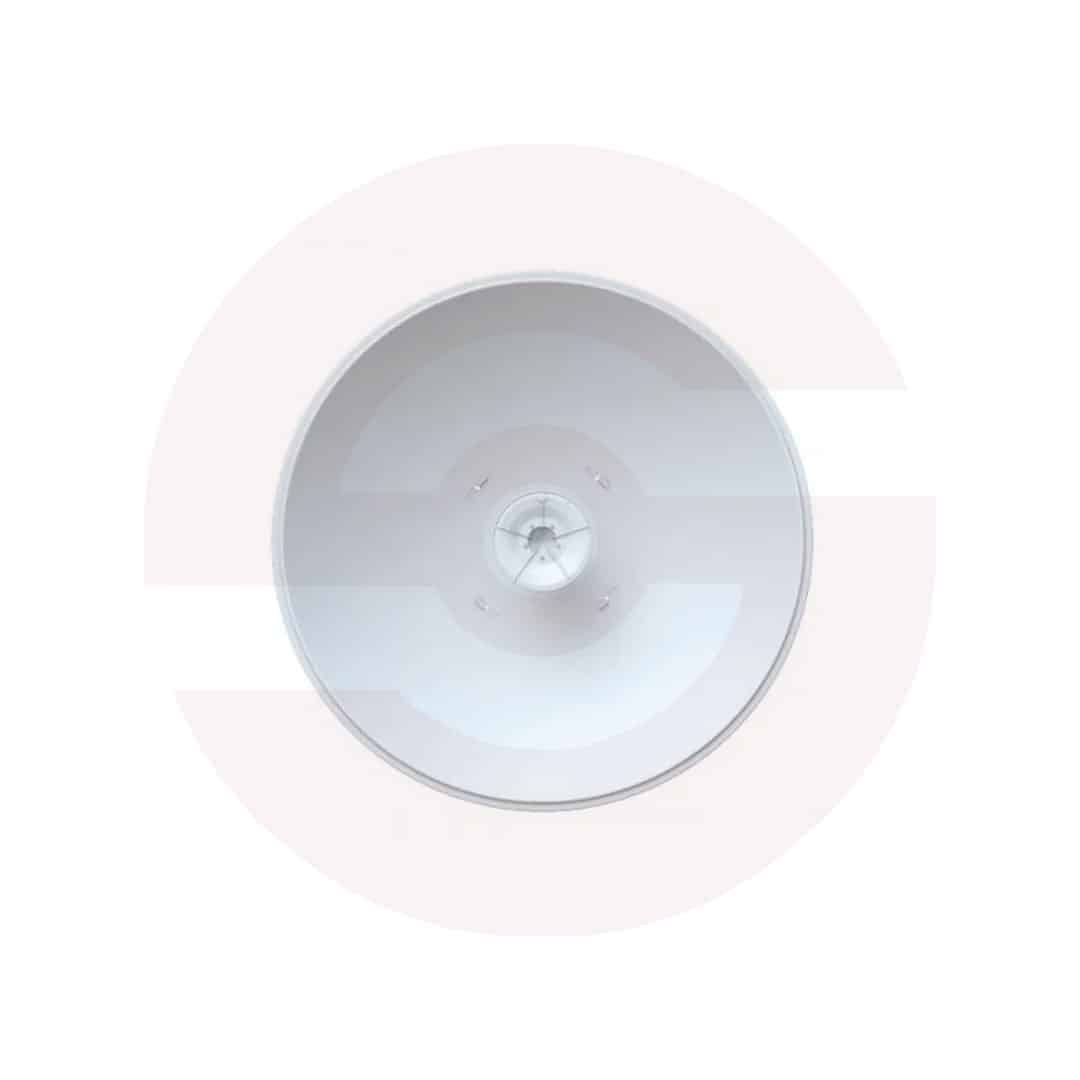

Ubiquiti airFiber 5G30-S45

5 GHz, 30 dBi antenna ideal for long range Point-to-Point (PtP) links.

  • 2×2 dual-polarity performance
  • Robust mechanical design for outdoor application use
  • Secure pole-mounting
  • Compatible with airFiber X radios
Compare
Add to wishlist
SKU: AF-5G30-S45 Categories: , ,
Description

Dimensions 650 x 650 x 386 mm (25.6 x 25.6 x 15.2″)

Weight With Mount: 7.4 kg (16.31 lb)

Frequency5.1 – 5.9 GHz

Gain 30 dBi

Max. VSWR 1.6:1

Wind Survivability 200 km/h (125 mph)

Wind Loading 790 N @ 200 km/h (178 lbf @ 125 mph)

Polarization Dual Linear

F/B Ratio 30 dB

ETSI Specification EN 302 326 DN2

Mounting Universal Pole Mount, airFiber Radio Bracket, and Weatherproof RF Jumpers Included

Additional information
Weight1 kg
Dimensions10 × 10 × 10 cm
