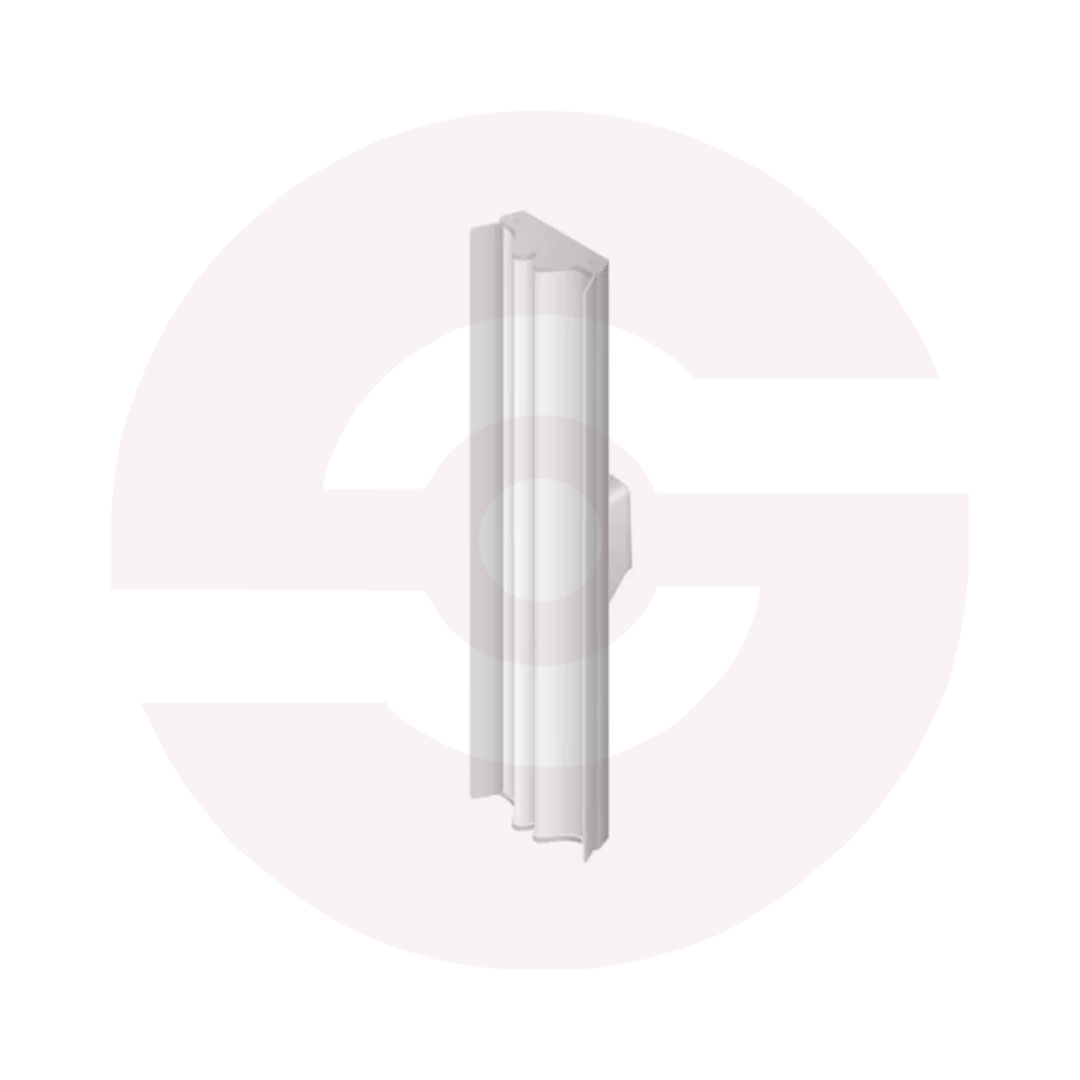

Ubiquiti airMAX-5AC21-60 Sector Antenna
5 GHz, 60º, 21 dBi BaseStation sector antenna for Point‑to‑MultiPoint (PtMP) networks.
- 2×2 dual-polarity performance
- Robust mechanical design for outdoor application use
- Compatible with Rocket Prism 5AC
10
People watching this product now!
Description
| AM-5AC21-60 | |
|---|---|
| Dimensions | 750 x 173 x 78 mm (29.5 x 6.8 x 3″) |
| Weight | 4.8 kg (10.6 lb) |
| Frequency Range | 5.10 – 5.85 GHz |
| Gain | 21 dBi |
| HPOL Beamwidth | 60° (6 dBi) |
| VPOL Beamwidth | 60° (6 dBi) |
| Electrical Beamwidth | 4° |
| Electrical Downtilt | 2° |
| Max. VSWR | 1.5:1 |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 391 N @ 200 km/h (88 lbf @ 125 mph) |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 25 dB Min. |
| ETSI Specification | EN 302 326 DN2 |

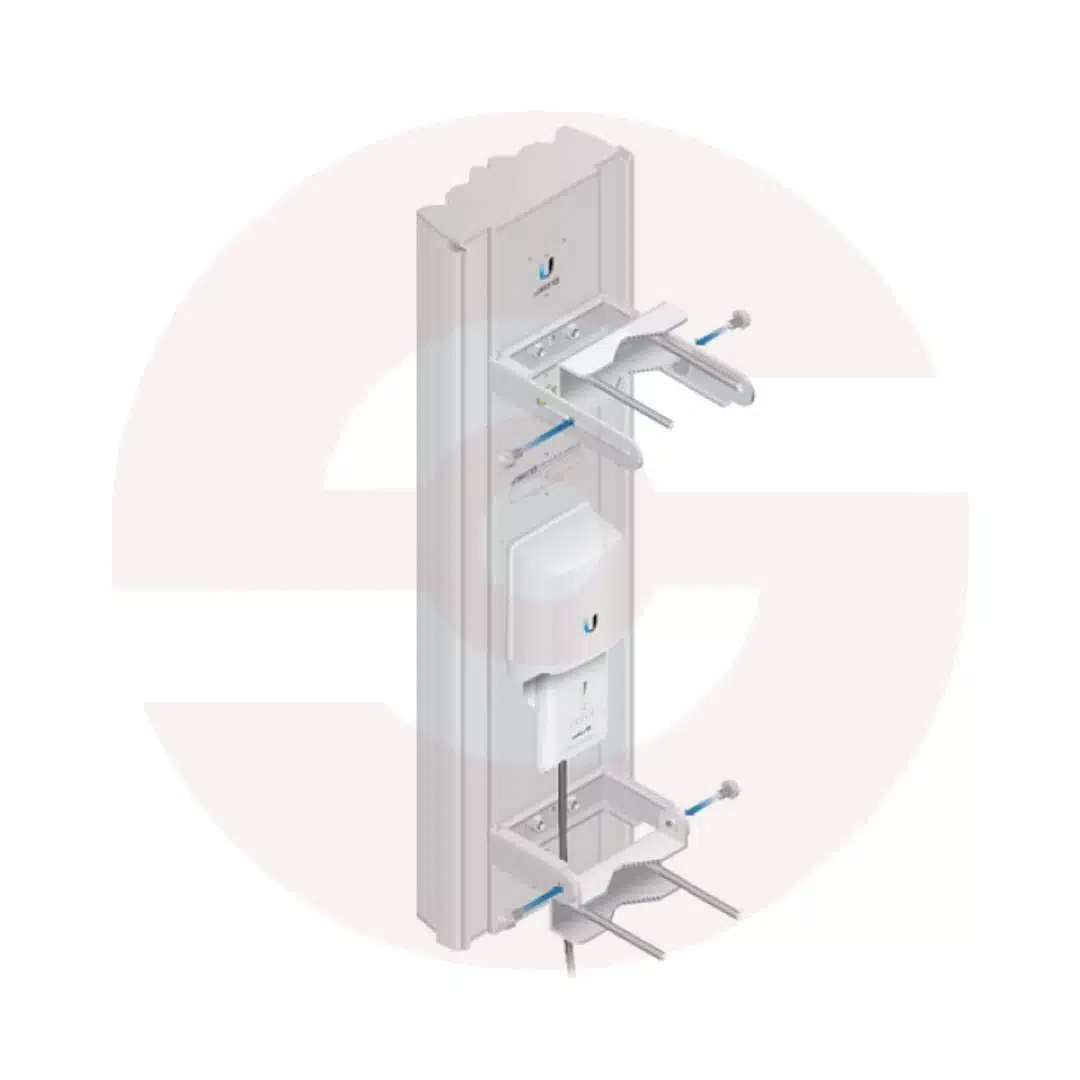

| Mounting | Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included |
