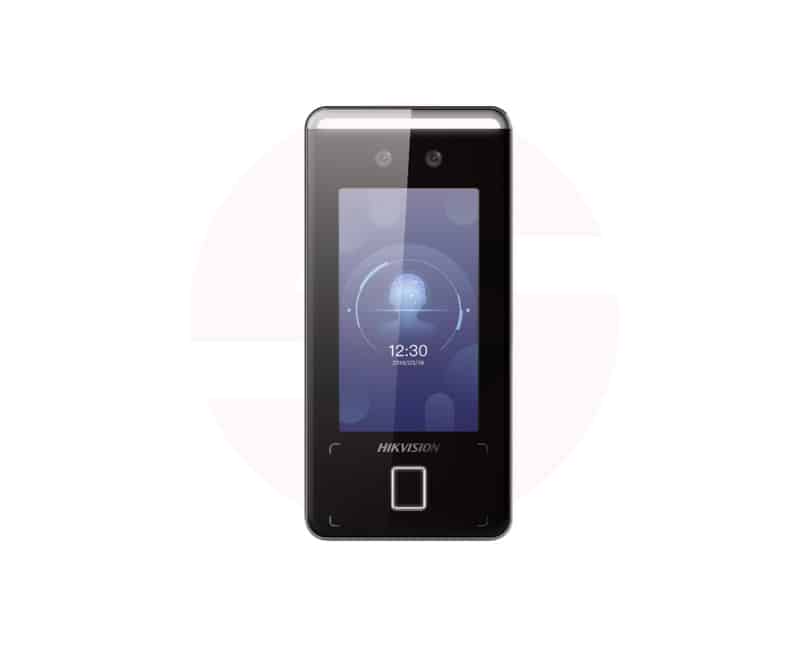

Hikvision DS-K1T341AMF
Value Series Face Access Terminal
- Face mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance is valid
- Forced mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance will be failed
- Max.3000 faces capacity, Max.3000 fingerprints capacity, and Max.3000 cards
- Face Recognition Terminal, 4.3-inch LCD touch screen,2 Mega pixel wide-angle lens,Built-in Mifare card reading module
- Two-way audio with client software, indoor station, and main station
- Supports TCP/IP
- Supports ISUP5.0, ISAPI
- Configuration via the web client
- Face Recognition Distance: 0.3 m to 1.5 m
- Duration ＜ 0.2 s/User
- Accuracy rate ≥ 99%; IP65
DescriptionDisplay
- Dimensions 4.3-inch
- Type LCD
- Operation Method Capacitive touch screen
Audio
- Tone Quality Noise suppression and echo cancellation
- Network
- Wired Network 10 M/100 M/1000 M self-adaptive
- Communication Protocol SDK; ISUP; ISAPI; HTTPS; Hik Central Pro Open API; Hik-Pro Connect Open API
Interface
- Network Interface 1
- RS-485 1
- Wiegand 1
- Lock Output 1
- Exit Button 1
- Door Contact Input 1
- Power Interface 2-pin
Capacity
- Card Capacity 3,000
- Face Capacity 3,000
- Fingerprint Capacity 3,000
- Event Capacity 150,000
Authentication
- Card Type Mi fare 1 card
- Card Reading Frequency 13.56MHz
- Face Recognition Duration ＜ 0.2 s
- Face Recognition Accuracy Rate＞99%
- Face Recognition Distance 0.3 to 1.5 m
- Fingerprint Recognition Duration＜1s
Function
- QR Code Recognition Support
- Face Anti-Spoofing Support
- Audio Prompt Support
- Time Synchronization Support
General
- Button Touch Screen
- Power Supply Method 2 pin connecter
- Working Temperature -30 °C to 60 °C (-22 °F to 140 °F)
- Working Humidity 0 to 90% (No condensing)
- Dimensions 172.5 mm × 83.2 mm × 22.7 mm (6.79″ × 3.27″ × 0.89″)
- Protective Level IP65
- Installation Surface mounting
- Language English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil)
- Platform Hik-Pro Connect and Hik Central Professional
