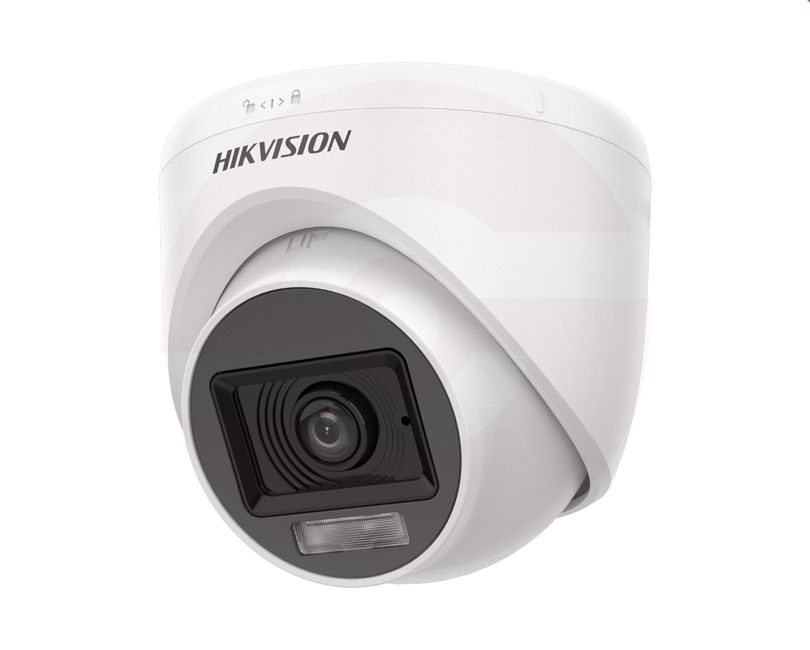

Hikvision DS-2CE76D0T-EXLPF

2MP Smart Hybrid Light Indoor Fixed Turret Camera

Camera
Image Sensor 2 MP CMOS
Max. Resolution 1920 (H) × 1080 (V)
Min. Illumination 0.02 Lux @ (F2.2, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Day & Night ICR
Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 75°, Rotate: 0 to 360°
Signal System PAL/NTSC
Lens
Lens Type 2.8MM fixed focal lens
Focal Length & FOV
2.8 mm, horizontal FOV: 97°, vertical FOV: 54°, diagonal FOV: 113°
Lens Mount M12
Illuminator
Supplement Light Range
IR : Up to 20 m
White Light : Up to 20 m
Supplement Light TypeSmart, IR, White Light

Image Parameters Switch STD/HIGH-SAT/HIGHLIGHT
Image Settings Brightness, Sharpness, Smart IR
Frame Rate
TVI: 1080p @ 30 fps, 1080p @ 25 fps
AHD: 1080p @ 30 fps, 1080p @ 25 fps
CVI: 1080p @ 30 fps, 1080p @ 25 fps
CVBS: PAL/NTSC
Wide Dynamic Range (WDR)Digital WDR
Image Enhancement DWDR/BLC/HLC/Global
White BalanceAuto/Manual
AGC Yes
Day/Night ModeAuto/Color

General
Material Plastic
Dimension Ø 85 mm × 84.6 mm (3.35″ × 3.33″)
Max. 150 g (0.33 lb.)
Operating Condition -40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensation)
Communication HIKVISION-C
Language English
Power Supply
12 VDC ± 25%, Max. 3.5 W
*You are recommended to use one power adapter to supply the power for one camera.
