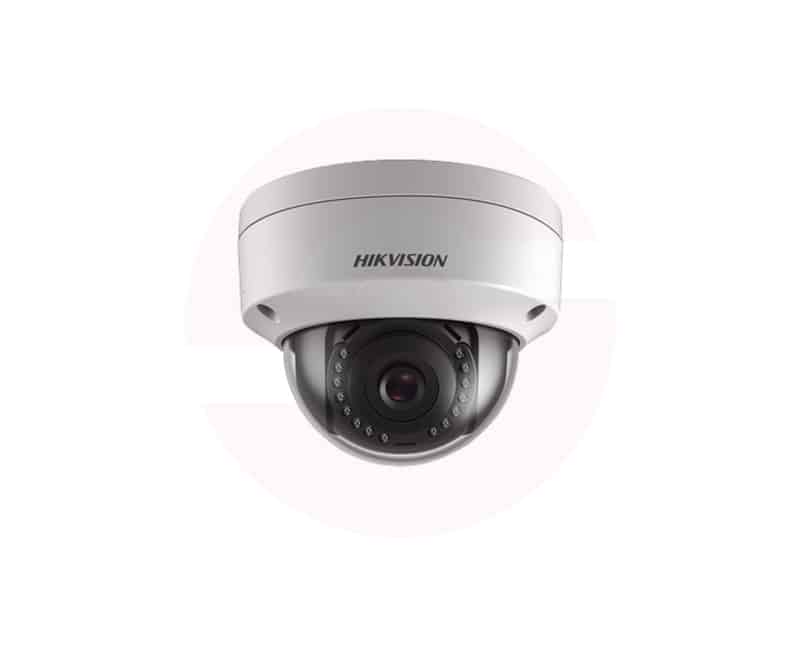

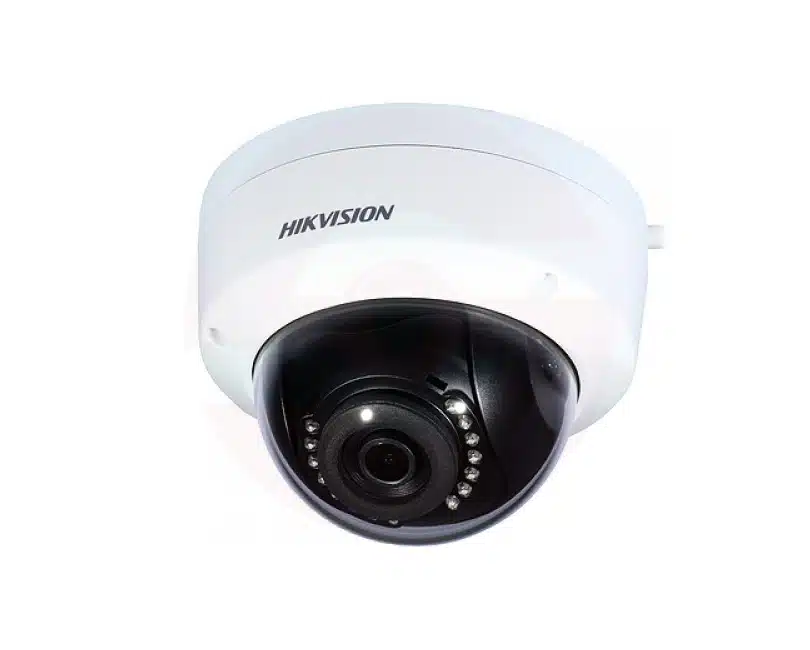

- Camera
- Image Sensor 1/3″ progressive scan CMOS
- Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)
- Shutter Speed 1/3 s to 1/100, 000 s
- Slow Shutter Yes
- Day &Night IR cut filter
- Wide Dynamic Range 120 dB
- Angle Adjustment Pan: 0° to 355°, tilt: 0° to 70°
- DNR 3D DNR
- Lens
- Lens 2.8 mm
- Auto-Iris No
- Aperture F2.0
- Focus No
- FOV 2.8 horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117° vertical FOV 28°, diagonal FOV 58°
- Lens Mount M12
- Illuminator
- IR Range Up to 30 m
- Wave length 850 nm
- Video
- Max. Resolution 2560 × 1440
- Video Compression Main stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG
- H.264 Type Baseline Profile/Main Profile/High Profile
- H.265 Type Main Profile
- Video Bit Rate 32 Kbps to 8 Mbps
- Smart Feature-Set
- Region of Interest 1 fixed region for main stream and sub-stream
- Image
- Image Enhancement BLC, 3D DNR
- Image Setting Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
- Day/Night Switch Auto, scheduled
- Main Stream Max. Frame Rate50Hz: 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720),60Hz: 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
- Sub-stream Max. Frame Rate50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
- Network
- Network Storage NAS (NFS, SMB/CIFS)
- Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
- APIONVIF (PROFILE S, PROFILE G), ISAPI
- Simultaneous Live View Up to 6 channels
- User/Host Up to 32 users,3 levels: Administrator, Operator and User
- ClientiVMS-4200, Hik-Connect, iVMS-5200
- Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
- Alarm Trigger Motion detection, video tampering alarm, illegal login
- Interface
- Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
- General
- Firmware Version 5.5.3
- General Function Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
- Reset Yes
- Startup and Operating Conditions-30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)
- Power Supply 12 VDC ± 25%, 5.5 mm coaxial power plug,PoE (802.3af, class 3)
- Material Metal & Plastic
- Dimensions Camera: Ø 111 mm × 82.4 mm ( 4.4″ × 3.2″),With package: 134 mm × 134 mm × 108 mm (5.3″ × 5.3″ × 4.3″)
- Weight Camera: approx. 410 g (0.9 lb.),With package: approx. 610 g (1.3 lb.)
- Power Consumption and Current12 VDC, 0.4 A, Max: 5 W,PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.13 A, Max: 7 W
- Interface Protection IP67
- Approval
- Impact Protection IK10TVS 2000V lightning protection, surge protection and voltage transient protection
- Compression Standard
- H.264+Main stream supports
- H.265+Main stream supports
