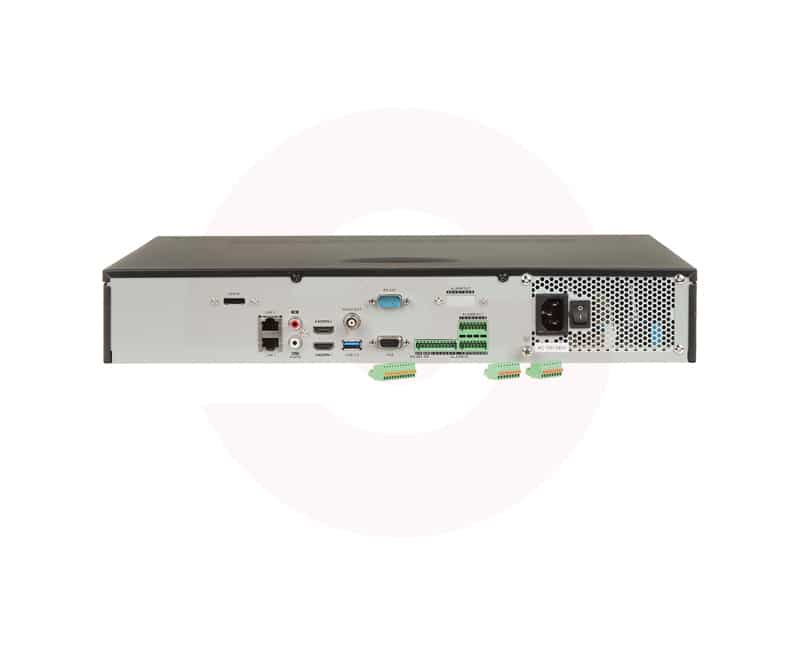

Hikvision DS-7732NXI-I4/S

H.265+/H.265/H.264+/H.264 video formats
Intelligent analytics based on deep learning algorithm
Up to 4-ch perimeter protection
Up to 1-ch facial recognition for video stream, or up to 4-ch facial recognition for face picture
Up to 32-ch IP camera inputs
Up to 16-ch 1080p decoding capability
Up to 256 Mbps incoming bandwidth
Online Access by IVMS-4500 / Hik-Connect Mobile App

System Parameter
Video Input Channel 32
Incoming Bandwidth 256 Mbps
Outgoing Bandwidth 256 Mbps
Video Resolution 12MP/8MP/7MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Video Parameter
Video Output 2-ch HDMI, 1-ch VGA
HDMI Output HDMI 1 output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI1/VGA simultaneous output HDMI2 output:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI2/VGA independent output
VGA Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,
CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Live View Window Division1/4/6/8/9/16/25/32/36
Aux Port Window Division1/4/6/8/9/16/25/32/36
Video Decoding Format H.265;H.265+;H.264;H.264+;MPEG4
Decoding Capability 16-ch @ 1080p (30 fps)
Synchronous Playback 16-ch

Smart Analysis
Face Picture Library Up to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 150 MB)
List Library Capacity 1w
List Library 16
Face Picture Comparison 4-ch face picture comparison alarm
Face Capture 1-ch human face capture (HD network camera, up to 4 MP, H.264/H.265)
