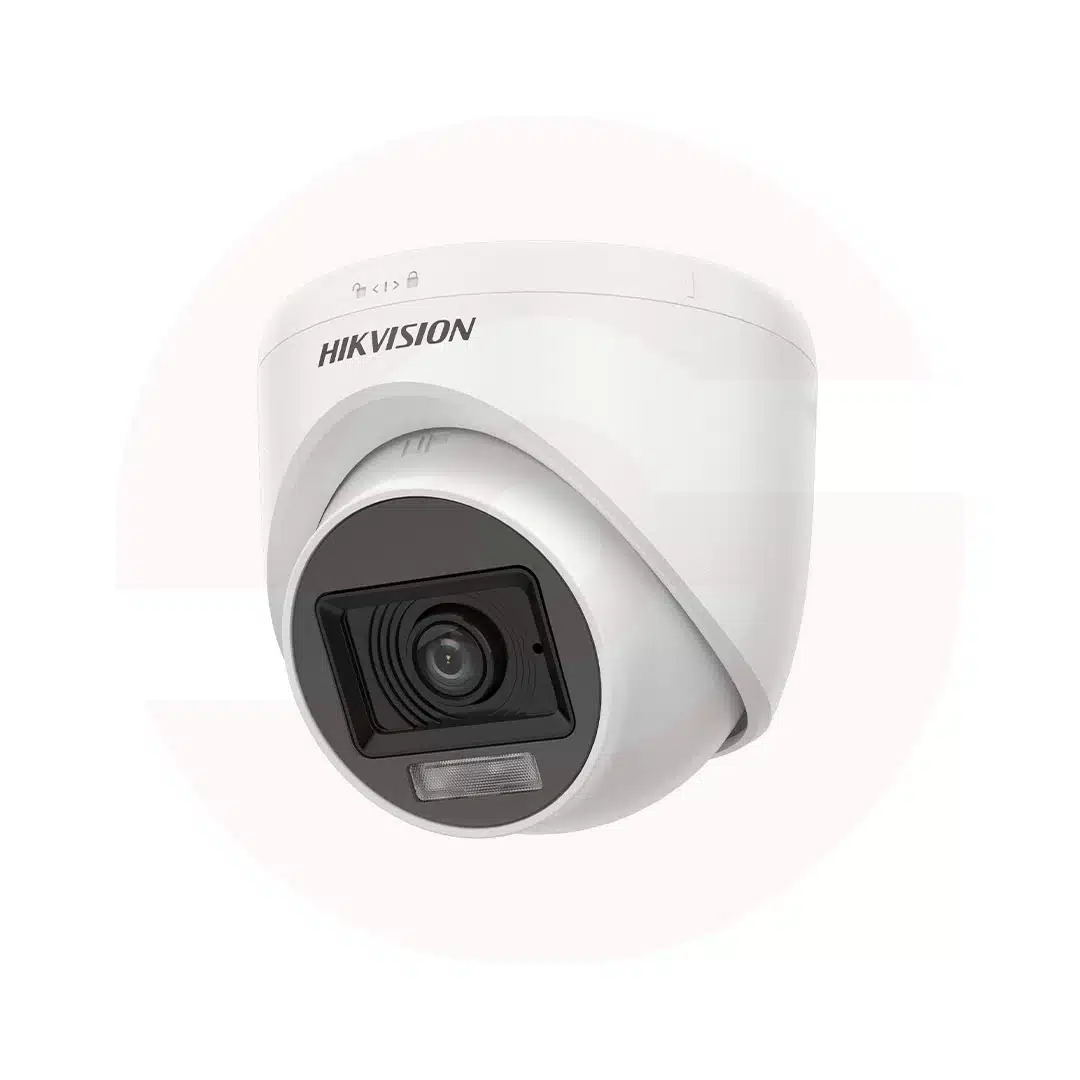

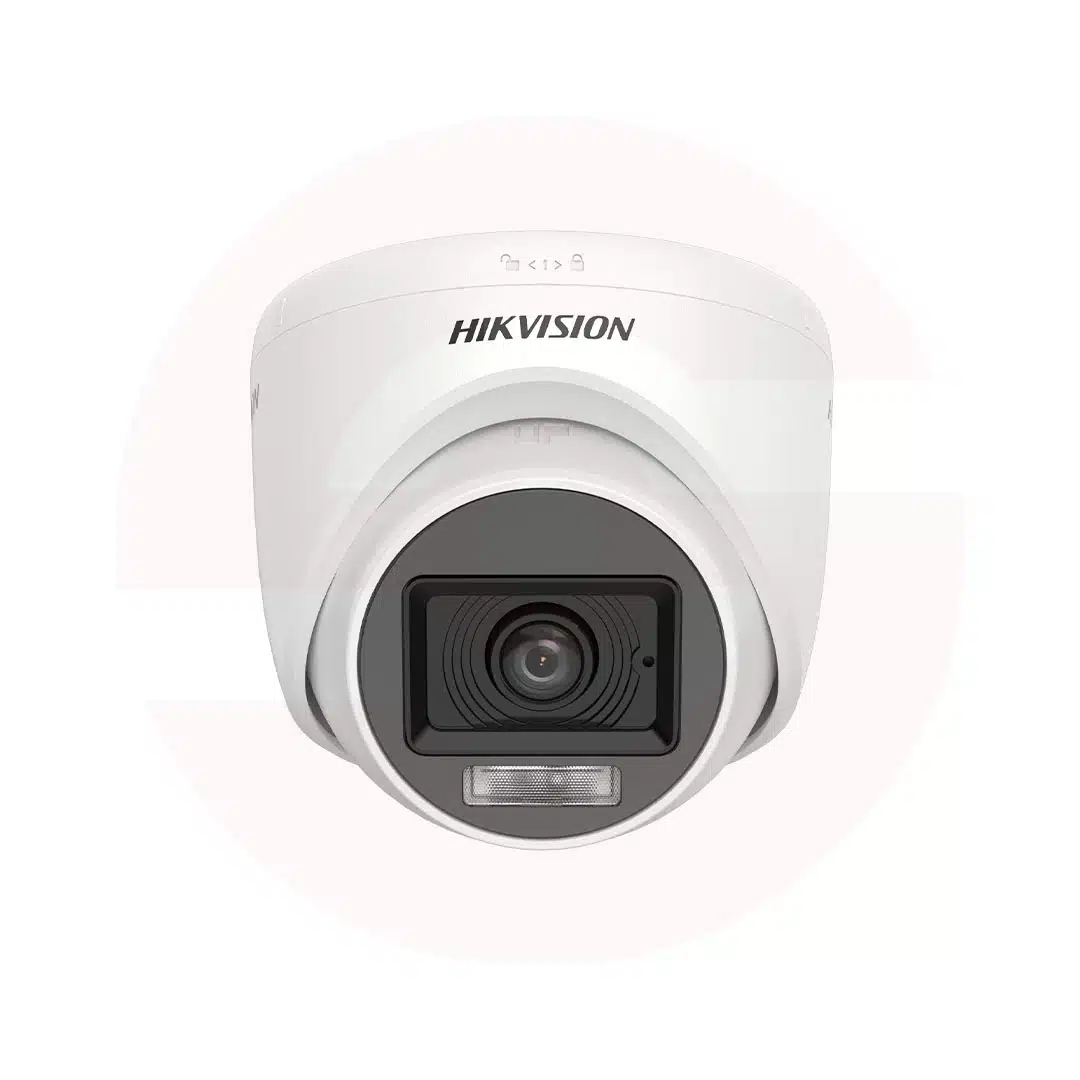

Name: Hikvision DS-2CE76D0T-LPFS
SKU: DS-2CE76D0T-LPFS
Availability: InStock

Hikvision DS-2CE76D0T-LPFS

Camera
Image Sensor 2 MP CMOS
Max. Resolution 1920 (H) × 1080 (V)
Min. Illumination 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
Day & Night ICR
Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
Signal System PAL/NTSC
Lens
Lens Type 2.8 mm fixed focal lens
Focal Length & FOV 2.8 mm, horizontal FOV: 101°, vertical FOV: 56°, diagonal FOV: 118°
Lens Mount M12
Illuminator
Supplement Light Type White Light; IR
Supplement Light Range
IR : Up to 20 m
White Light : Up to 20 m

Image Settings Brightness, Sharpness, Smart IR
Frame Rate
TVI: 1080P @ 30 fps, 1080P @ 25 fps
AHD: 1080P @ 30 fps, 1080P @ 25 fps
CVI: 1080P @ 30 fps, 1080P @ 25 fps
CVBS: PAL/NTSC
Day/Night Mode IR/White Light
Wide Dynamic Range (WDR)Digital WDR
Image Enhancement Yes
White Balance Auto/Manual
AGC Yes

Interface
Video Output Switchable TVI/AHD/CVI/CVBS
General
Material Plastic
Dimension 84.6 mm × Ø85.02 mm (3.33″ × Ø3.35″)
Approx. 156 g (0.34 lb.)
Operating Condition -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Communication HIKVISION-C
Language English
Power Supply 12 VDC ± 25%
Consumption Max. 3.3 W
