| Specifications | |
|---|---|

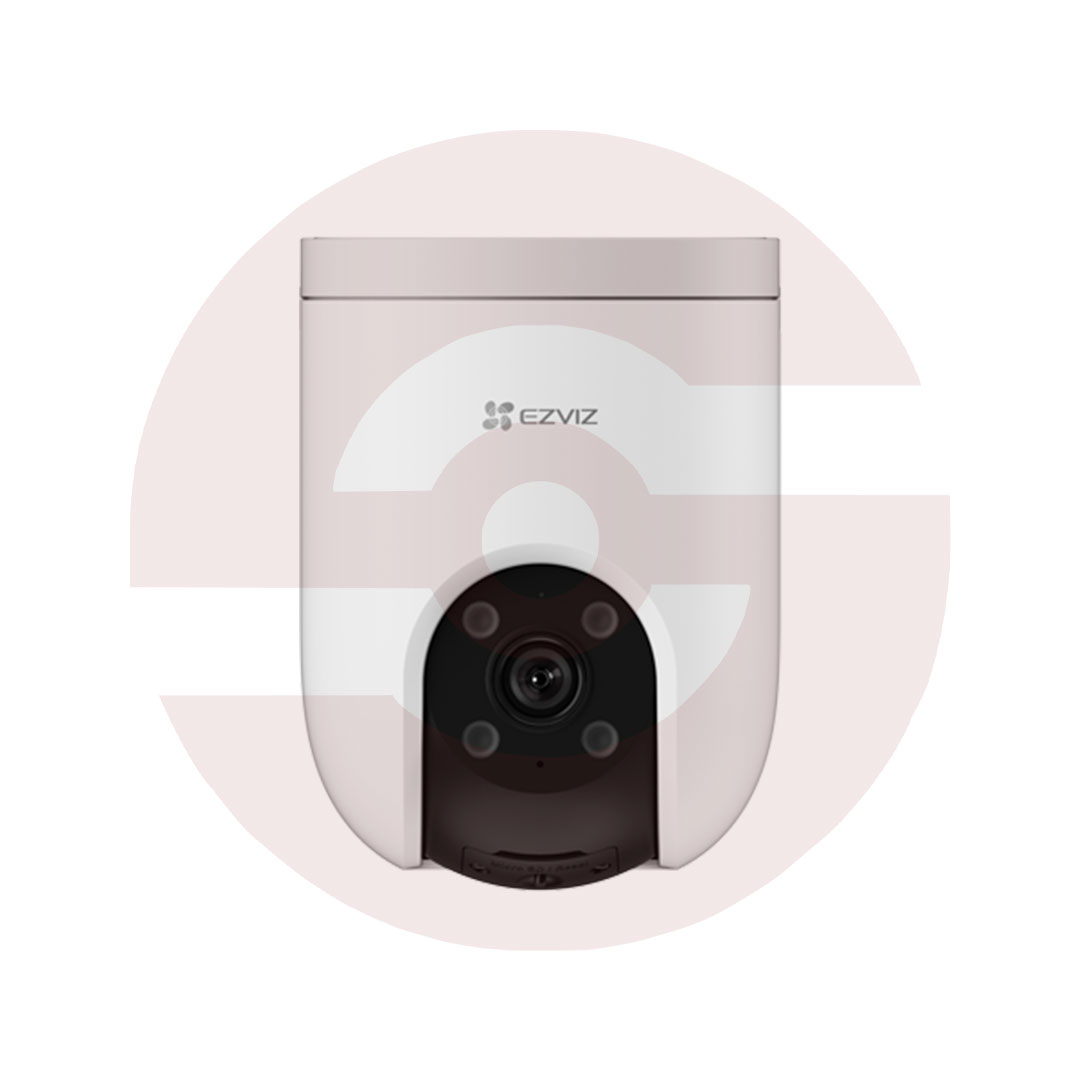

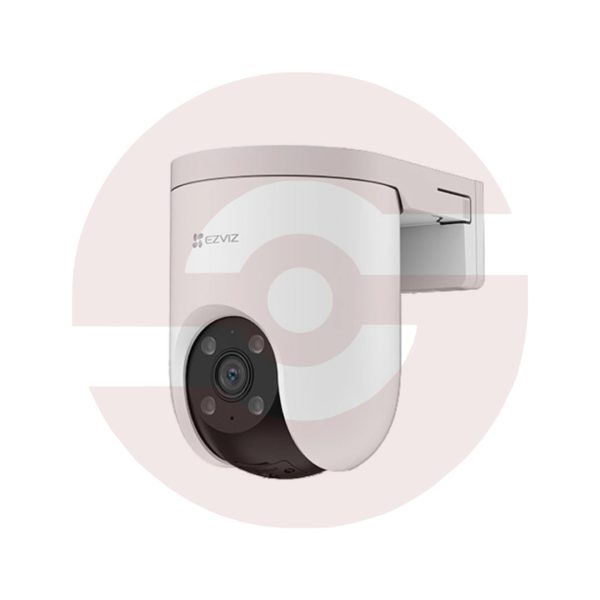

| Model | CS-H8c PoE (2K) |
| Camera | |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 4mm @ F1.6, viewing angle: 49° (Vertical), 89° (Horizontal), 104° (Diagonal) 6mm @ F1.6, viewing angle: 28° (Vertical), 52° (Horizontal), 60° (Diagonal) |
| PT Angle | Pan: 350°, Tilt: 80° |
| Minimum Illumination | 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories) |
| Lens Mount | M 12 |
| Day & Night | IR – cut filter with auto switch |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Black & White Night | 30m / 98 ft |
| Video & Audio | |
| Max Resolution | 2304 × 12 96 |
| Frame Rate | Max: 30 fps; Self-Adaptive during network transmission |
| Video Compression | H. 265 / H .264 |
| H.265 Type | Main Profile |
| Video Bit Rate | Ultra – HD; Hi-Def; Standard. Adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
| Network | |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Wired Network | RJ 45 × 1 (10M / 100M Adaptive Ethernet Port) |
| Functions | |
| Smart Alarm | AI-Powered Human Shape Detection |
| Auto Tracking | Supports |
| Customized Alert Area | Supports |
| Two-way Talk | Supports |
| Preset Locations | Supports |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| Storage | |
| Local Storage | Supports MicroSD Card (Up to 512 GB) |
| Cloud Storage | EZVIZ Cloud Play storage |
| General | |
| Operating Conditions | -30°C to 50°C ( -22 °F to 122 °F ) Humidity 95% or less (non-condensing) |
| IP Grade | Weather proof Design |
| Power Supply | DC 12V / 1A, Supports PoE power supply |
| Power Consumption | MAX. 12 W |
| Dimensions | 100 × 136 × 140 mm (3.94 × 5.35 × 5.51 inch) |
| Packaging Dimensions | 140 × 140 × 192 mm (5.51 × 5.51 × 7.56 inch) |
| Weight | Net Weight: 525 g With Package: 745 g For EU Standard Version |
| In the box | |
| In the box | – H8c PoE (2K) Camera |
| – Drill Template | |
| – Screw Kit | |
| – Water proof Kit | |
| – Regulatory Information | |
| – Quick Start Guide | |
| Certifications | |
| Certifications | CE / UL / RoHS / WEEE / REACH |
