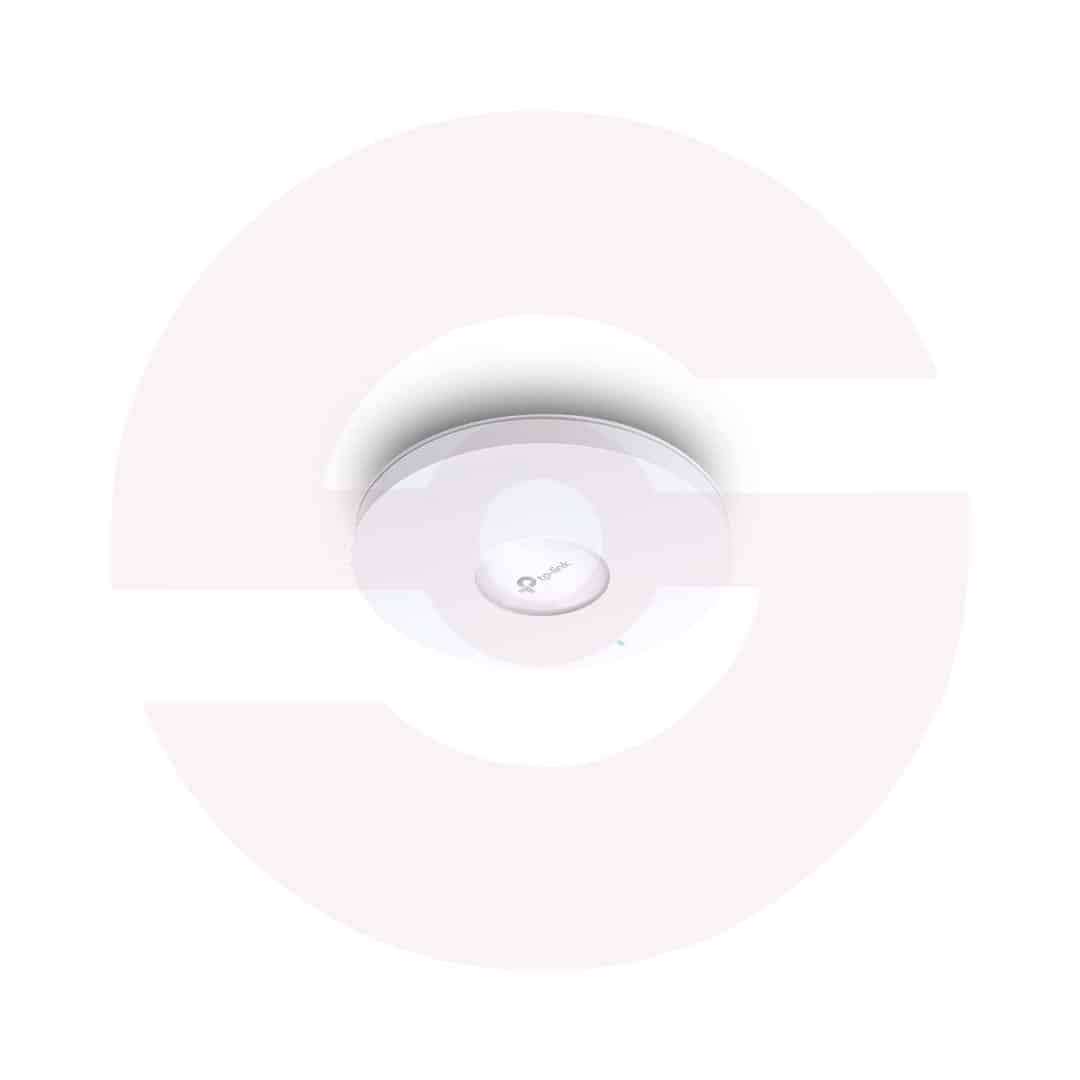

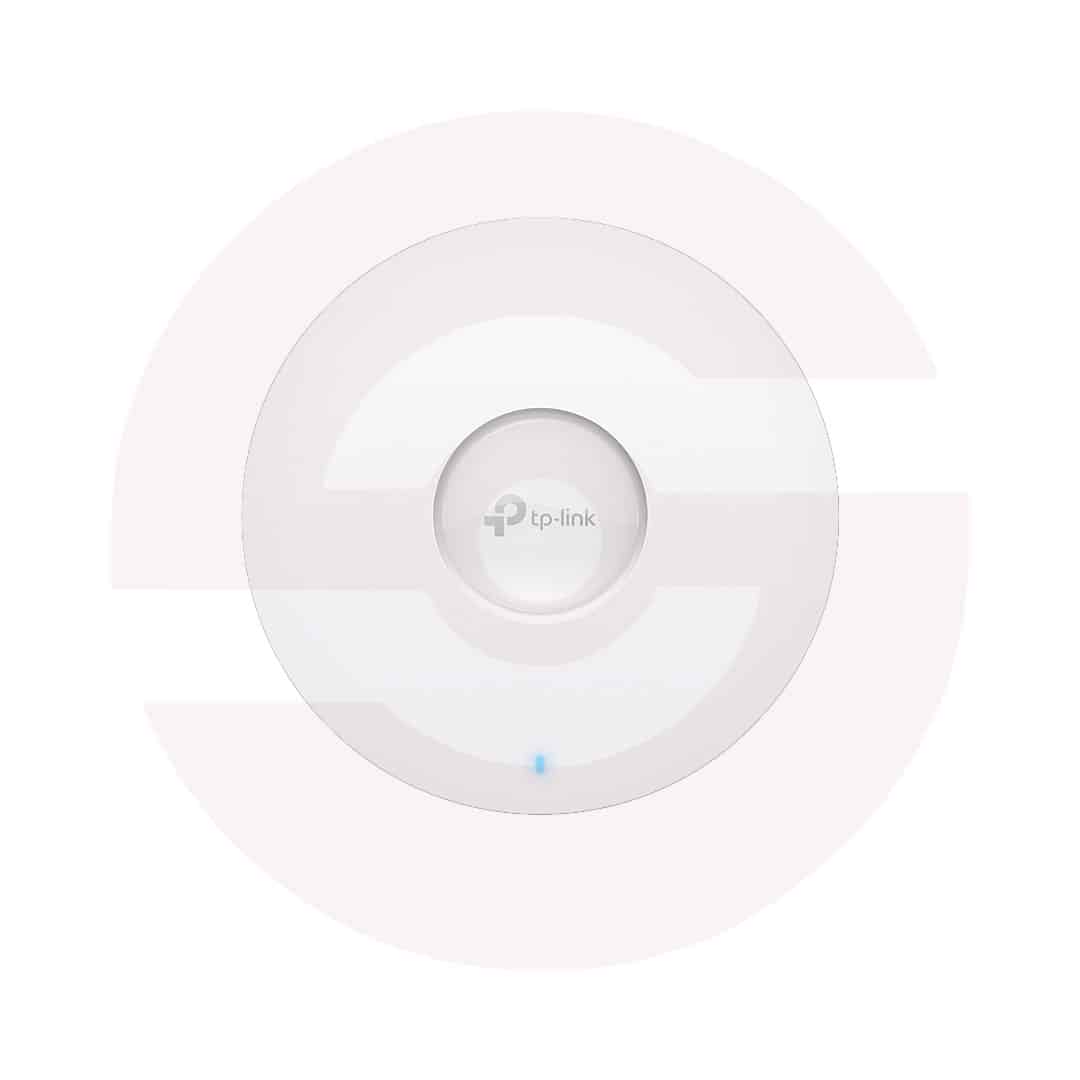

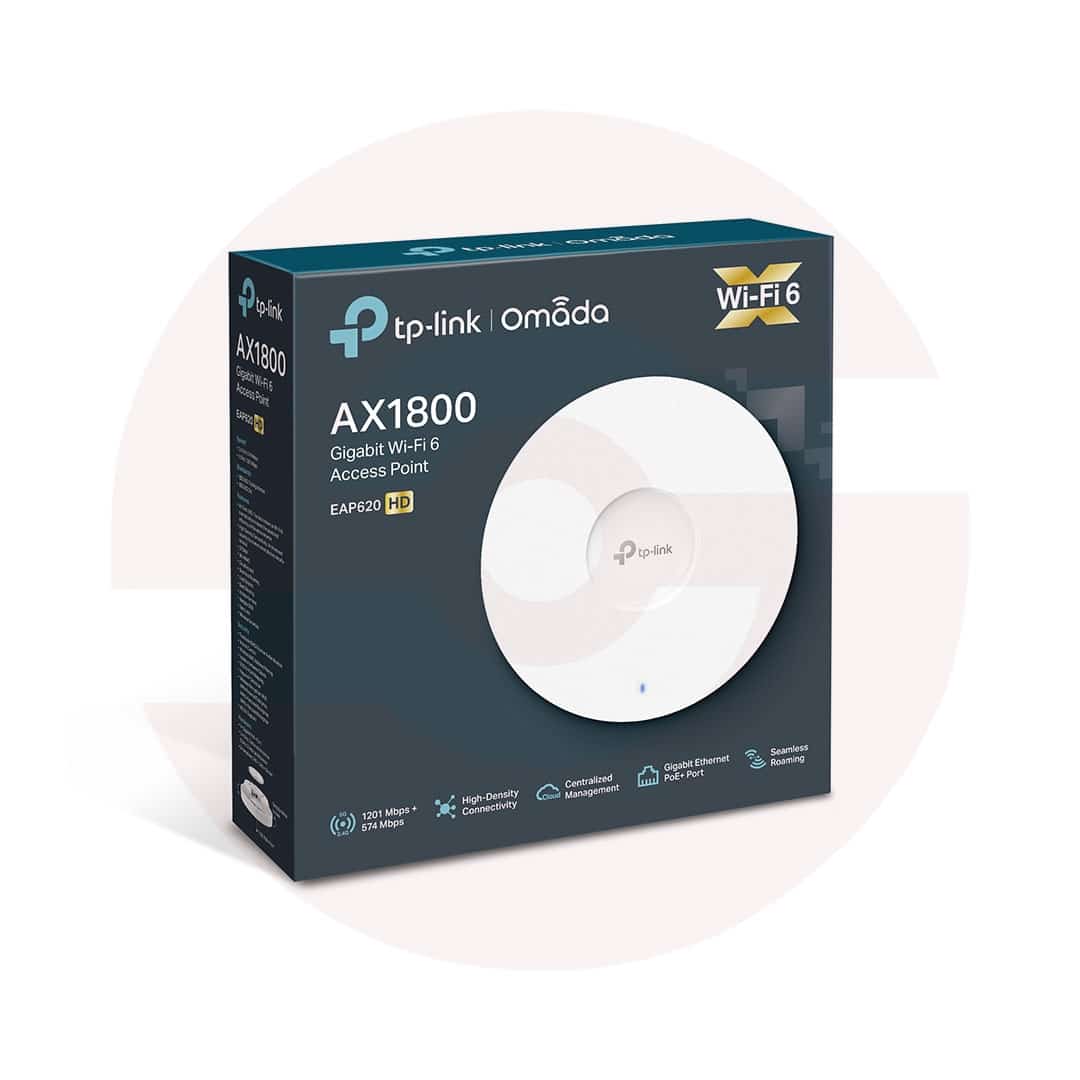

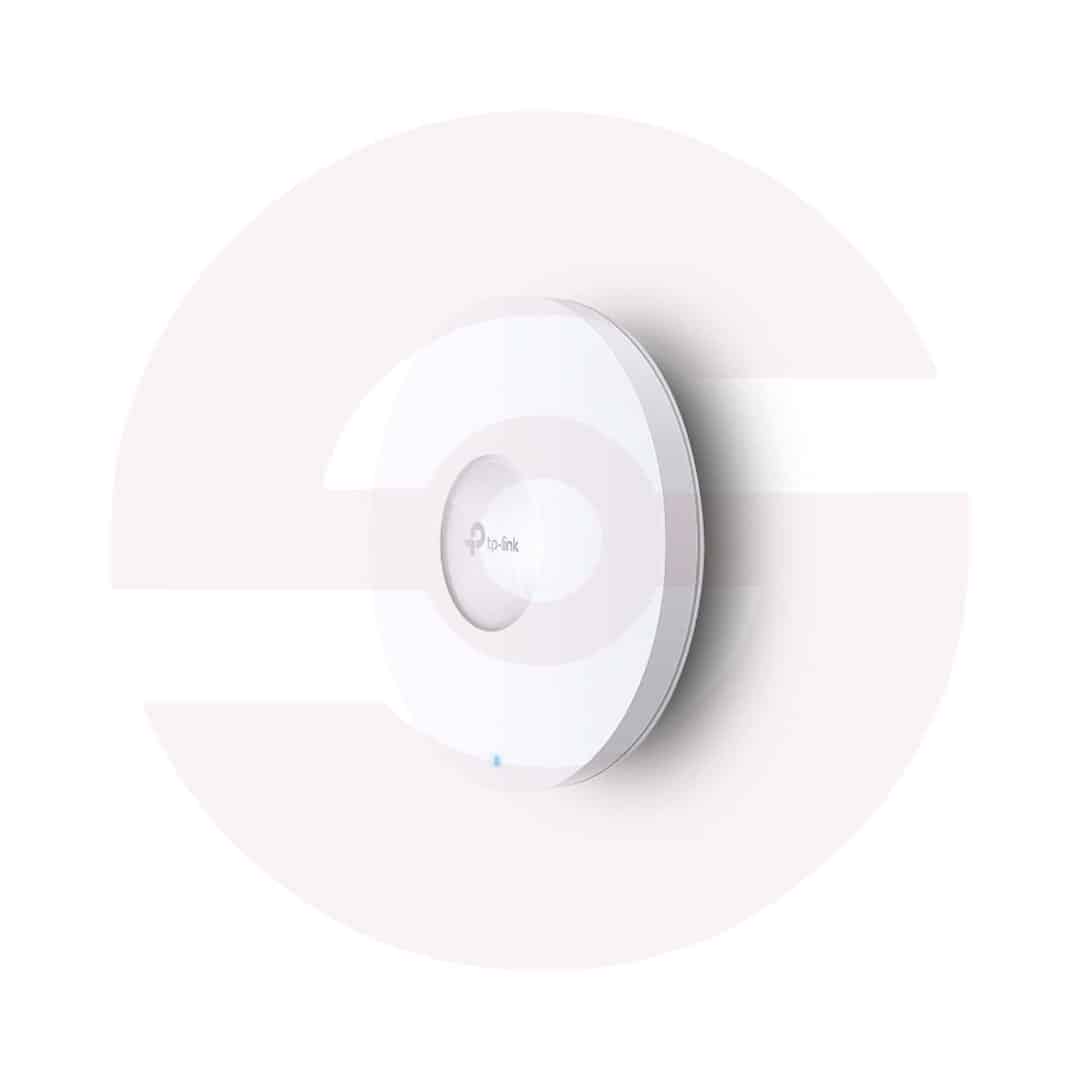

TP-Link EAP620 HD

AX1800 Ceiling Mount WiFi 6 Access Point

  • Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.†
  • High-Density Connectivity: 4× increased capacity to connect more devices simultaneously.‡
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)§, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • Ultra-Slim Design: Φ6.3 in. × 1.3 in. elegant design brings more agility.
  • Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.△
  • Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.△
  • PoE+ Powered: Supports DC (adapter included), 802.3at PoE+, and Passive PoE for flexible installations.
  • Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.△
Compare
Add to wishlist
SKU: EAP620-HD Categories: ,
Description
  • HARDWARE FEATURES
    Interface1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE and Passive PoE)
    ButtonReset
    Power Supply• 802.3at PoE
    • 48 V Passive PoE
    • 12 V / 1.5 A DC
    Power Consumption• EU: 14.4 W (For PoE); 13.1 W (for DC)
    • US: 14.9 W (For PoE); 13.4 W (for DC)
    Dimensions ( W x D x H )6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
    Antenna TypeInternal Omni Antenna
    • 2.4 GHz: 2× 4 dBi
    • 5 GHz: 2× 5 dBi
    Mounting• Ceiling /Wall Mounting (Kits included)
    • Junction Box Mounting
    WIRELESS FEATURES
    Wireless StandardsIEEE 802.11ax/ac/n/g/b/a
    Frequency2.4 GHz and 5 GHz
    Signal Rate• 5 GHz: Up to 1201 Mbps
    • 2.4 GHz: Up to 574 Mbps
    Wireless Functions• 1024-QAM
    • 4× Longer OFDM Symbol
    • OFDMA
    • Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
    • Enable/Disable Wireless Radio
    • Automatic Channel Assignment
    • Transmit Power Control (Adjust Transmit Power on dBm)
    • QoS(WMM)
    • MU-MIMO
    • Seamless Roaming△
    • Omada Mesh△
    • Band Steering
    • Load Balance
    • Airtime Fairness
    • Beamforming
    • Rate Limit
    • Reboot Schedule
    • Wireless Schedule
    • Wireless Statistics based on SSID/AP/Client
    Wireless Security• Captive Portal Authentication△
    • Access Control
    • Wireless Mac Address Filtering
    • Wireless Isolation Between Clients
    • SSID to VLAN Mapping
    • Rogue AP Detection
    • 802.1X Support
    • WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
    Transmission Power• CE:
    <20 dBm(2.4 GHz, EIRP)
    <23 dBm(5 GHz band1/2, EIRP) <25 dBm (5 GHz band3)• FCC:
    <25 dBm (2.4 GHz)
    <25 dBm (5 GHz)
    MANAGEMENT
    Omada AppYes
    Centralized Management• Omada Cloud-Based Controller
    • Omada Hardware Controller (OC300)
    • Omada Hardware Controller (OC200)
    • Omada Software Controller
    Cloud AccessYes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
    Email AlertsYes
    LED ON/OFF ControlYes
    Management MAC Access ControlYes
    SNMPv1, v2c, v3
    System Logging Local/Remote SyslogLocal/Remote Syslog
    SSHYes
    Web-based ManagementHTTP/HTTPS
    L3 ManagementYes
    Multi-site ManagementYes
    Management VLANYes
    Zero-Touch ProvisioningYes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP620 HD v2.0 and above)
    OTHERS
    CertificationCE, FCC, RoHS
    Package Contents• EAP620 HD
    • Power Adapter
    • Ceiling / Wall Mounting Kits
    • Installation Guide
    System RequirementsMicrosoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
    Environment• Operating Temperature: 0–40 ℃ (32–104 ℉)
    • Storage Temperature: -40–70 ℃ (-40–158 ℉)
    • Operating Humidity: 10–90% RH non-condensing
    • Storage Humidity: 5–90% RH non-condensing
Additional information
Weight1 kg
Dimensions10 × 10 × 10 cm
