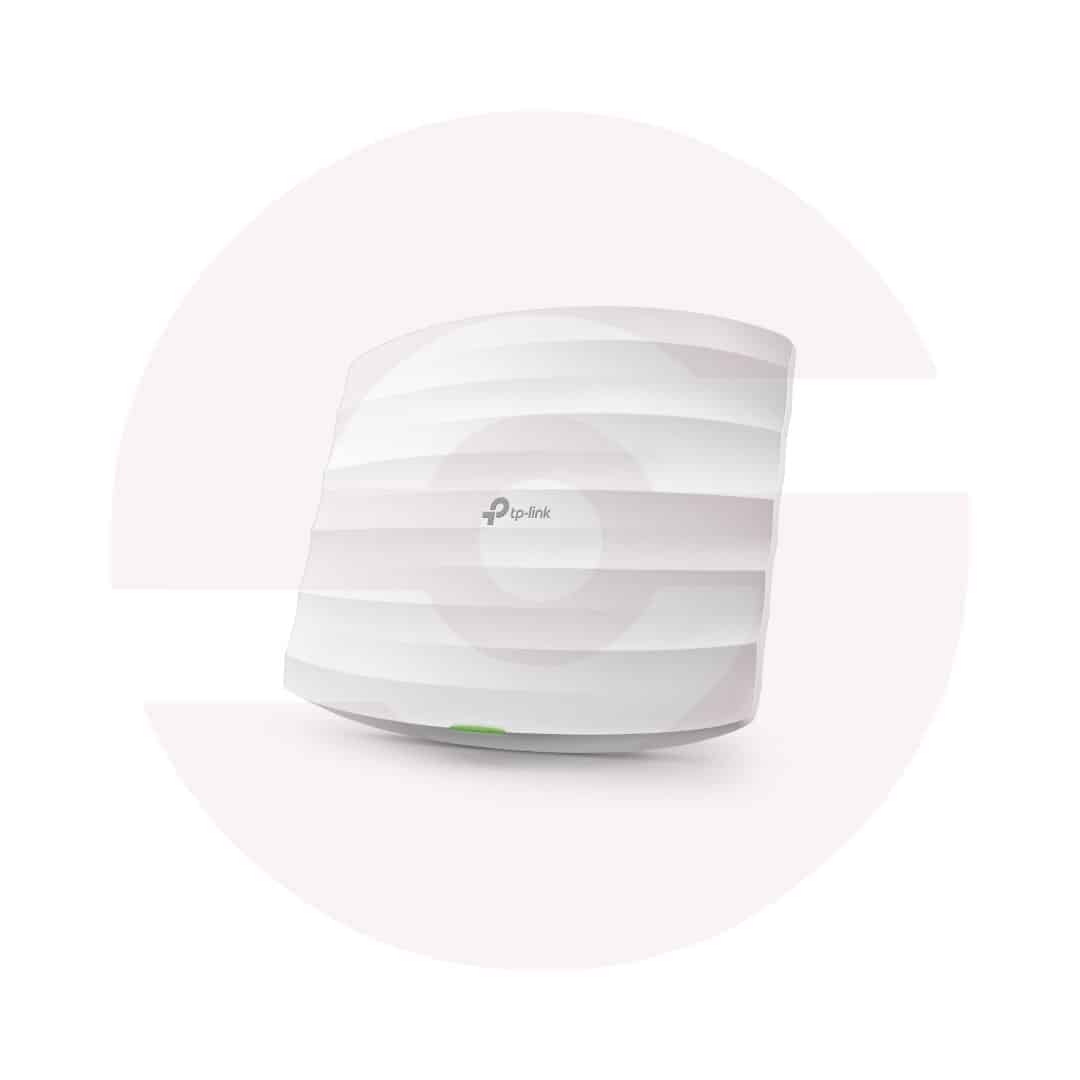

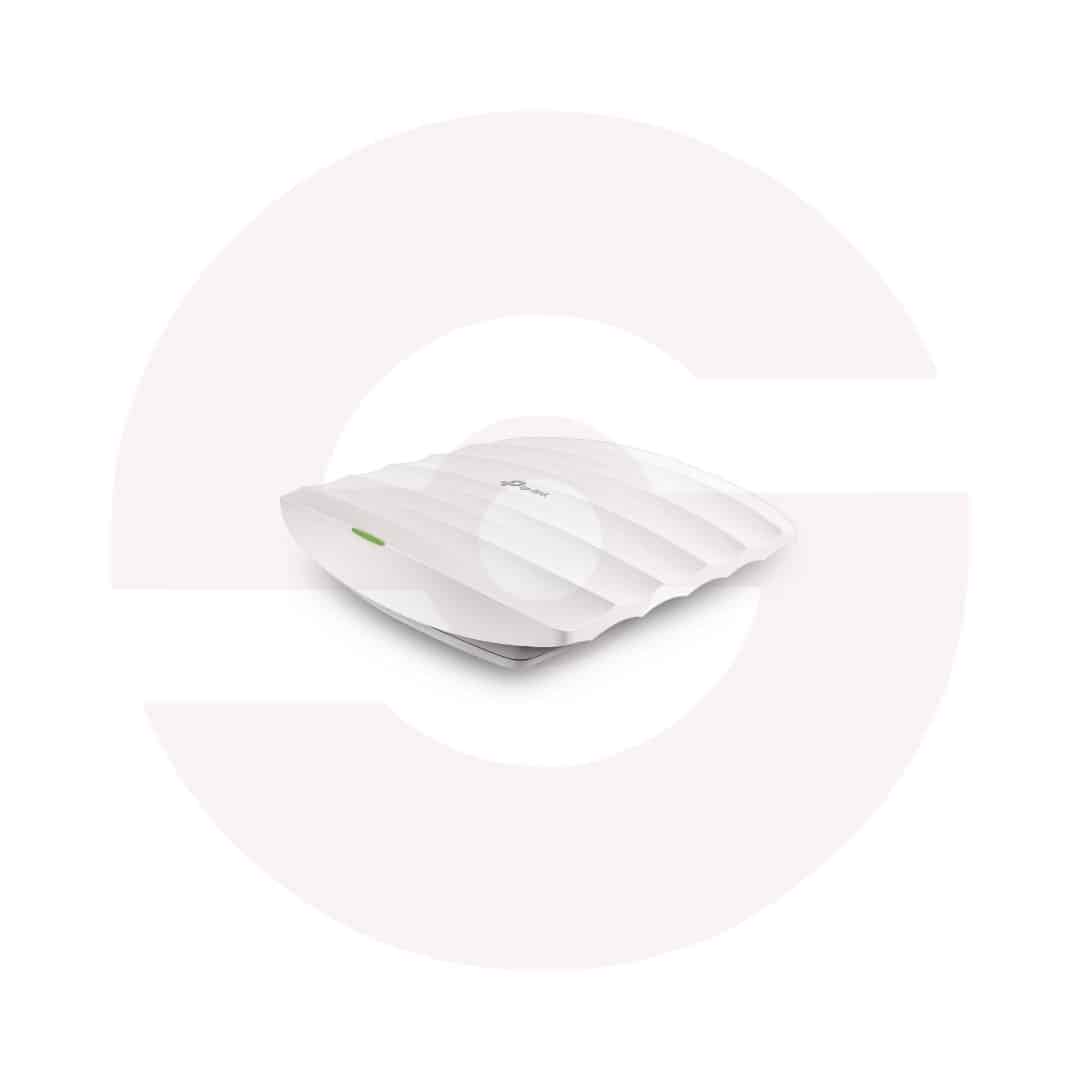

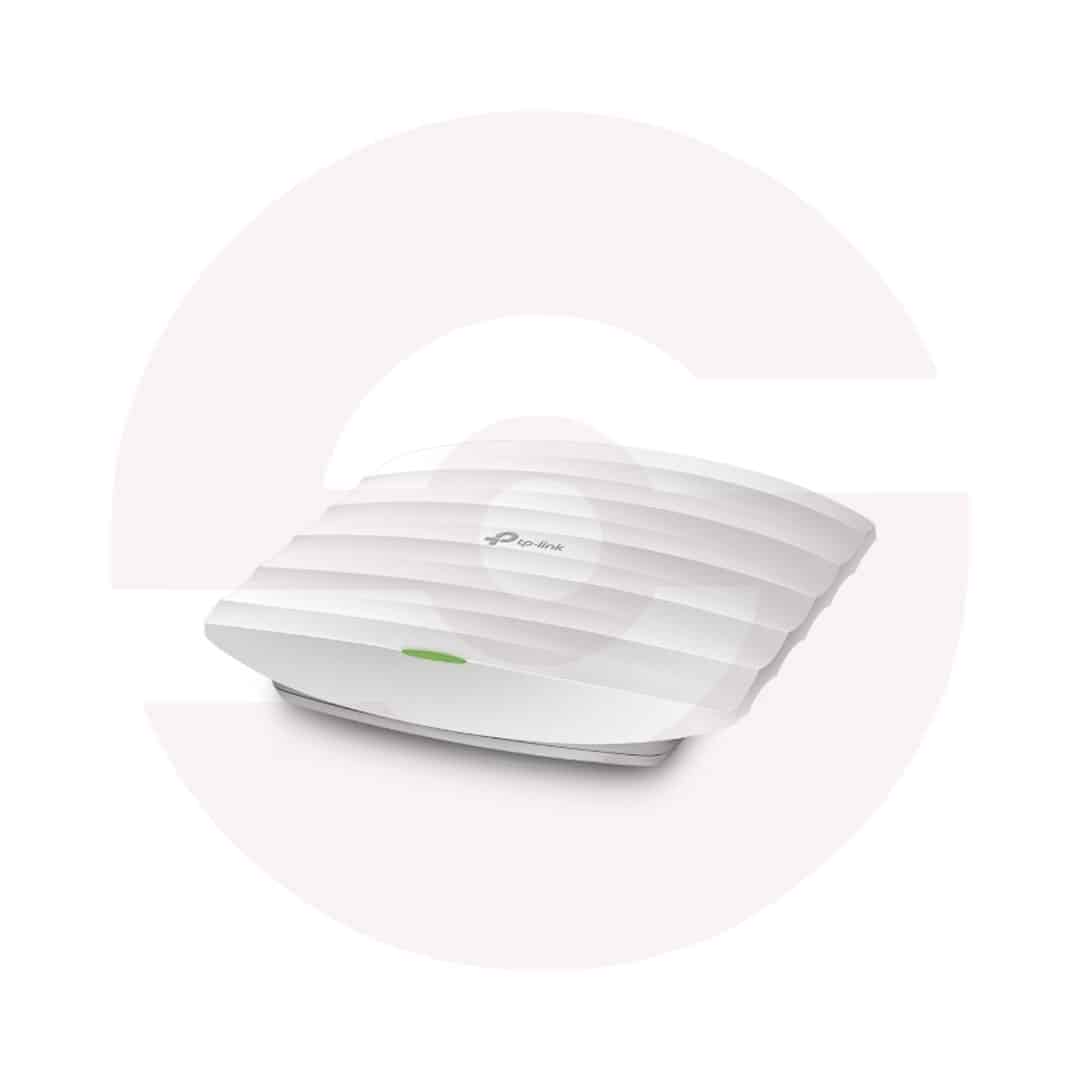

TP-Link EAP-115

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)^‡, Centralised Cloud Management, and Intelligent Monitoring.
Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
PoE Support: Supports Power over Ethernet (802.3af/at) for convenient deployment.
Easy Installation: Simple mounting design for easy attachment to a wall or ceiling.
Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
Load Balancing: Limit the number of users on each access point and remove devices with weak reception to keep your Wi-Fi running at peak performance.
Scheduling: Automatically reboot the access point and turn on or off the Wi-Fi at the time you set

SKU: EAP115Ceiling Categories: Access Points, TP-Link

HARDWARE FEATURES

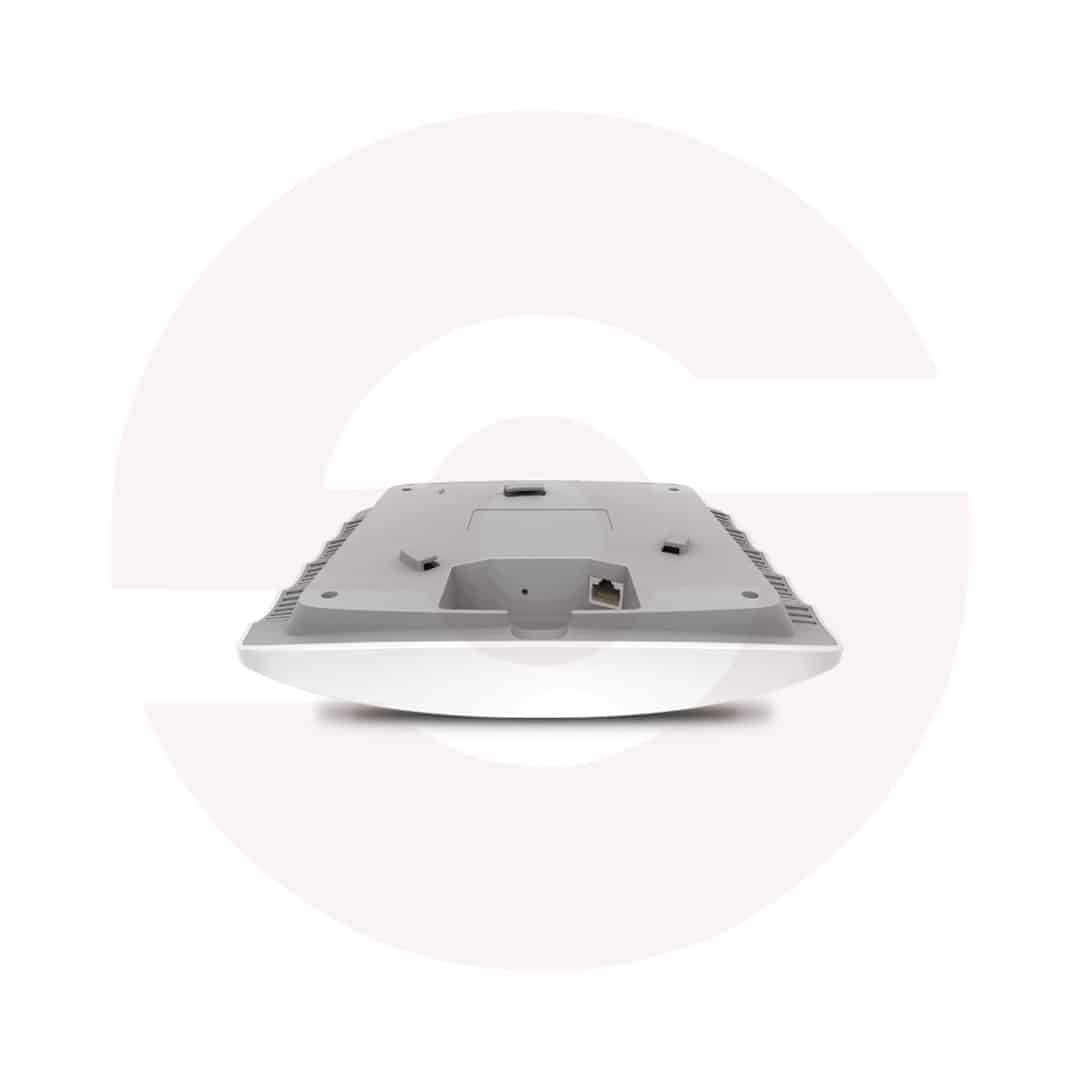

Interface	Fast Ethernet (RJ-45) Port *1（Support IEEE802.3af PoE）
Button	Reset
Power Supply	PoE or external 9VDC/0.6A power supply
Power Consumption	2.8W
Dimensions ( W x D x H )	7.5×6.7×1.2 in (189.5×170.5×29.7mm)
Dimensions	7.5×6.8×1.2 in. (189.4×172.3×29.5mm)
Antenna Type	Internal 2* 4dBi Omni
Mounting	Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES
Wireless Client Capacity	100+**
Wireless Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency	2.4-2.4835GHz
Signal Rate	11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic)
Reception Sensitivity	300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER
Wireless Functions	Multiple SSIDs （Up to 8 SSIDs） Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control （Adjust Transmit Power on dBm） QoS(WMM) Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client
Wireless Security	Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
Transmission Power	CE: ≤19dBm FCC: ≤26dBm

MANAGEMENT
Omada App	Yes
Centralized Management	• Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller
Cloud Access	Yes (Through OC300, OC200, or Omada Software Controller)
EAP Controller Software
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1,v2c
System Logging Local/Remote Syslog	Local/Remote Syslog
SSH	Yes
Web-based Management	HTTP/HTTPS
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes

OTHERS
Certification	CE, FCC, RoHS
Package Contents	300Mbps Wireless N Ceiling Mount Access Point EAP115 Power Adapter Mounting Kits, Installation Guide
System Requirements	Microsoft Windows 10/8/7/Vista/XP
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Warranty	Limited 5-Year Warranty For further information on our warranty policy please visit: http://www.tp-link.com.au/support/rma

Weight	1 kg
Dimensions	10 × 10 × 10 cm

Weight

1 kg

Dimensions

10 × 10 × 10 cm
