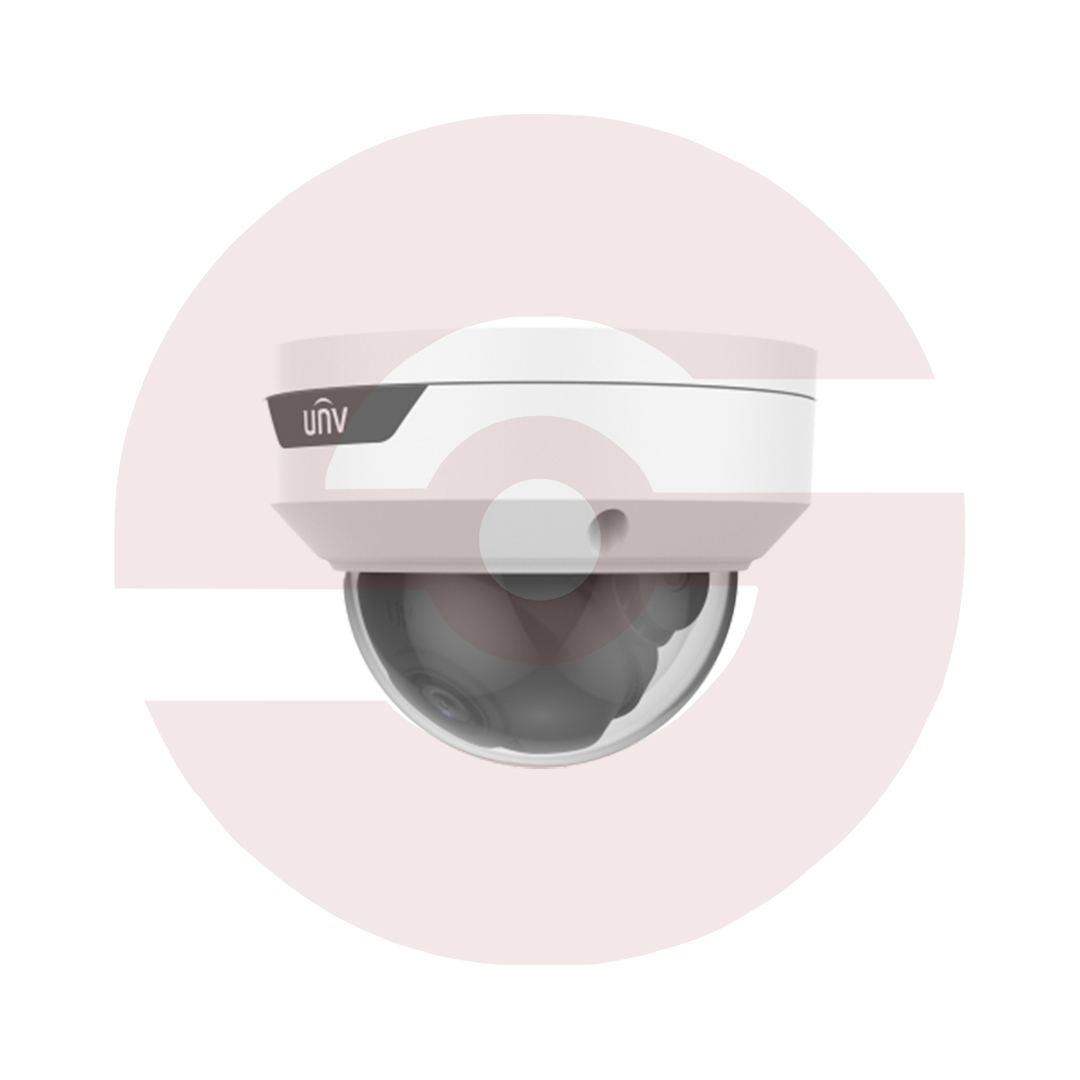

Uniview UAC-D112-F28

2MP Fixed IR Dome Analog Camera

• High quality imaging with 2MP resolution
• TVI/AHD/CVI/CVBS
• Supports IR-cut filter with auto-switch (ICR)
• Supports 180° horizontal flip, 180° vertical flip
• OSD configuration menu, easy to operate
• IP67 waterproof and dustproof design, high reliability
• OSD configuration menu in 11 languages
• 3-Axis
Compare
Add to wishlist
SKU: UAC-D112-F28 Categories: ,
Description
Camera
Max Resolution2 MP
Sensor Size1/3.0″ CMOS
Min. Illumination0.02 lux (F2.0, AGC ON)
0 lux (IR on)
Lens
Focus2.8 mm
Lens MountM12
Angle of View (H)90.5°
Angle of View (V)49.6°
Angle of View (D)109.5°
Illuminator
Illuminator NumberOne IR illuminator
Illumination Distance20m
Lifetime≥ 60000 hours
Video
Resolution1080P: 1920(H)×1080(V)
720P: 1280(H) ×720(V)
Frame RateTVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps
AHD: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps
CVI: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps
CVBS: PAL, NTSC
Shutter TimePAL: 1/25s-1/50000s，
NTSC: 1/30s-1/50000s
Exposure ModeFour modes: Global (default), BLC, HLC, DWDR
Day/NightThree modes: Auto (default), Day, Night
Digital Noise Reduction2D
White BalanceTwo modes: Auto (default), Manual
WDRDWDR
Smart IRSupport
FlipSupports 180°horizontal flip, 180°vertical flip
Digital DefogN/A
Audio
Built-in MicN/A
Camera AudioN/A
Interface
Power Interface5.5 mm Power Interface
Video OutputBNC, supports TVI/AHD/CVI/CVBS
Operating Environment
Temperature-30°C to 60°C (-22°F to 140°F)
Humidity≤ 95% RH (non-condensing)
Surge Protection4kV for power, 4kV for video output interfaces
Ingress ProtectionIP67
General
PowerDC 12 V ± 25%
Power ConsumptionMAX 2.2W
MountWall Mount, Pole Mount, Corner Mount, Tilted Mount, Pendant Mount
DimensionsΦ111mm*83mm (diameter*height)
MaterialPlastic
Weight233g(0.51lb)
Additional information
Weight0.5 kg
Dimensions10 × 10 × 10 cm
