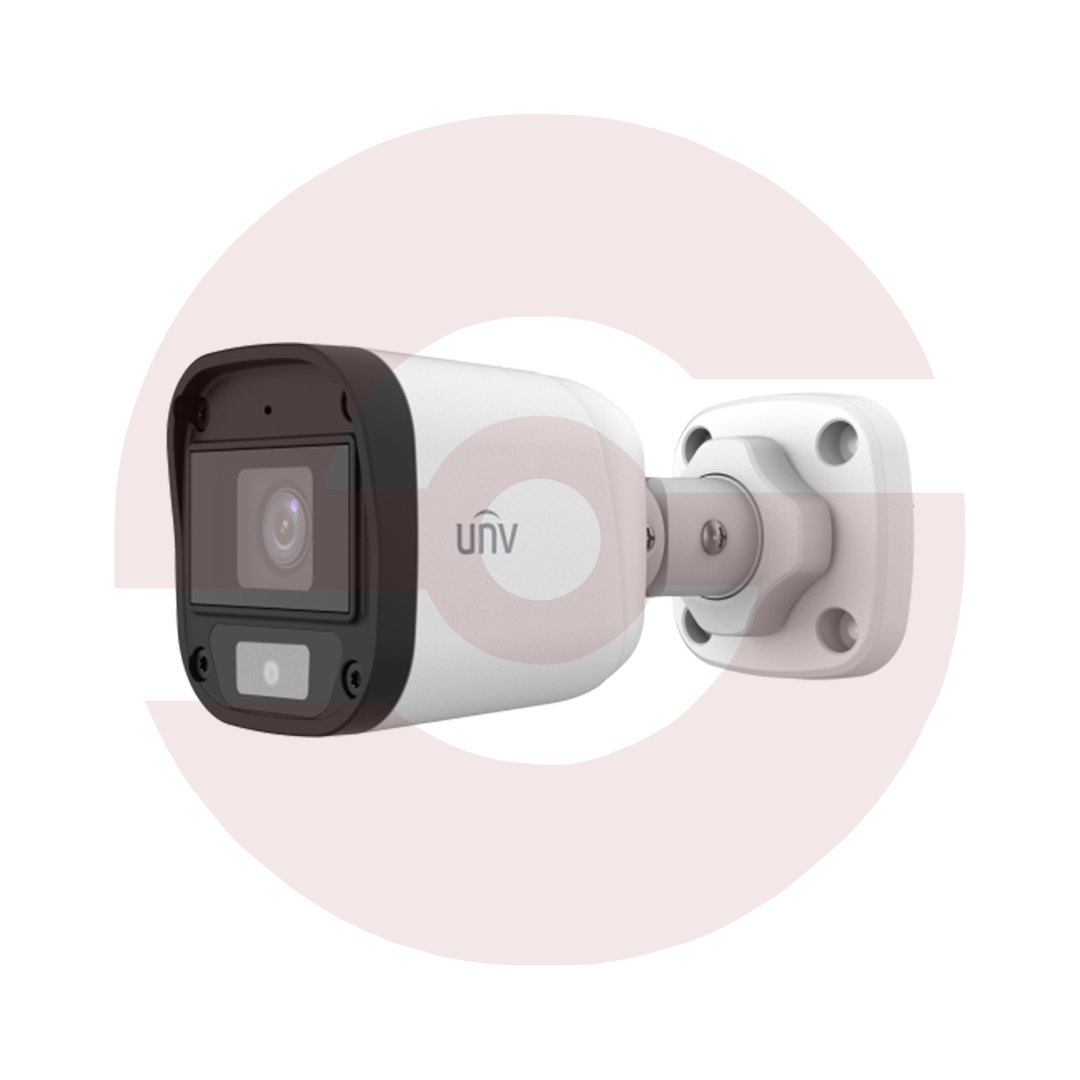

Uniview UAC-B112-AF28-W

2MP ColorHunter Fixed Warm Light Bullet Analog Camera

• 2MP high quality image
• TVI/AHD/CVI/CVBS
• Supports white light illumination, 24/7 color images
• 3D noise reduction technology delivers clean and sharp images
• Supports 180° horizontal flip, 180° vertical flip
• OSD configuration menu, easy to operate
• IP67 waterproof and dustproof design, high reliability
• OSD configuration menu in 11 languages
• Built-in microphone for high quality audio transmission via coaxial cables
Compare
Add to wishlist
SKU: UAC-B112-AF28-W Categories: ,
Description
Camera
Max Resolution2 MP
Sensor Size1/3.0″ CMOS
Min. Illumination0.01 lux (F1.6, AGC ON)
0 lux (white light on)
Lens
Focus2.8 mm4.0 mm
Lens MountM12
Angle of View (H)100.9°82.5°
Angle of View (V)56.5°42.1°
Angle of View (D)121.8°98.6°
Illuminator
Illuminator NumberOne white-light illuminator
Illumination Distance20m
Lifetime≥ 60000 hours
Video
Resolution1080P: 1920(H)×1080(V)
720P: 1280(H) ×720(V)
Frame RateTVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps
AHD: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps
CVI: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps
CVBS: PAL, NTSC
Shutter TimePAL: 1/25s-1/50000s，
NTSC: 1/30s-1/50000s
Exposure ModeFour modes: Global (default), BLC, HLC, DWDR
Day/Night24/7 color images
Digital Noise Reduction2D/3D
White BalanceTwo modes: Auto (default), Manual
WDRDWDR
FlipSupports 180°horizontal flip, 180°vertical flip
Digital DefogN/A
Audio
Built-in MicSupport
Camera AudioTVI: 1080P@25fps, 1080P@30fps
CVI: 1080P@25fps, 1080P@30fps
Interface
Power Interface5.5 mm Power Interface
Video OutputBNC, supports TVI/AHD/CVI/CVBS
Operating Environment
Temperature-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉)
Humidity≤ 95% RH (non-condensing)
Surge Protection4kV for power&4kV for video output interfaces
General
PowerDC 12 V ± 25%
Power ConsumptionMAX 2.3W
MountCorner Mount&Pole Mount
Dimensions142mm*63mm*65mm (L*W*H)
MaterialGraphene + Plastic
Weight146g(0.32lb)
OSD Menu Language11 Languages: English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish
Certification
EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B)
SafetyCE-LVD (EN 62368-1)
EnvironmentCE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU)
ProtectionIP67 (IEC 60529)
Additional information
Weight0.5 kg
Dimensions10 × 10 × 10 cm
