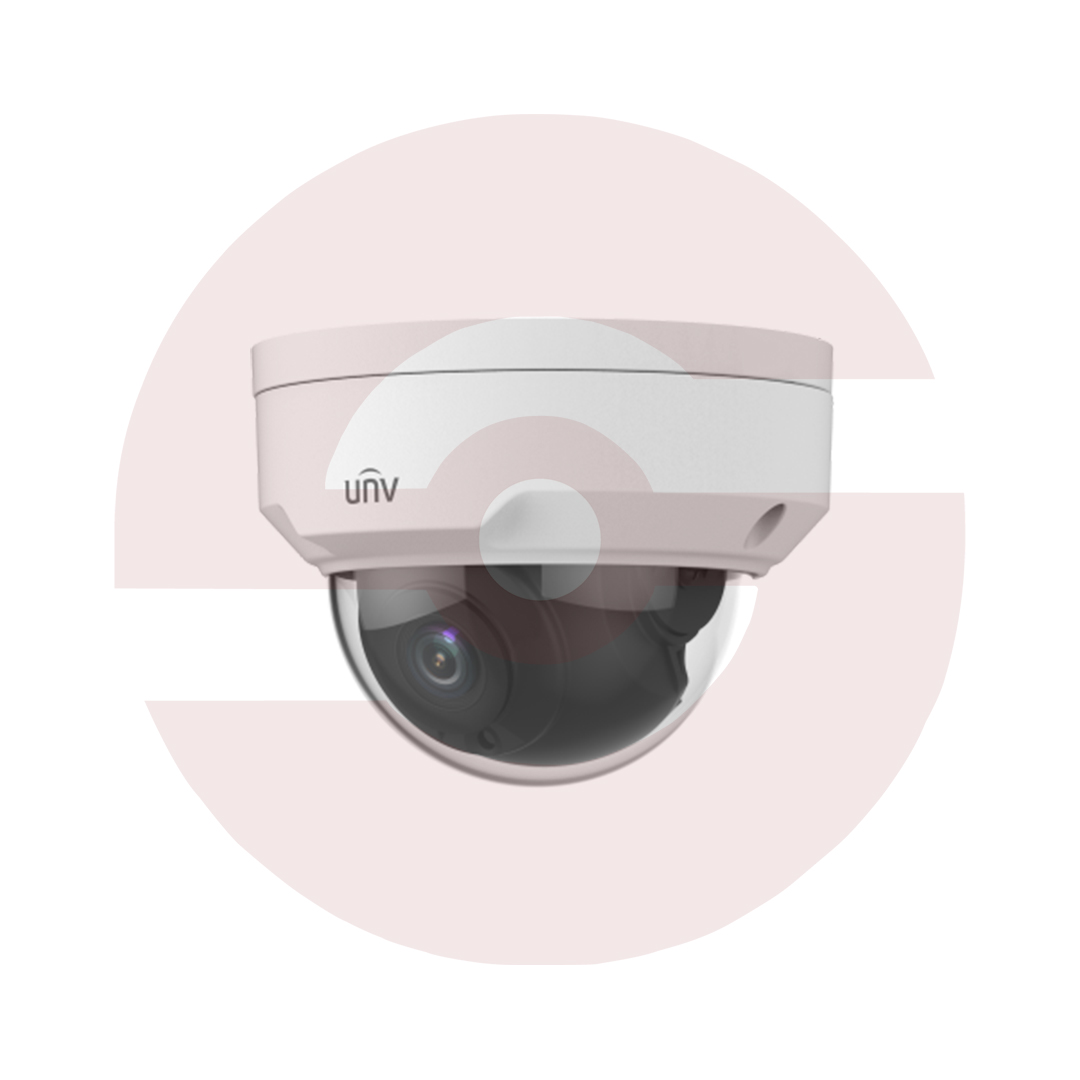

Uniview IPC324LB-SF28-A

4MP Fixed IR Dome Network Camera

• High quality image with 4 MP, 1/3.0″ CMOS sensor
• 4 MP (2560 × 1440)@25/20 fps; 3 MP (2304 × 1296)@25/20 fps; 1080P (1920 × 1080)@30/25 fps
• Ultra 265, H.265, H.264
• Smart IR, up to 30 m (98.4 ft) IR distance
• Day/night functionality
• 2D/3D DNR (digital noise reduction)
• IP67 protection
• IK10 vandal resistant
• DC 12 V, PoE (IEEE 802.3af) power supply
• 2-axis
Compare
Add to wishlist
SKU: IPC324LB-SF28-A Categories: ,
Description
Camera
Max Resolution4 MP
Sensor1/3.0″ CMOS
Min. IlluminationColor: 0.01 Lux (F2.1, AGC ON), 0 Lux with IR on
Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1 ~ 1/100000s
Adjustment AnglePan: 3° to 360°, Tilt: 0° to 68°
S/N>52 dB
WDRDWDR
Lens
Focal Length2.8 mm4.0 mm
Iris TypeFixed
IrisF2.1
Field of View (H)97.0°79.0°
Field of View (V)52.2°42.3°
Field of View (D)107.5°85.1°
DORI
DORI Distance (Lens)2.8 mm4 mm
DORI Distance (Detect)63.0 m (206.7 ft.)90.0 m (295.3 ft.)
DORI Distance (Observe)25.2 m (82.7 ft.)36.0 m (118.1 ft.)
DORI Distance (Recognize)12.6 m (41.3 ft.)18.0 m (59.1 ft.)
DORI Distance (Identify)6.3 m (20.7 ft.)9.0 m (29.5 ft.)
Illuminator
Supplemental LightIR
Illumination Distance (IR)30 m (98.4 ft)
Wavelength850 nm
IR On/Off ControlAuto/Manual
Video
Video CompressionUltra 265, H.265, H.264
H.264 Code ProfileBaseline profile, Main profile, High profile
Frame RateMain Stream: 4 MP (2560 × 1440), max. 25 fps; 3 MP (2304 × 1296), max. 25 fps; 1080P (1920 × 1080), max. 30 fps
Sub Stream: D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
Video Bit Rate128 Kbps to 6144 Kbps
U-codeSupport(Main stream)
OSDUp to 4 OSDs
Privacy MaskUp to 4 areas
ROISupport
Video StreamDual streams
White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction2D/3D DNR
Smart IRSupport
FlipNormal, Flip vertical, Flip horizontal, 180°
DewarpingN/A
HLCSupport
BLCSupport
DefogDigital defog
Events
Basic DetectionMotion detection
General FunctionWatermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, QoS, SSL/TLS
Compatible IntegrationONVIF (Profile S, Profile T) , API, SDK
User/HostUp to 32 users, 2 user levels: administrator and common user
SecurityPassword Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, WSSE and Digest Authentication for ONVIF
ClientEZStation, APP
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Interface
Audio I/ON/A
Alarm I/ON/A
Serial PortN/A
Built-in MicN/A
Built-in SpeakerN/A
WIFIN/A
Network1 × RJ45 10 M/100 M Base-TX Ethernet
Video OutputN/A
Certification
EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035)
FCC (FCC 47 CFR part15 B)
SafetyCE LVD (EN 62368-1)
CB (IEC 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
ProtectionIP67 (IEC 60529)
IK10 (IEC 62262)
General
PowerDC 12 V±25%, PoE (IEEE 802.3af)
Power ConsumptionMax. 5.0 W
Power InterfaceØ5.5 mm coaxial power plug
DimensionsØ118 mm × 95 mm (Ø4.6″ × 3.8″) (Ø × H)
Weight0.28 kg (0.62 lb)
MaterialMetal + Plastic
Working Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection4 KV
Reset ButtonN/A
Web Client Language1 Language: English
Additional information
Weight1 kg
Dimensions10 × 10 × 10 cm
