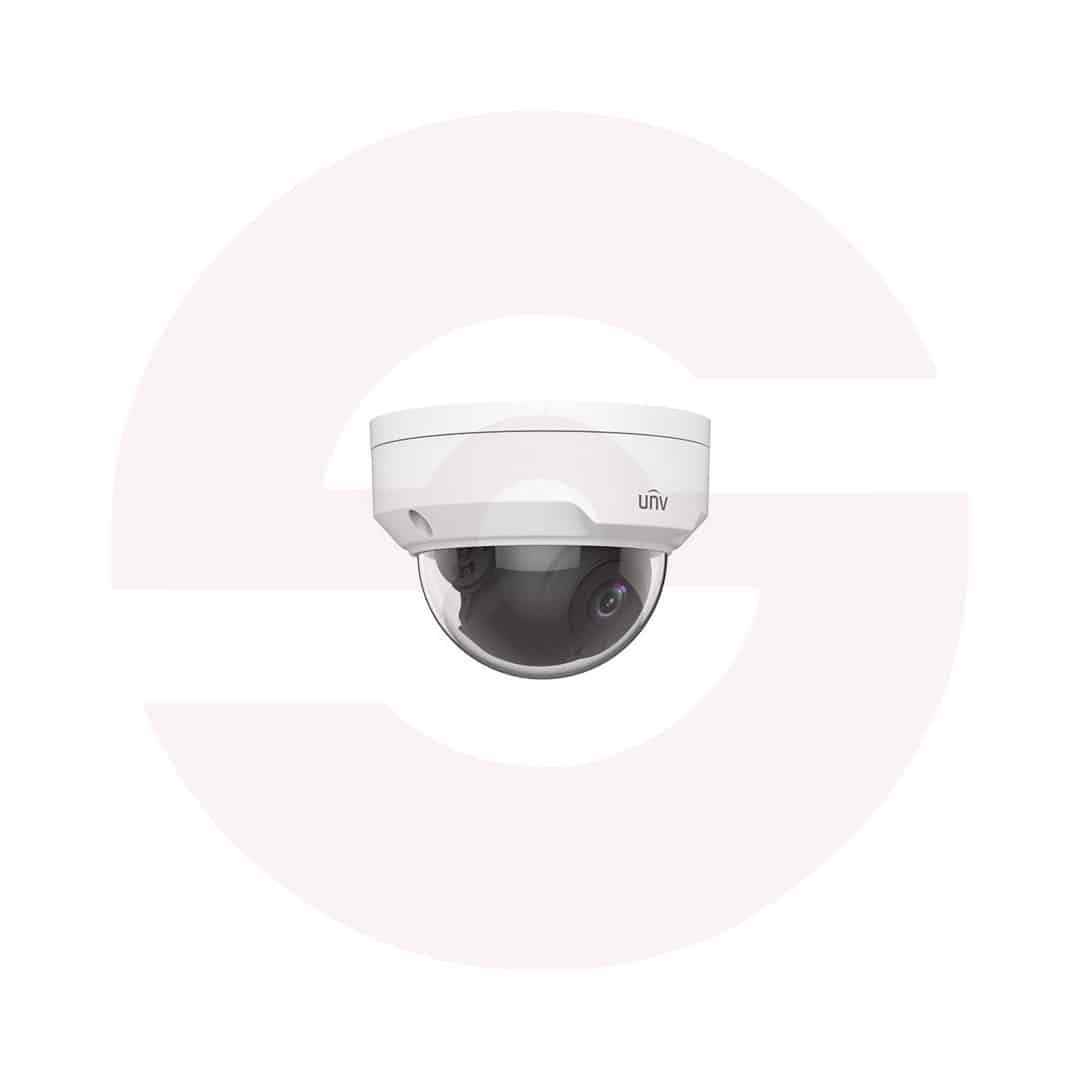

Uniview IPC322LB-SF28-A

IPC322LB-SF28(40)-A

High quality image with 2MP, 1/2.8″CMOS sensor
2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
Ultra 265, H.265, H.264
Smart IR, up to 30m (98ft) IR distance
Day/night functionality
2D/3D DNR (Digital Noise Reduction)
IP67 protection
IK10 vandal resistant
Support PoE power supply
2-Axis

Specifications
IPC322LB-SF28-A IPC322LB-SF40-A
Camera
Sensor 1/2.8″, progressive scan, 2.0 megapixel, CMOS
Lens 2.8mm@F2.0 4.0mm@F2.0
DORI Distance
Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8 43.4 17.4 8.7 4.3
4.0 62.1 24.8 12.4 6.2
Angle of View (H) 106.7° 87.5°
Angle of View (V) 57.1° 46.3°
Adjustment angle Pan: 3° ~ 360° Tilt: 0° ~ 75°
Shutter Auto/Manual, 1 ~ 1/100000s
Minimum Illumination
Colour: 0.01Lux ( F2.0, AGC ON)
0Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >52dB
IR Range Up to 30m (98ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Defog Digital Defog
WDR DWDR
Video
Video Compression Ultra 265, H.265, H.264
H.264 code profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Smart IR Supported
Flip Normal/Vertical/Horizontal/180°
Dewarping N/A
HLC Supported
BLC Supported
Network
Protocols IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP
