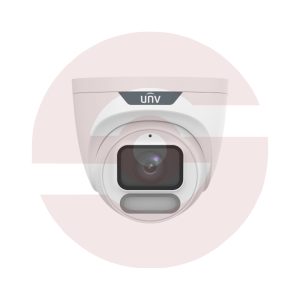

Uniview IPC3624LE-ADF28K-WP
Uniview IPC3624LE-ADF28K-WP
Back to products
Next product
Uniview IPC2324LB-ADZK-H
Uniview IPC2324LB-ADZK-H

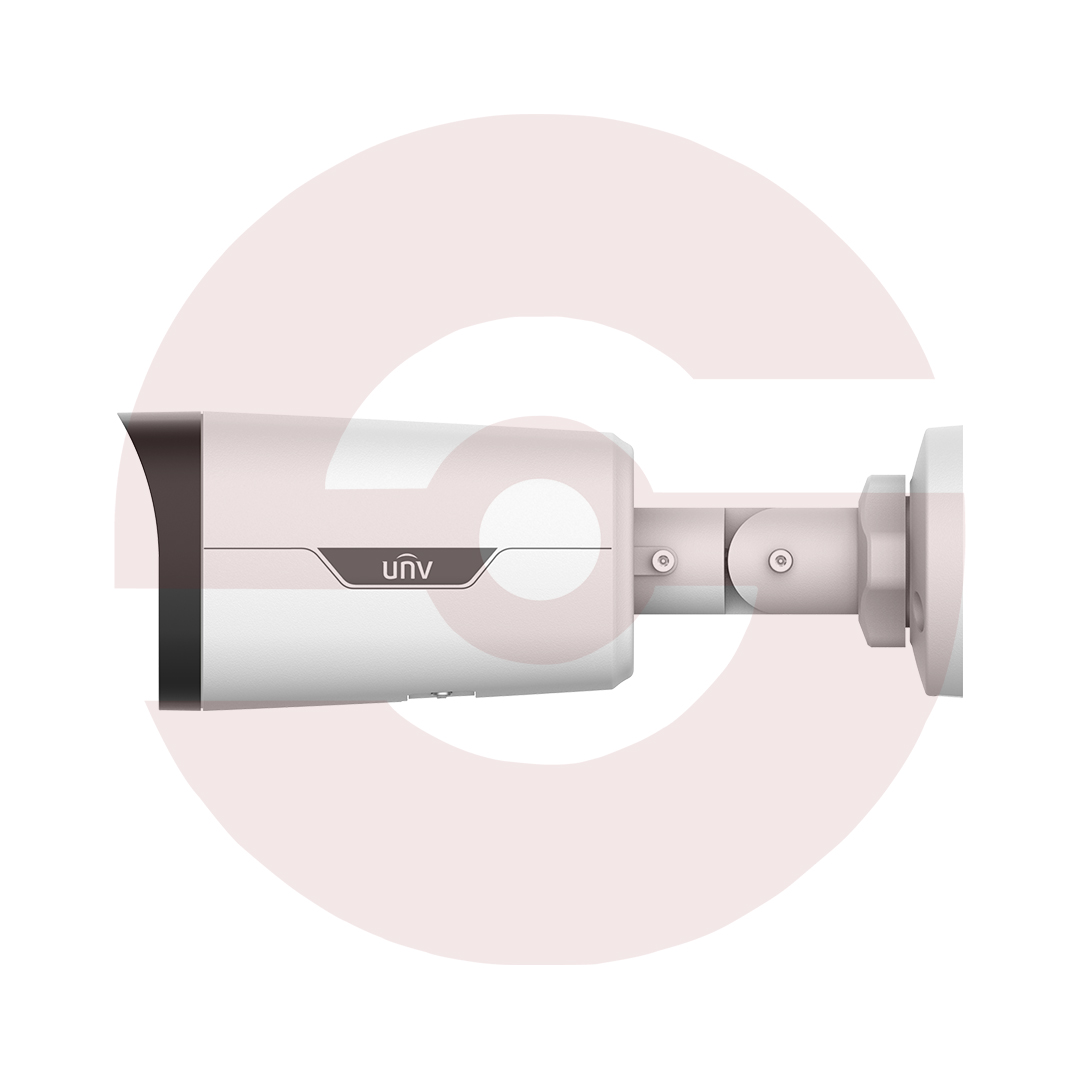

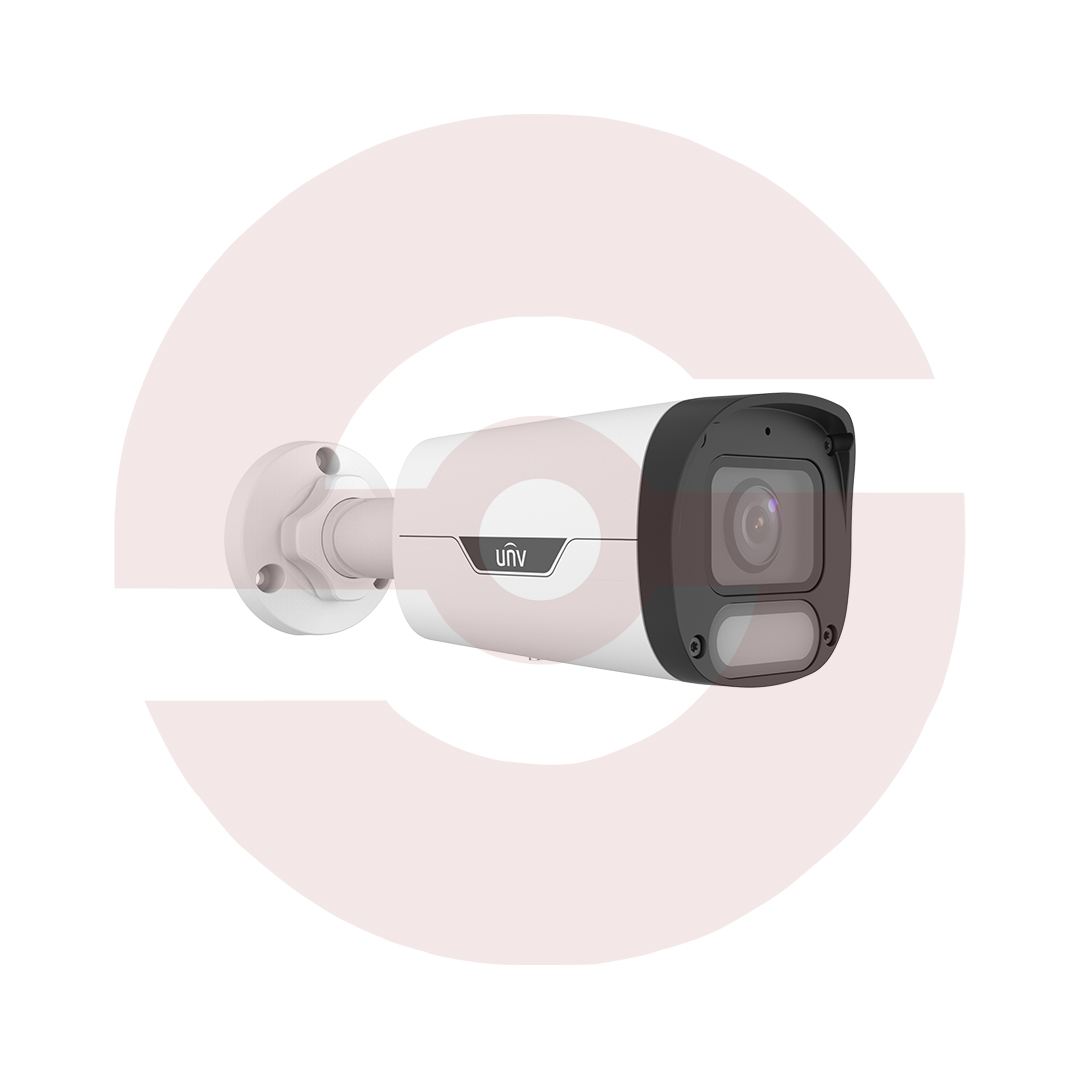

Uniview IPC2318LE-ADF28KM-WP

8MP ColorHunter Wise-ISP Warm Light Bullet Network Camera

• High quality image with 8MP, 1/1.8″CMOS sensor and F1.0 large aperture lens
• 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
• Ultra 265, H.265, H.264, MJPEG
• Colorhunter with Wise-ISP technology ensures 24-hour full-color images
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic
• White Light, up to 30m warm light distance
• Supports 512 GB Micro SD card
• IP67 protection
• Support PoE power supply
• 3-Axis
Compare
Add to wishlist
SKU: IPC2318LE-ADF28KM-WP Categories: ,
Description
Camera
Max Resolution8MP
Sensor1/1.8″ CMOS
Min. IlluminationColour: 0.0003 lux (F1.0, AGC ON)
ShutterAuto/Manual, 1 ~ 1/100000s
Adjustment AnglePan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°
S/N>52dB
WDR120dB
Lens
Focal Length2.8 mm4.0 mm
Iris TypeFixed
IrisF1.0
Field of View (H)111.0°94.2°
Field of View (V)63.0°51.0°
Field of View (D)131.0°111.7°
Lens TypeFixed
DORI
DORI Distance (Lens)2.8mm4.0mm
DORI Distance (Detect)63.0 (206.7ft)90.0(295.3ft)
DORI Distance (Observe)25.2 (82.7ft)36.0(118.1ft)
DORI Distance (Recognize)12.6 (41.3ft)18.0(59.1ft)
DORI Distance (Identify)6.3 (20.7ft)9.0(29.5ft)
Illuminator
Supplemental LightWarm Light
Illumination Distance (Warm Light)30 m (98.4 ft)
Light On/Off ControlAuto/Manual
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 Code ProfileBaseline profile, Main profile, High profile
Frame RateMain Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
Sub Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps
Video Bit Rate128 Kbps ~ 6144 Kbps
U-codeSupport
OSDUp to 4 OSDs
Privacy MaskUp to 4 areas
ROIUp to 8 areas
Video StreamDual Streams
White BalanceAuto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
Digital Noise Reduction2D/3D DNR
Smart IlluminationSupport
FlipNormal, Flip Vertical, Flip Horizontal, 180°, 90°Clockwise, 90°Anti-clockwise
DewarpingN/A
HLCSupport
BLCSupport
DefogDigital Defog
Image StabilizationN/A
Events
Basic DetectionMotion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection
General FunctionWatermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication
Intelligent
Smart Intrusion Prevention (Lite)Intrusion, Crossline Detection (Both detection are based on human body and vehicle detection)
Audio
Audio CompressionG.711U, G.711A
Audio Bitrate64 Kbps
Two-way AudioN/A
SuppressionSupport
Sampling Rate8 KHz
Storage
Edge StorageMicro SD, up to 512 GB
Network StorageANR, NAS (NFS)
Network
ProtocolsIPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
Compatible IntegrationONVIF (Profile S, Profile G, Profile T),
API, SDK
User/HostUp to 32 users, 2 user levels: administrator and common user
SecurityPassword Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
ClientUNV-Link, UNV-Link Pro, EZStation
Web BrowserPlug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above, Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface
Audio I/ON/A
Alarm I/ON/A
Serial PortN/A
Built-in MicSupport
Built-in SpeakerN/A
WIFIN/A
Network1 x RJ45 10M/100M Base-TX Ethernet
Video OutputN/A
Certification
EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035)
FCC (FCC 47 CFR part15 B)
SafetyCE LVD (EN 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
ProtectionIP67 (IEC 60529)
General
PowerDC 12V±25%, PoE (IEEE 802.3af)
Power ConsumptionMax 3.9W
Power InterfaceØ 5.5 mm coaxial power plug
Dimensions206 × 73 × 73mm (8.1” × 2.9” × 2.9”) (L x W x H)
Weight0.48kg(1.06lb)
MaterialMetal
Working Environment-30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing)
Storage Environment-30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing)
Surge Protection4KV
Reset ButtonSupport
Web Client Language13 Languages
English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian
Additional information
Weight1 kg
Dimensions10 × 10 × 10 cm
