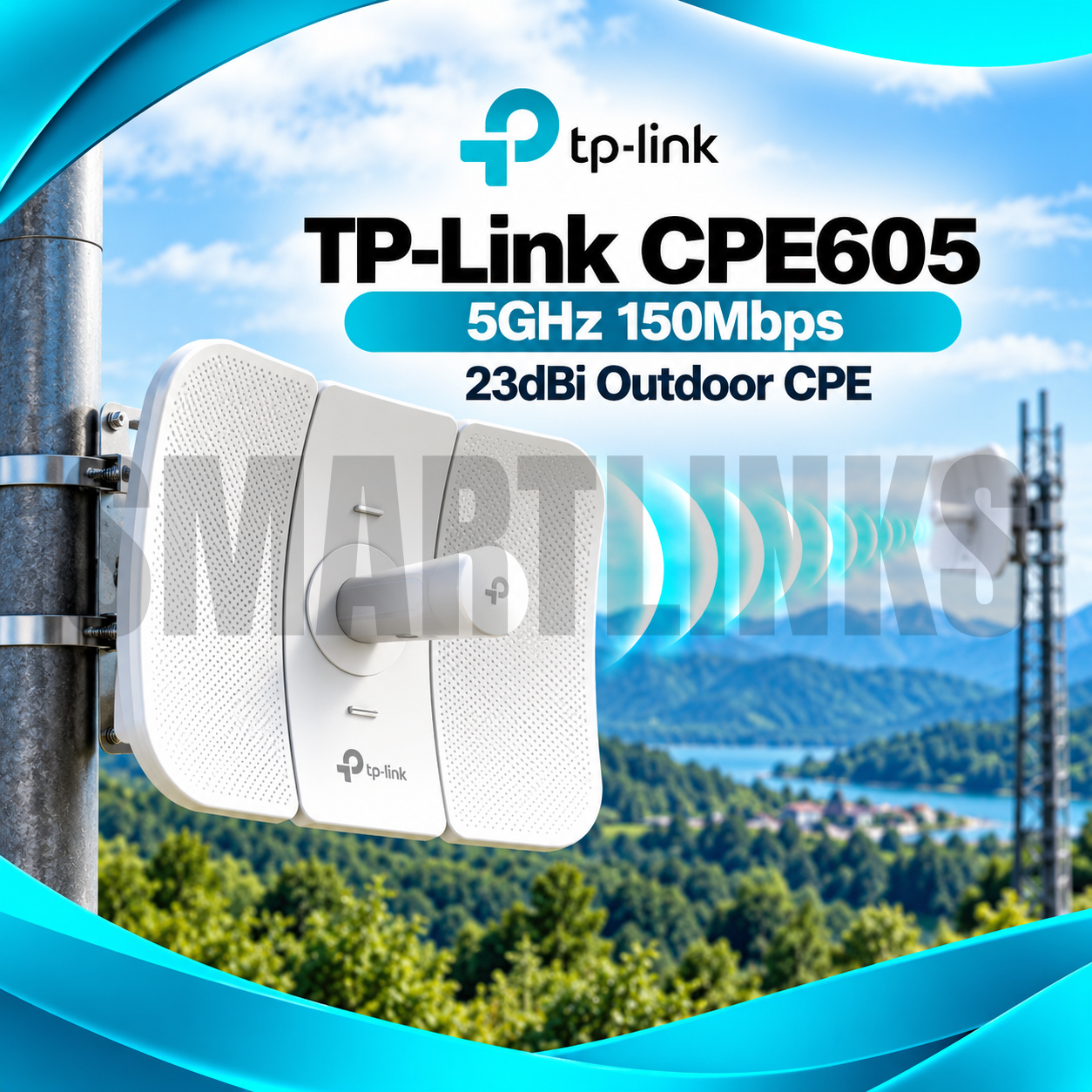

TP-Link CPE605 5GHz Outdoor CPE 23dBi 150Mbps

TP-Link CPE605 for Long-Distance Outdoor Networking

The TP-Link CPE605 is a professional outdoor wireless CPE designed to build focused, dependable connections between separated locations. Operating on the 5GHz band, it combines wireless link rates of up to 150Mbps with a powerful 23dBi directional antenna. This makes it a practical option for connecting buildings, extending networks across open spaces, and supporting outdoor surveillance infrastructure where suitable line of sight is available. Professional installers should evaluate line of sight, Fresnel zone clearance, mounting height, and cable protection before deployment. Nearby buildings, trees, and terrain can obstruct transmission, so advertised wireless rates must never be mistaken for guaranteed internet speeds at any distance. Careful planning also improves consistency during seasonal changes.

Focused 23dBi Directional Antenna

Unlike ordinary indoor WiFi routers that distribute signals broadly, the TP-Link CPE605 directs wireless energy toward a specific endpoint. Its high-gain Cassegrain antenna and metal reflector help concentrate transmission, reduce interference from unwanted directions, and improve signal reception. A narrow beamwidth of approximately seven degrees horizontally and ten degrees vertically allows precise alignment for demanding outdoor links.

Efficient 5GHz Wireless Performance

The CPE605 supports IEEE 802.11a/n wireless standards and offers a maximum theoretical wireless rate of 150Mbps under supported conditions. Its 5GHz operating band can help avoid congestion commonly associated with busy 2.4GHz environments. Actual throughput depends on distance, alignment, interference, channel configuration, connected equipment, and local regulations. The built-in 10/100Mbps Ethernet port should also be considered when planning available wired bandwidth.

MAXtream Technology for Network Stability

TP-Link Pharos MAXtream uses time division multiple access technology to coordinate transmissions between compatible devices. When appropriately configured, this feature can reduce wireless contention and improve network efficiency, latency, and capacity in supported deployments. It is especially useful for professionally managed outdoor installations that connect remote buildings or multiple wireless endpoints. Compatibility and configuration should be checked before designing the network.

Durable Weatherproof Construction

Outdoor equipment must withstand changing weather conditions. The TP-Link CPE605 features an IP65 rated enclosure that protects against dust and water jets when installed correctly. Integrated protection rated at 15kV against electrostatic discharge and 6kV against lightning related surges adds resilience in exposed environments. These features do not replace appropriate grounding, surge protection, or safe installation practices.

Its robust structure includes convenient snap-lock components and pole mounting hardware. Three-axis adjustment helps installers aim the directional antenna, while the wind-resistant design supports stable placement on suitable mounting structures.

Convenient Passive PoE Installation

Passive Power over Ethernet allows network data and electrical power to reach the device through a single Ethernet cable. This can simplify installation on rooftops, towers, poles, and other locations where separate power outlets are inconvenient. Use the specified compatible passive PoE supply rather than assuming compatibility with every standard PoE switch or injector.

Simple Configuration and Centralized Management

Network administrators can configure the TP-Link CPE605 through its web-based PharOS management interface. Supported tools help with wireless settings, device monitoring, troubleshooting, and ongoing maintenance. For installations involving multiple compatible devices, free Pharos Control software provides centralized discovery, monitoring, and administration, helping teams maintain outdoor connectivity with fewer routine site visits.

Ideal Applications and Buying Guidance

The TP-Link CPE605 suits point-to-point wireless bridging, remote network extension, and connectivity for outdoor IP camera installations when the complete network is properly designed. For a wireless bridge, plan suitable equipment at both ends, confirm a clear wireless path, and check site-specific conditions. Choose this outdoor CPE when directional reach, manageable configuration, and weather resistance matter more than broad indoor WiFi coverage.

Order the TP-Link CPE605 from Smartlinks.pk for your outdoor networking project and check current stock and compatibility before purchasing.
