| HARDWARE FEATURES | |
|---|---|
| Dimensions ( W x D x H ) | 3.7 × 4.8 × 0.8 in (95.2 ×120.8 ×21.5 mm) |
| Antenna | 2× High-Gain Tri-Band Antennas |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11a/b/g/n/ac/ax |
| WLAN Signal Rate | 6 GHz: 11ax: Up tp 2402Mbps 5 GHz: 11ax: Up to 2402 Mbps(dynamic) 11ac: Up to 1732 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic) 2.4 GHz: 11ax: Up to 574 Mbps(dynamic) 11n: Up to 400 Mbps(dynamic) 11g: Up to 54 Mbps(dynamic) 11b: Up to 11 Mbps(dynamic) |
| WLAN Reception Sensitivity | 6 GHz: 11ax HE160 MCS0:-86 11ax HE160 MCS11:-56 5 GHz: 11ax HE80 MCS0: -90 dBm 11ax HE80 MCS11: -59 dBm 11a 54Mbps: -77 dBm 11ac VHT80 MCS0: -92dBm 11ac VHT80 MCS9: -64dBm 2.4 GHz: 11ax HE40 MCS0: -91 dBm 11ax HE40 MCS11: -60 dBm 11g 54Mbps: -76 dBm 11n HT40 MCS7: -72dBm |
| WLAN Transmit Power | 5 GHz: 20dBm(FCC) /15dBm(CE) (EIRP) 2.4 GHz: 20dBm(FCC) / 16dBm(CE) (EIRP) 6 GHz: 12dBm(FCC) |
| WLAN Modes | Infrastructure mode |
| Wireless Security | WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |

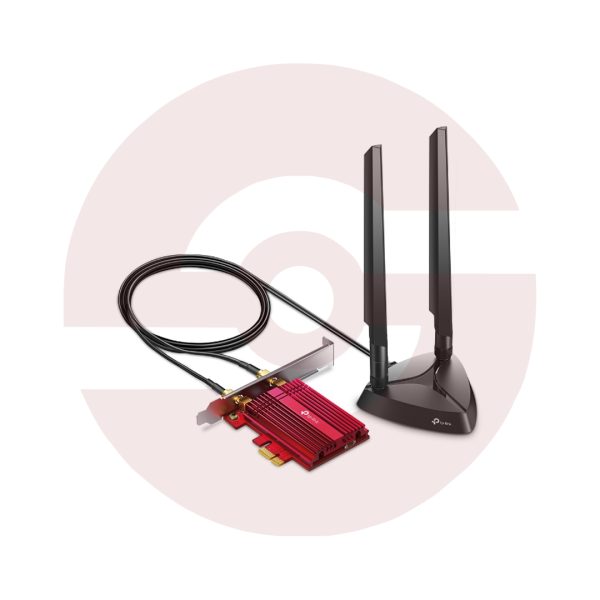

| Package Content | Archer TXE75E Magnetized Antenna Base with 1m RF Cable 2× High-Gain Antennas Low-Profile Bracket Bluetooth Header Cable Quick Installation Guide Resource CD |
| System Requirements | Supported operating systems include Windows 10, 11(64-bit). Currently 6 GHz Band only supported on Windows 11. |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Accessories Specifications | Extension Cable Length: 1 m Bluetooth Header Cable Length: 0.3 m |
