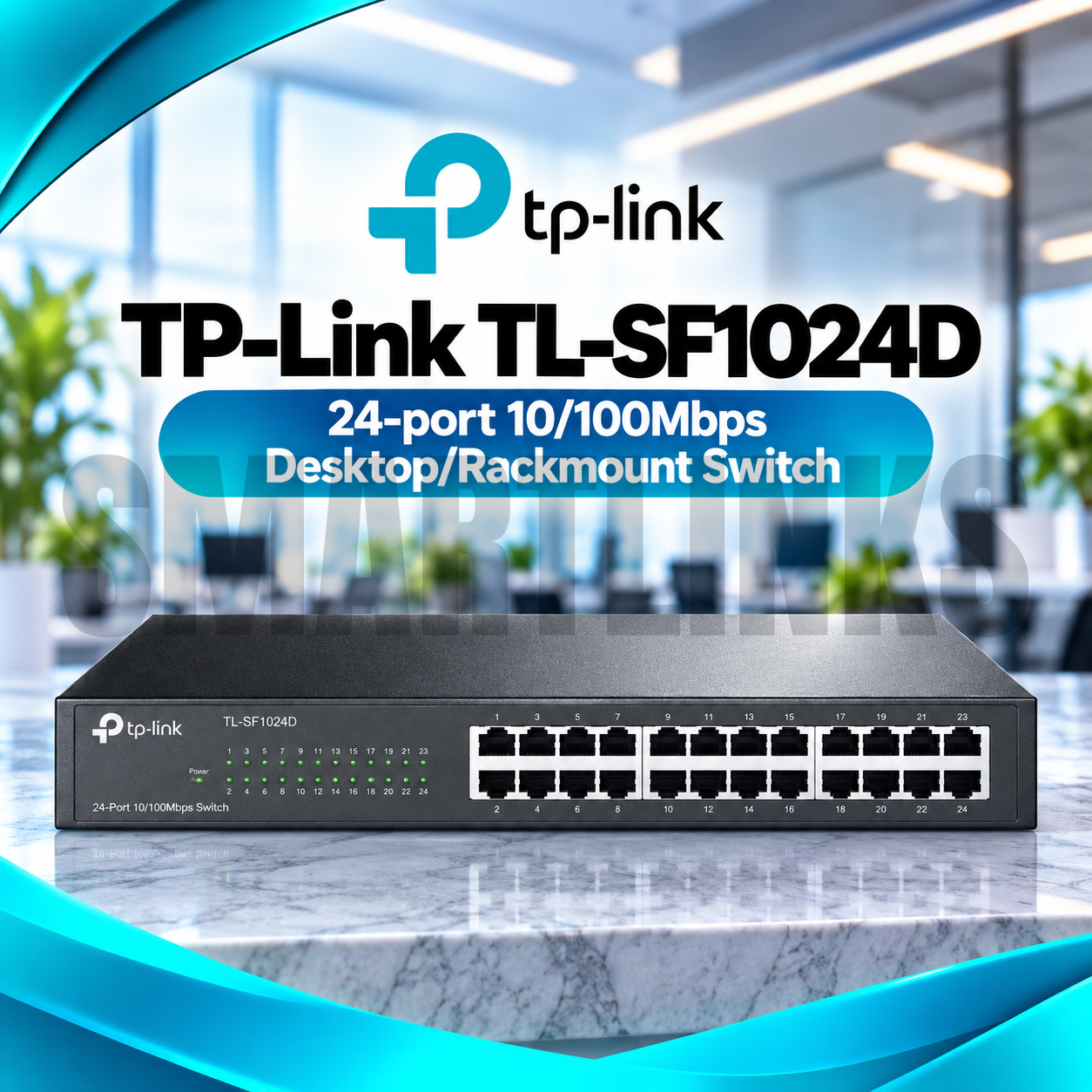

TP-Link TL-SF1024D 24-Port 10/100Mbps Desktop/Rackmount Switch – 4.8Gbps, Plug & Play, Energy Efficient

TP-Link TL-SF1024D 24-Port Desktop/Rackmount Switch

The TP-Link TL-SF1024D is an unmanaged Fast Ethernet switch designed for offices, shops, schools, computer labs, and other workplaces that need multiple wired connections. With twenty-four RJ45 ports, it helps connect desktop computers, printers, routers, and compatible network equipment through an existing local network. Its straightforward operation, metal housing, and flexible installation options make it a practical solution for expanding everyday connectivity without introducing complex management requirements.

Twenty-Four Fast Ethernet Ports

Each Ethernet port supports 10Mbps or 100Mbps communication and automatically negotiates a compatible speed with the connected device. This allows older Ethernet equipment and newer Fast Ethernet devices to share the same switch. For a typical installation, connect one port to your router or upstream network, leaving twenty-three available for other wired devices. Remember that this model offers Fast Ethernet, not Gigabit speeds, so confirm your bandwidth needs before purchasing.

Efficient Local Network Performance

The TL-SF1024D provides a manufacturer-rated 4.8Gbps switching capacity and a packet forwarding rate of 3.57 million packets per second. An 8K MAC address table supports automatic learning of connected device addresses, helping the switch direct Ethernet traffic to appropriate ports. Its store-and-forward method checks incoming frames before forwarding them. IEEE 802.3x flow control also supports smoother transmission under compatible operating conditions, although actual performance depends on network demand and cabling.

Plug-and-Play Installation

No controller, subscription, or configuration software is necessary to start using this unmanaged switch. Connect the correct power supply, attach suitable Ethernet cables, and check the port indicators to confirm active connections. Auto MDI/MDIX removes the need to select crossover cables for routine links, while automatic negotiation simplifies mixed-speed installations. The switch extends wired network connectivity but does not replace a router, provide wireless coverage, or assign internet service by itself.

Energy-Saving Green Ethernet

TP-Link Green Ethernet technology adjusts energy use in response to link status and cable conditions. This can help reduce unnecessary power consumption when certain ports are unused or connected through shorter cables. TP-Link advertises potential savings of up to 75 percent compared with selected conventional switches, but actual results vary by installation. Fanless construction also keeps the switch quiet, making it suitable for work areas where constantly running cooling fans would be distracting.

Durable Desktop and Rackmount Design

The compact steel enclosure supports desktop placement and installation in a compatible rack with suitable mounting accessories. It fits neatly into organized networking areas, including office cabinets and equipment shelves. Arrange cables clearly, leave enough ventilation around the housing, and protect the unit from moisture and excessive heat. Power arrangements can differ by hardware revision, so check the label and supplied accessories instead of assuming that every TL-SF1024D uses the same adapter.

Suitable Networking Applications

Use the TL-SF1024D for office workstations, billing counters, shared network printers, training rooms, and other applications with moderate data requirements. It can also carry Ethernet data to compatible cameras or recorders, but it does not provide Power over Ethernet. Devices requiring PoE need a separate compatible power source or PoE switch. For 100Mbps links, use appropriate Category 5 or better cabling and follow normal Ethernet distance limits.

Buy TP-Link TL-SF1024D in Pakistan

The TP-Link TL-SF1024D offers a convenient way to add numerous wired connections to an existing network while keeping installation simple. Before ordering from Smartlinks Pakistan, verify your desired port count, internet speed, mounting arrangements, hardware revision, stock availability, and local warranty terms. For higher-speed file transfers or modern Gigabit equipment, consider a Gigabit model instead. For best results, label each cable, document which ports serve priority equipment, and check that every connected device has an appropriate, compatible power source.
