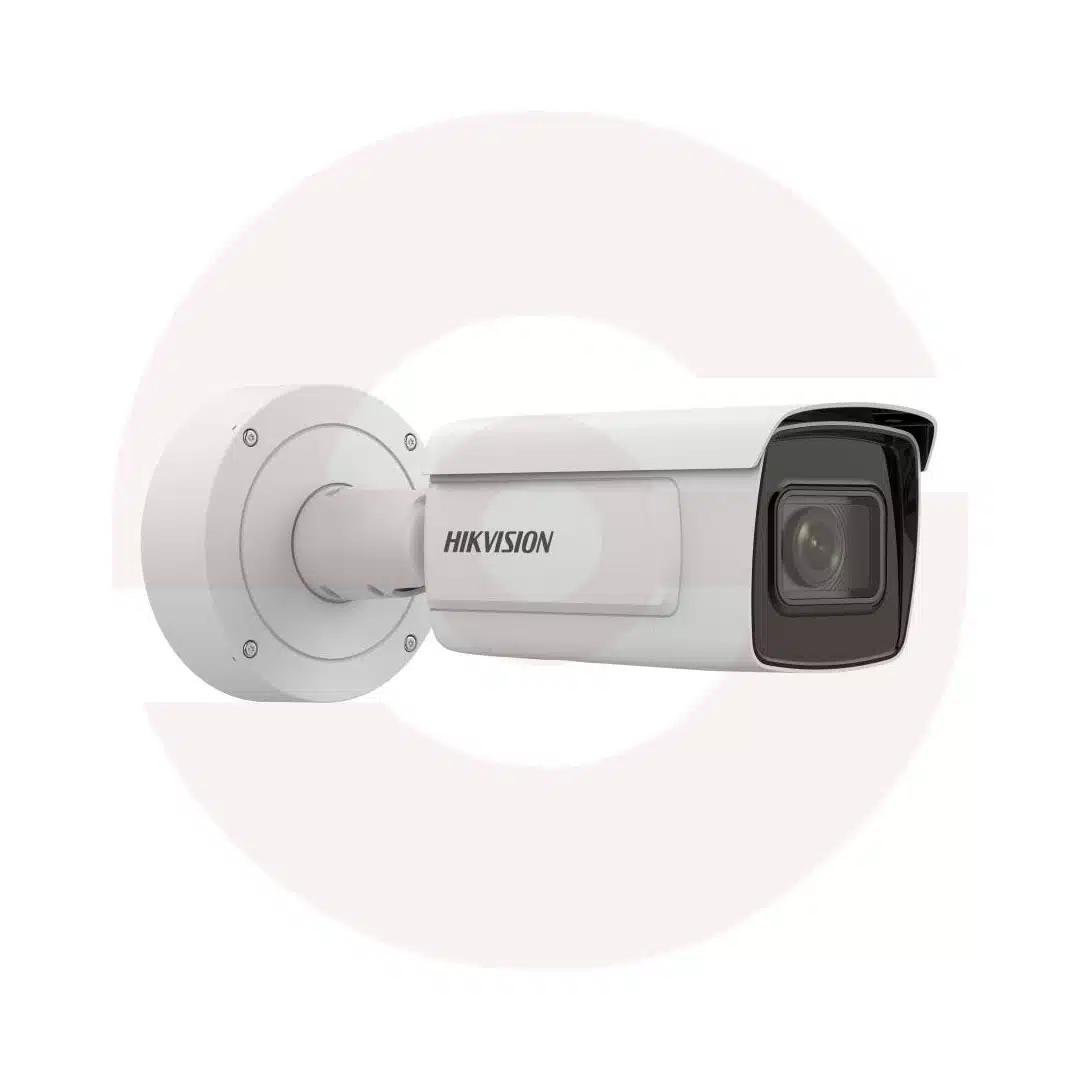

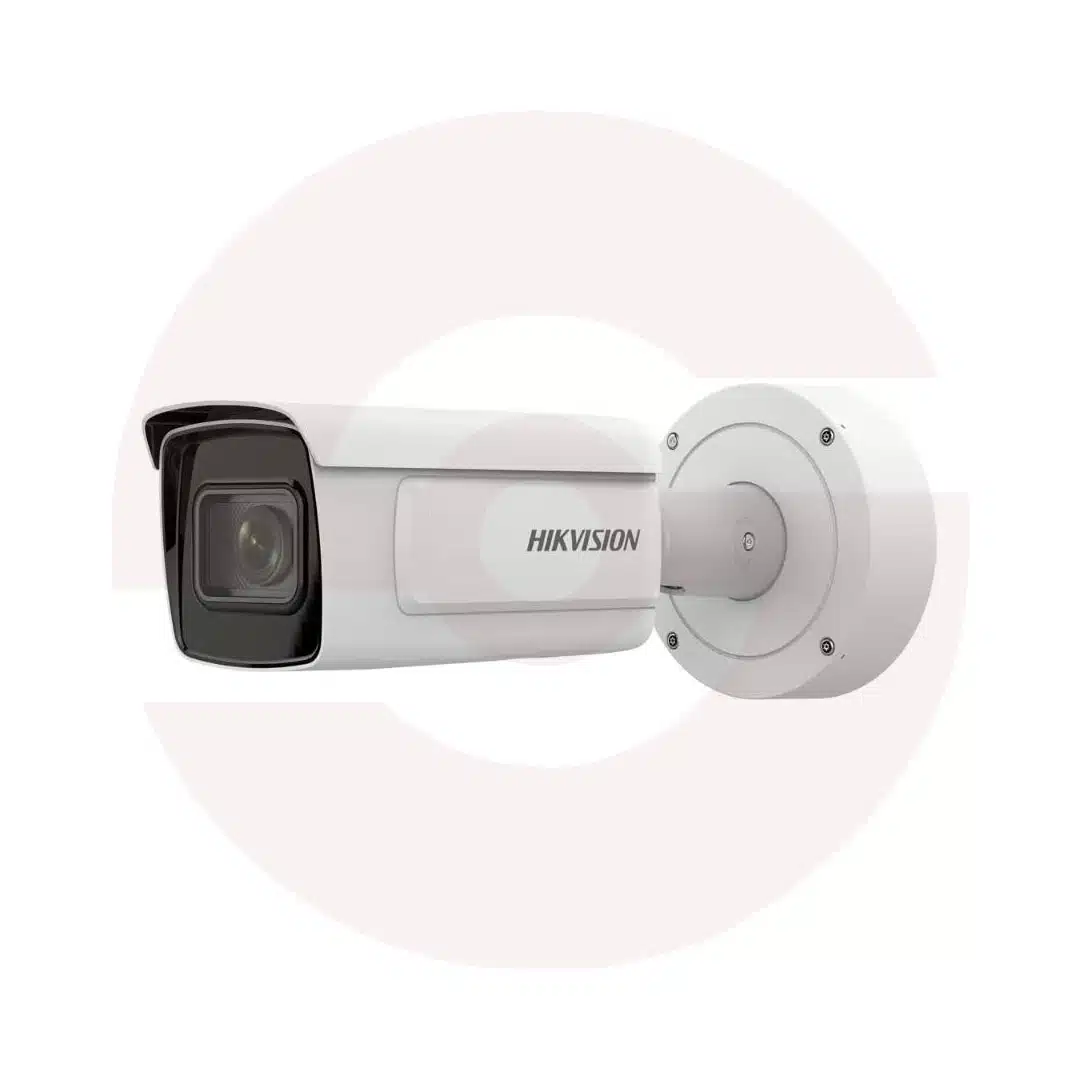

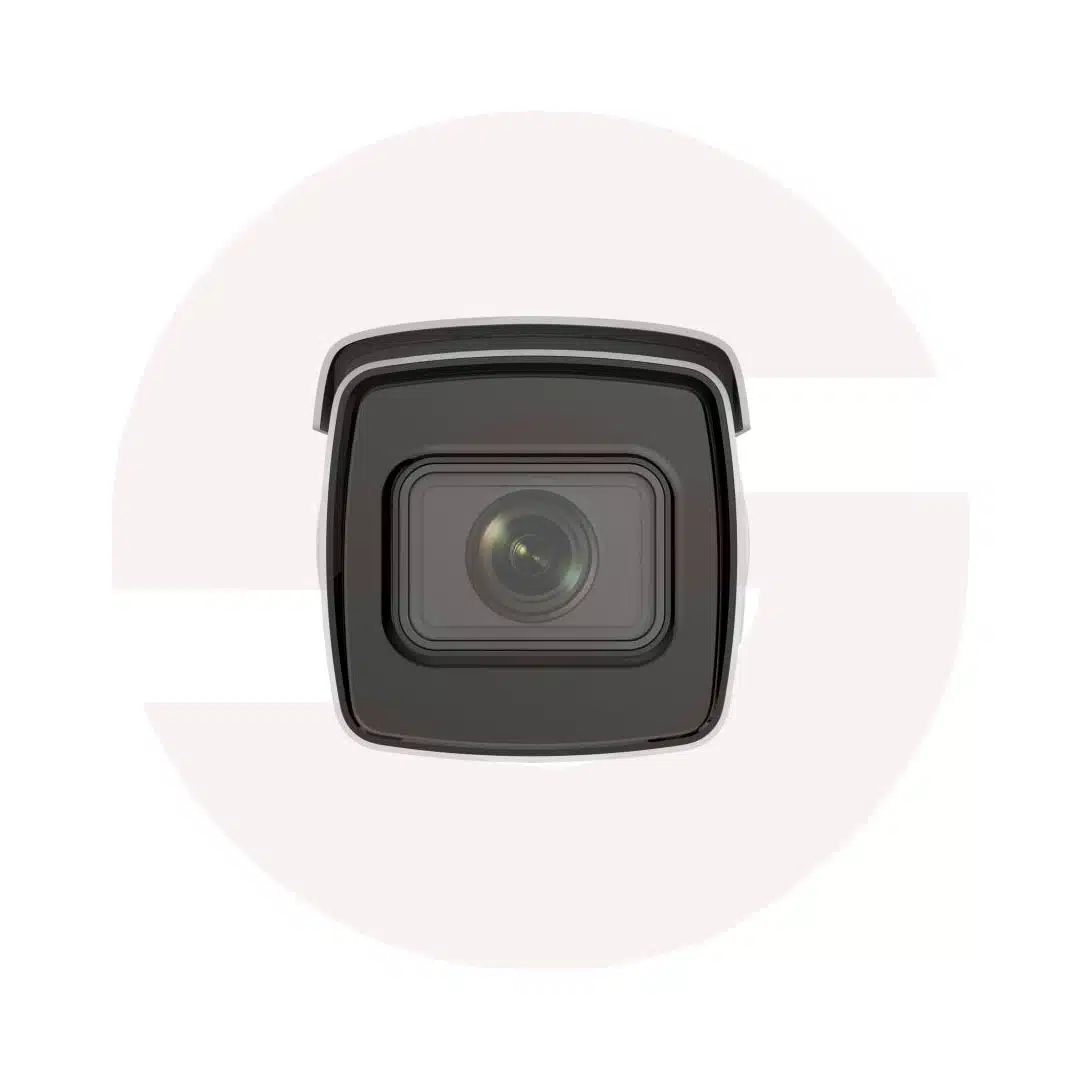

Hikvision iDS-2CD7A46G0/P-IZHS

4MP DeepinView ANPR Moto Varifocal Bullet Camera

High quality imaging with 4 MP resolution
Excellent low-light performance via DarkFighter technology
Clear imaging against strong back light due to 140 dB WDR technology
License Plate Recognition
Efficient H.265+ compression technology to save bandwidth and storage
5 streams to meet a wide variety of applications
Water and dust resistant (IP67) and vandal proof (IK10)

Camera
Image Sensor 1/1.8″ Progressive Scan CMOS
Max. Resolution 2688 × 1520
Min. Illumination
Color: 0.0005 Lux @ (F1.2, AGC ON);
B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time 1 s to 1/100,000 s
Day & Night
IR cut filter
Blue glass module to reduce ghost phenomenon

Lens
Focal Length & FOV
2.8 to 12 mm, horizontal FOV: 114.5° to 41.8°, vertical FOV: 59.3° to 23.6°, diagonal FOV: 141.1° to 48°
8 to 32 mm, horizontal FOV: 42.5° to 15.1°, vertical FOV: 23.3° to 8.64°, diagonal FOV: 49.6° to 17.3°
FocusAuto,Semi-auto,Manual
Iris TypeP-iris
Aperture
2.8 to 12 mm: F1.2 to F2.5
8 to 32 mm: F1.7 to F1.73

DORI
DORI
Wide:
2.8 to 12 mm: D: 60 m, O: 23.8 m, R: 12 m, I: 6 m
8 to 32 mm: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15 m
Tele:
2.8 to 12 mm: D: 149 m, O: 59.1 m, R: 29.8 m, I: 14.9 m
8 to 32 mm: D: 400 m, O: 158.7 m, R: 80 m, I: 40 m

Illuminator
Supplement Light Type IR
Supplement Light Range
2.8 to 12 mm: 50 m
8 to 32 mm: 100 m
Smart Supplement Light Yes
IR Wavelength 850 nm

Video
Main Stream
50 Hz:
25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
50 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz:
30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
60 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fourth Stream
50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
Fifth Stream
50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
Fourth stream: H.265/H.264/MJPEG,
Fifth stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile, Main Profile, High Profile
H.265 Type Main Profile
Bit Rate Control CBR,VBR
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region Of Interest (ROI)4 fixed regions for each stream
Target CroppingYes

Audio
Audio Type Mono sound
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering Yes

Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
Simultaneous Live ViewUp to 20 channels
APIOpen Network Video Interface (Profile S, Profile G, Profile T, Profile M),ISAPI,SDK,ISUP
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
Network Storage
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client iVMS-4200,Hik-Connect,Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Parameters SwitchYes
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Day/Night Switch Day, Night ,Auto, Schedule, Alarm Trigger, Video Trigger
Wide Dynamic Range (WDR)140 dB
SNR≥ 52 dB
Image Enhancement BLC,HLC,3D DNR,Distortion Correction,Defog
Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
Image StabilizationEIS
Privacy Mask 8 programmable polygon privacy masks

Interface
Video Output1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
Ethernet Interface 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
Audio With -Y: 1 input (line in), 1 output (line out), 3.5 mm connector
Alarm 2 inputs, 2 outputs (max. 24 VDC, 1 A)
RS-485With -Y: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Key Yes
Power OutputWith -Y: 12 VDC, max. 100 mA
Wiegand-Y: 1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72bit)

Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error),video quality diagnosis, vibration detection
Smart Eventscene change detection,audio exception detection,defocus detection
LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning

Deep Learning Function
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
Support combined event alarm triggering
Road Traffic And Vehicle Detection
Smart Function:
Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario)
Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc.
Support vehicle and non-vehicle counting
Blocklist and allowlist: up to 10,000 records
LPR Countries/Regions:
4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions
Accuracy (Under recommended installation and lighting conditions):
License plate recognition rate ≥98%
Capture rate ≥99%
Driving direction accuracy rate ≥98%
Vehicle Capture Speed:
Front installation in checkpoint scenario: up to 120 km/h
Side installation: up to 80 km/h
Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode
MetadataIntrusion detection,line crossing detection,region entrance detection,region exiting detection,road traffic
Parking Management
Support distant view mode and close view mode
Distant view mode: support status detection on up to 40 parking spaces, parking duration detection, and vacant parking space alarm
Close view mode: support status detection on up to 4 parking spaces, license plate recognition, parking timeout alarm, and vacant parking space alarm

General
Power
12 VDC ± 20%, 1.19 A, max. 14.28 W, three-core terminal block,
PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.396 A to 0. 295 A, max. 16.8 W
MaterialAluminum alloy body
Dimension
Without -Y: Ø144 mm × 347 mm (Ø5.7″ × 13.7\”)
With -Y: Ø140 mm × 351 mm (Ø5.5 × 13.8\”)”
Package Dimension405 mm × 190 mm × 180 mm (15.9″ × 7.5″ × 7.1″)
Weight Approx. 1950 g (4.2 lb.)
With Package Weight Approx. 3070 g (6.7 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function Anti-banding, EPTZ, heartbeat, mirror, flash log, password reset via email, pixel counter
HeaterYes
Device Management Supports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces

Approval
EMC
FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
Safety
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,
LOA: IEC/EN 60950-1
Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013,IK10: IEC 62262:2002
Anti-Corrosion Protection -Y: NEMA 4X (NEMA 250-2018)
Automotive And Railway EN50121-4
Other PVC FREE
