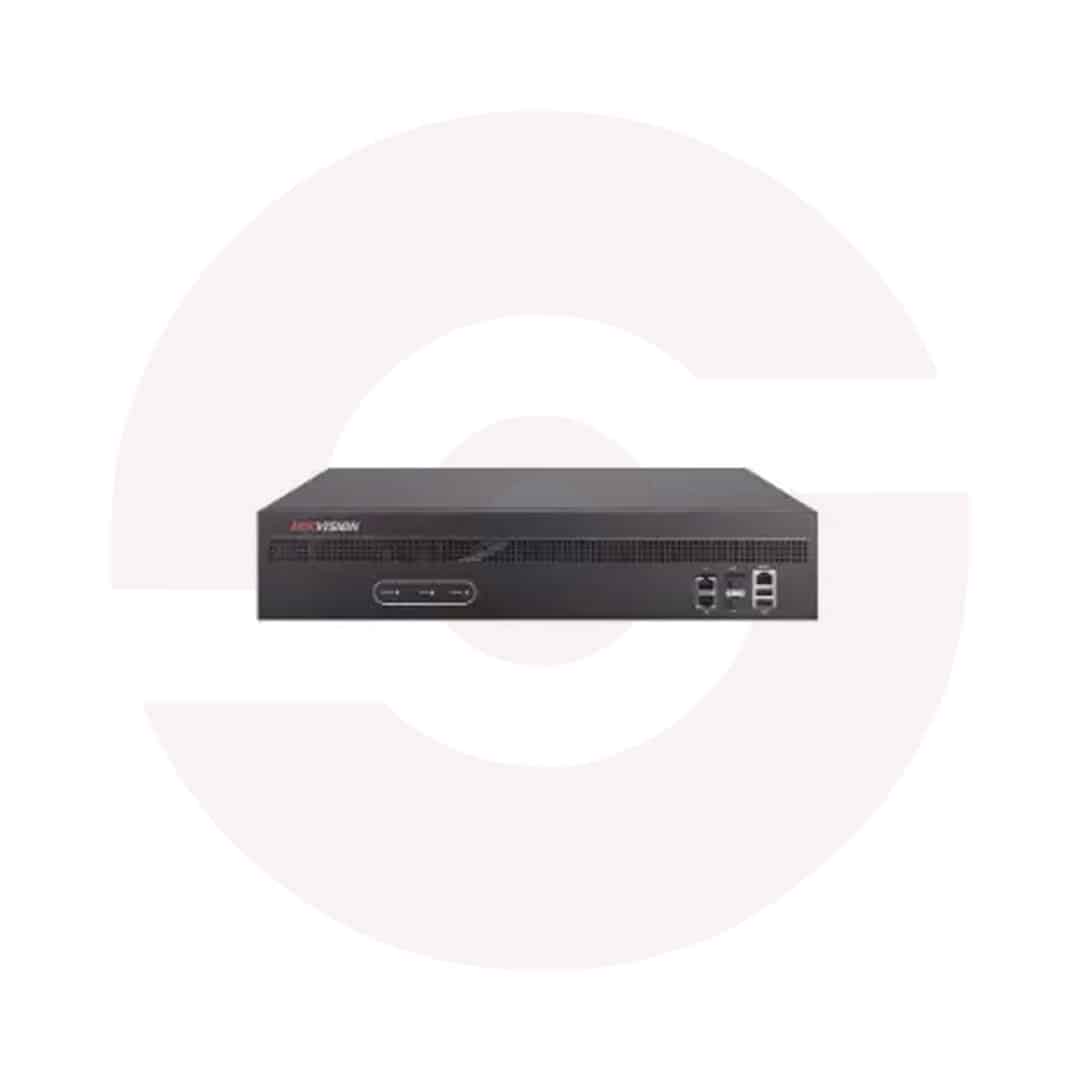

Hikvision DS-6916UDI

4K Decoder

Provides HDMI (adaptable to DVI-D) and BNC output interfaces.
Up to 4K (3840 × 2160@30Hz) via HDMI output interfaces (only for odd interface).
Up to 8-ch decoding at 24 MP resolution.
H.265+/H.265, H.264+/H.264, Hik264, MPEG4 and MJPEG video compression.
PS, RTP, TS, ES, HIK encapsulation formats.
Three encoding levels: baseline, main, and high-profile.
G.722, G711A, G726, G711U, MPEG2-L2, and AAC audio compression.
Two decoding modes: active decoding and passive decoding.
Supports two-way audio via client software.
Remote video files’ decoding output.
Provides VGA and DVI input interfaces.
Supports window opening, window roaming and window split.
Supports multi-screen control with PC installed with RSC server.
Gets stream and decodes via URL and RTSP from encoding devices.
Displays the decoded video stream on the video wall by directly linking cameras or by stream media forwarding.
Configurable LED width and height parameters when the LED is connected.
Regular and irregular virtual screen configurable to display multiple signal sources and get rid of the restriction of physical screen.
Accessible by thermal network camera and you can view the temperature measurement, dynamic fire source detection, ship detection and VCA information in live view and playback.
You can enable or disable the smart information for the thermal network camera.
Port aggregation technology (Ethernet Channel).
Accessible by 2.4 MP DeepinView camera.
Two-way audio.
You can configure what the video wall shows when decoding ends and streaming fails via the Web browser and client software.

Interface
Network Interface
RJ45 interface × 2, 10/100/1000 Mbps adaptive
Optic interface × 2, 100 base-FX/1000 base-X
An RJ45 interface and an optic interface form a combo.
Serial Interface RS-232 (RJ45) × 1, RS-485 × 1
Audio Output 16 (DB15 × 2)
Two-Way Audio Out 1 (3.5 mm connector, 2.0 Vp-p, 1 KΩ)
Alarm In8
Two-Way Audio In 1 (3.5 mm connector, 2.0 Vp-p, 1 KΩ)
Alarm Out 8

General
Power Supply 100 to 240 VAC
Power Consumption ≤ 108 W
Dimensions(W × D × H)440 mm × 321 mm × 88 mm (17.32 inch × 12.64 inch × 3.46 inch)
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10% to 90%
Weight ≤ 6.4 kg (14.11 lb)

Decoding
Decoding Resolution Up to 24MP (only for 3 encoder tracks mode)
Decoding Channel 128-ch
Decoding Capability
24MP@30fps: 8-ch,
12MP@20fps:16-ch,
8MP@30fps: 32-ch,
5MP@30fps: 48-ch,
3MP@30fps: 80-ch,
1080p@30fps/3 Mbps: 128-ch
Split Screen 1/4/6/8/9/12/16/25/36

Input & Output
Input VGA, DVI-I
Input Resolution VGA, DVI-I: 1080p: 1920 × 1080@50/60 Hz, 720p: 1280 × 720@50 Hz/60 Hz
Output HDMI × 16, BNC × 8 (DB15 × 2)
Output Resolution
HDMI:
4K: 3840 × 2160@30 Hz ( for odd interface only) , 1080p: 1920 × 1080@50/60 Hz, 720p: 1280 × 720@50 Hz/60 Hz
BNC:
PAL: 704 × 576, NTSC: 704 × 480
