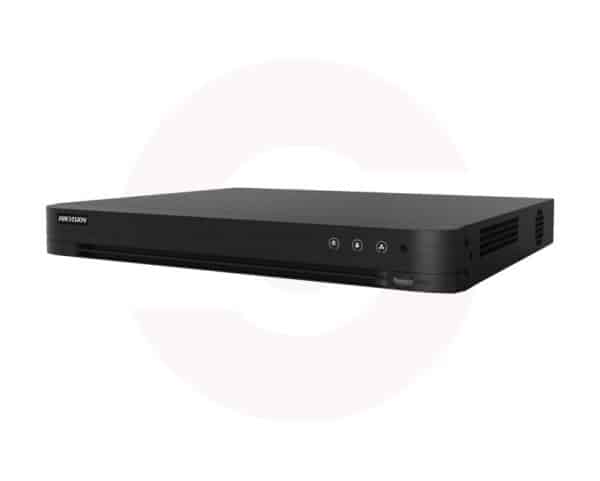

Hikvision iDS-7216HQHI-M2/FA

16-ch 1080p 1U H.265 AcuSense DVR

16 channels and 2 HDD 1U AcuSense DVR
Supports false alarm reduction based on deep learning algorithm
HDTVI/AHD/CVI/CVBS/IP video inputs
Encoding ability up to 1080p @ 15 fps
Up to 24 network cameras can be connected
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Online Access by IVMS-4500 / Hik-Connect Mobile App

- Facial Recognition
- Face Picture Library Up to 16 face picture libraries, with up to 5000 face pictures in total (each picture ≤ 1 MB, total capacity ≤ 80 MB)
- Face Picture Comparison 1-ch face picture comparison alarm (HD analog camera)
- Perimeter Protection
- Human/Vehicle Analysis Up to 4-ch
- Facial Detection
- Facial Detection And Capture Face picture comparison, face picture search
- Recording
- Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution
  When 1080p Lite mode is not enabled:
  4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF;
  When 1080p Lite mode is enabled:
  4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
- Frame Rate
  Main stream:
  When 1080p lite mode not enabled:
  For 4 MP stream access:
  4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
  For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps
  For 1080p stream access:
  1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
  For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
  When 1080p Lite mode enabled:
  4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
  Sub-stream:
  WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)
- Video Bitrate 32 Kbps to 6 Mbps
- Dual-Stream Support
- Stream Type Video, Video & Audio
- Audio Compression G.711u
- Audio Bitrate 64 Kbps
- Video And Audio
- IP Video Input
  2-ch (up to 18-ch)
  Up to 6 MP resolution
  IP enhanced mode on:
  8-ch (up to 24-ch), each up to 4 Mbps
  Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input 16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDMI Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,
  HDMI/VGA simultaneous output
- CVBS Input PAL/NTSC
- CVBS Output
  1-ch, BNC (1.0 Vp-p, 75 Ω),
  resolution: PAL: 704 × 576, NTSC: 704 × 480
- Synchronous Playback 16-ch
- HDTVI Input
  4 MP lite, 3 MP, 1080p30, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps
  *: The 3 MP signal input is only available for channel 1 of iDS-7204HQHI-M1/FA, for channel 1/2 of iDS-7208HQHI-M1/FA, and for channel 1/2/3/4 of iDS-7216HQHI-M1/FA.
- AHD Input 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
- HDCVI Input 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
- Audio Output 1-ch, RCA (Linear, 1 KΩ)
- Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ)，16-ch via coaxial cable
- Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Network
- Total Bandwidth 128 Mbps
- Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Remote Connection128
- Network Interface 1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
- Auxiliary Interface
- SATA 2 SATA interface, up to 10 TB capacity for each disk
- Serial Interface RS-485 (half-duplex)
- USB Interface
  Front panel: 1 × USB 2.0;
  Rear panel: 1 × USB 3.0
- Alarm In/Out N/A
- General
- Power Supply 12 VDC, 3.3 A
- Consumption ≤40 W
- Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity 10% to 90%
- Dimension (W × D × H)380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
- ≤ 2 kg (4.4 lb)
