| Camera | |
|---|---|
| Image Sensor | 1/3” 4-Megapixel Progressive Scan CMOS Sensor |
| Shutter Speed | Self-adaptive shutter |
| Lens | Top Lens: 2.8mm @ F1.2, Field of view : Diagonal 110°, Horizontal 96°, Vertical 54° Bottom Lens: 6mm @ F1.2, Field of view : Diagonal 60°, Horizontal 52°, Vertical 28° |
| PT Angle | Top Lens: Pan: 220°, Tilt: 10° Bottom Lens: Pan: 324°, Tilt: 90° |
| Minimum Illumination | 0.01 Lux @ (F1.2, AGC ON ), 0 Lux with IR (* data is obtained from EZVIZ laboratories) |
| Day & Night | IR-cut filter with auto switch |
| DNR | 3D DNR |
| Night Vision Distance | 35 m |
| Video & Audio | |
| Max Resolution | 2K+ (2560 × 1440) |
| Frame Rate | Max. 15fps; Self-Adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| Video Bit Rate | Quad HD; HD; Standard; Adaptive bit rate |
| Audio Bit Rate | Self-adaptive |
| Max. Bitrate | 2 Mbps (Total) |
| Network | |
| Bluetooth | Supports |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n , 802.11ax |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | WPA-PSK / WPA2-PSK, WPA3-Personal |
| Transmission Rate | 11b: 11Mbps,11g: 54Mbps,11n: 72Mbps, 11ax: 114Mbps |
| Wi-Fi Pairing | AP pairing |
| Minimum Network Requirement | 4 Mbps |
| Function | |
| Smart Alarm | AI-Powered Human Shape Detection AI-Powered Vehicle Shape Detection |
| Auto Tracking | Supports |
| Customized Alert Area | Supports |
| Two-Way Talk | Supports |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| Storage | |
| Local Storage | Supports microSD card (max. 512 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage (Subscription required) |
| General | |
| Operating Conditions | -20°C to 50°C ( -4°F to 122 °F ) Humidity 95% or less (non-condensing) |
| Battery Capacity | 10,400 mAh |
| IP Grade | IP65 |
| Power Supply | DC 5 V / 2 A (Adapter needs to be purchased separately) |
| Power Consumption | Max. 10 W |
| Specifications | |
| Model | CS-PSP8-R100-3M |
| Performance Parameter | |
| Power Voltage | 5.4 V ± 5% |
| Power Current | 1.48 A ± 5% |
| Open Circuit Voltage | 6.8 V ± 5% |
| Short Circuit Current | 1.64 A ± 5% |
| Max. Power | 8 W ± 5% |
| Interface | Type-C |
| Solar Cell Efficiency | 0.235 |
| Operating Conditions | -20 °C to 60 °C (-4 °F to 140 °F), Humidity 90% or less (non-condensing) |
| IP Grade | IP65 |
| Solar Cell Type | Monocrystalline solar cells |
| Power Cable Length | 3 meter |
| General | |

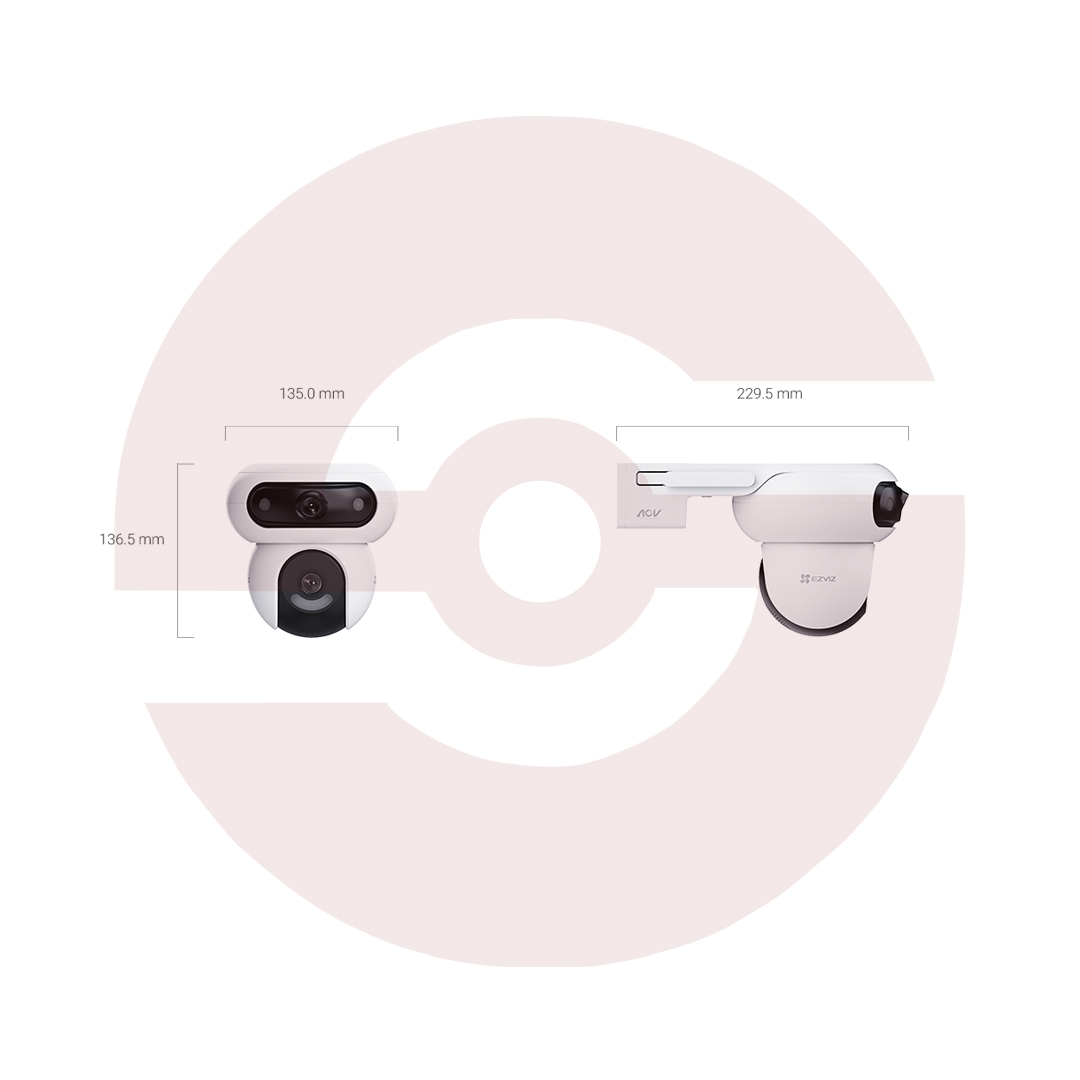

| Product Dimensions | HB90 Dual: 135 × 136.5 × 229.5 mm (5.31 × 5.374× 9.04 inch） Solar Panel 8W: 267.3 × 186.5 × 17.5 mm (10.45 × 7.49 × 0.61 inch） |
| Packaging Dimensions | 300 × 204 × 175 mm (11.81 × 8.03 × 6.89 inch） |
| Net Weight | HB90 Dual: 890 g (31.39 oz） Solar Panel 8W: 428 g (15.09 oz) |
| Weight with Package | 1930 g (68.08 oz) |
| In the box | |
| In the box | – HB90 Dual Camera |
| – Solar Panel 8W | |
| – Drilling Template | |
| – Adjustable Mounting Bracket | |
| – Screw Kit × 2 | |
| – Power Cable | |
| – Regulatory Information × 3 | |
| – Quick Start Guide × 2 | |
