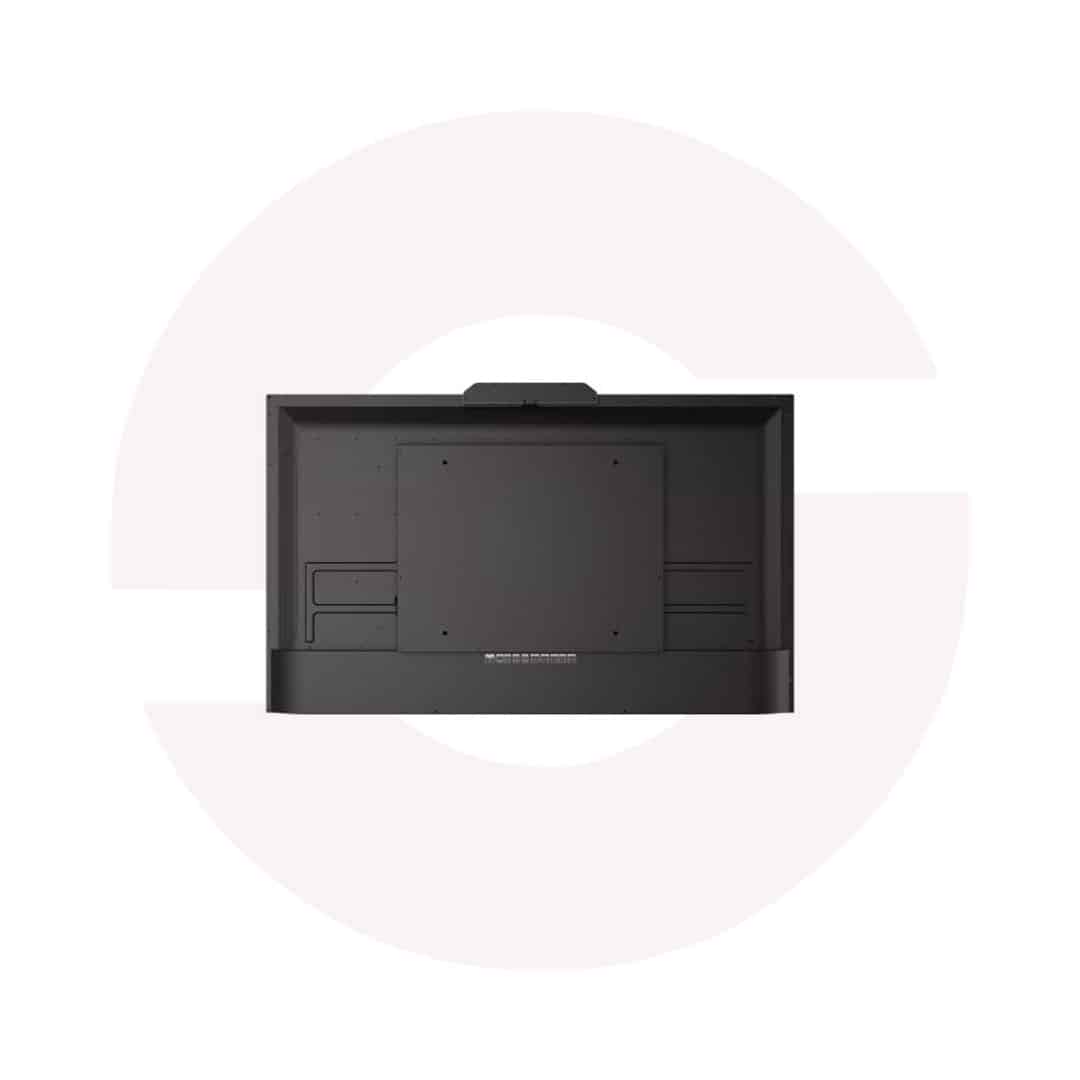

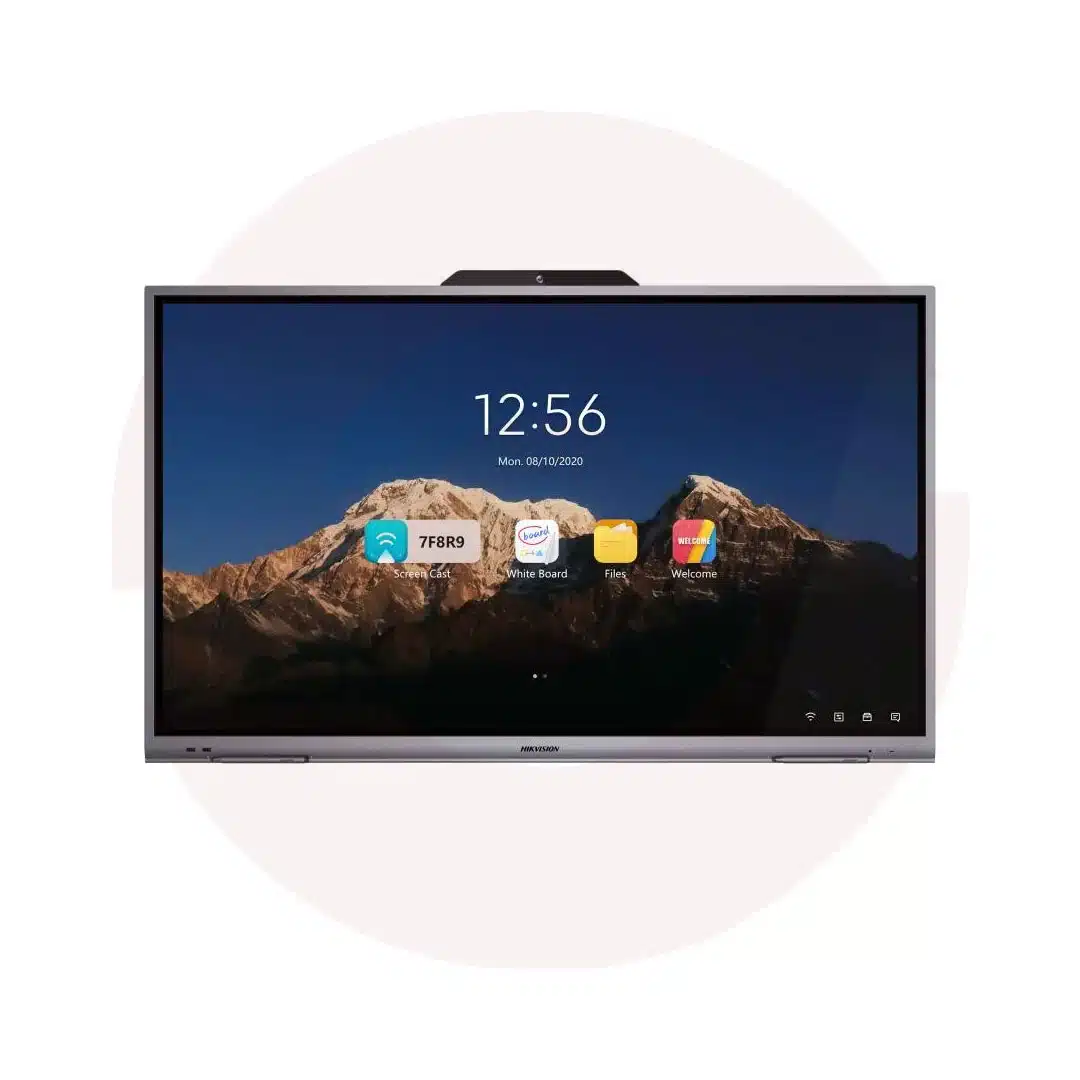

Hikvision DS-D5B86RB/B

86-inch 4K Interactive Display W/ Camera and Microphone array

  • 4K Display Presenting More Details: 4K resolution improves the image details with the features of being anti-glared, fingerprint-resistant, and strong light-blocked.
  • Instant and Ultra-Fine Writing: Provides smooth writing with the touch precision of 1 mm, and smart stroke optimization makes every stroke more real.
  • One-touch Sharing for Meeting: Annotation sharing by QR code or e-mail ensures more concentrations and higher efficiency.
  • Free Annotating Without Boundaries: Built-in application enables free annotations and instant saving on any interfaces. The whiteboard system can register up to 20 simultaneous touch points, showing different opinions at the same time.
  • Wireless Screen Mirroring: Wireless screen mirroring through laptop, desktop PC, mobile phone, and tablet with no need to connect cables. Convenient solution comparison thanks to screen split by half and by quarter.
  • Corporative Working Without Distance Limit: Video conferencing available through relative software and hardware, making remote cooperation achievable. Multi-screen interaction in large-scale scenarios with synchronized displaying of writing.
  • Built-in 8 MP camera ensures clearer images, and 6 microphone arrays present you an immersive experience.
Compare
Add to wishlist
SKU: DS-D5B86RB/B Categories: ,
Description
  • Display
  • Screen Size 86 inch LED Backlight
  • Backlight DLED
  • Pixel Pitch 0.164 (H) × 0.493 (V) mm
  • Resolution 3840 × 2160@60 Hz
  • Brightness 350 cd/m²
  • Color Depth 10 bit
  • Contrast Ratio 1200 : 1 (Typ.)
  • Response Time 6 ms
  • Color Gamut 90% NTSC (CIE1931) (Typ.)
  • Refresh Rate 60 Hz
  • Viewing Angle 178° (H) / 178° (V)
  • Touch
  • Type Infrared touch screen
  • Glass Smooth tempered glass being anti-glare and explosion-proof
  • Touch Point 20 point multi-touch
  • Touch Response Time＜ 10 ms
  • Touch Precision ± 1 mm (≥ 90% touching area)
  • Optical Bonding Support
  • Built-In System
  • Operation System Android 8.0
  • Processor 4-core A73 × 2 + A53 × 2, 1.5 GHz
  • Memory 3 GB
  • Built-In Storage 32 GB
  • NIC Built-in 100 Mbps NIC, supporting routing
  • Camera
  • Pixel 8 MP
  • Camera Function Smart switch between Android system and OPS
  • Field Angle 100° (diagonal), 90° (horizontal), 66° (vertical)
  • Distortion ≤1%
  • Camera Resolution Ratio Up to 4K
  • Microphone
  • Specification Omni-directional 6-array layout
  • Mic Function Echo reduction and smart noise-cancellation
  • Voice Distance 8 m
  • Sampling Rate 32 K
  • Mic Sampling Rate 16 bit
  • Internal Function
  • Loudspeaker Built-in 2 × 16 W loudspeaker
  • Bluetooth Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.0 and previous version.
  • Interface
  • Video & Audio Input HDMI IN × 2, MAX 4K @ 60 Hz, LINE IN × 1
  • Video & Audio Output HDMI OUT × 1, MAX 4K @ 60 Hz, LINE OUT × 1
  • Control Interface RS-232 × 1
  • Network Interface RJ45 (100 Mbps port) × 2
  • Data Transmission Interface USB on front panel × 2, USB on rear panel × 2, touch USB × 1
  • Power
  • Power Consumption ≤ 420 W (full load)
  • Standby Consumption 0.5 W
  • General
  • Power 100 to 240 VAC, 50/60 Hz
  • Product Dimensions 1963 × 1159 × 87.5 mm (77.3” × 45.6” × 3.4”)
  • Package Dimensions (W × H × D)2187 × 1366 × 274 mm (86.1” × 53.8” × 10.8”)
  • Net Weight 65.62 kg (144.67 lb.)
  • Gross Weight 86.74 kg (191.23 lb.)
  • Working Environment
  • Working Temperature 0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
  • Working Humidity 10% to 90% RH
