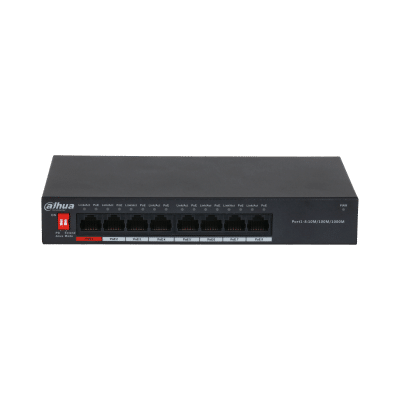

Dahua PFS3008-8GT-96

Hardware

Data Transmission Port

Port 1–8: 8 × RJ-45 10/100/1000 Mbps (PoE)

Power Supply

48 V–57 V DC

Operaing Temperature

–10 °C to +55 °C (+14 °F to + 131 °F)

Operating Humidity

5%–95% (RH)

Storage Temperature

–20 °C to +70 °C (–4°F to + 158 °F)

Storage Humidity

5%–95% (RH)

Power Consumption

Idling: 3 W
Full load: 96 W

Performance

Capacity

20 Gbps

Packet Forwarding Rate

11.9 Mpps

Packet Buffer Memory

1.5 Mbit

MAC Table Size

8K

Communication Standard

IEEE802.3; IEEE802.3u; IEEE802.3X ;IEEE 802.3az; IEEE 802.3ab

PoE

PoE Standard

IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt

PoE Power

96 W

Power Consumption Management

Yes

PoE Pin Assignment

1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

Long Distance PoE

Supports 250 m (820.21 ft)

General

Statics Protection

Air discharge: 8 kV
Contact discharge: 6 kV

Thunder-proof

Common mode: 2 kV
Differential mode: 0.5 kV

Net Weight

490 g (1.08 lb)

Product Dimensions

190 mm × 100 mm × 30 mm (7.48″ × 3.94″ × 1.18″) (W × L × H)

Transmission Performance:

Switch power supply voltage 53V.

CAT5E/CAT6. Max. DC resistance < 10 Ω/100 m

Cable(m)

Load Capacity(W)

Bandwidth(Mbps)

IEEE802.3bt 90 W

100

71.3

100

150

62

10

200

51

10

250

40

10

Hi-PoE 60 W

100

53

100

150

50

10

200

47

10

250

37

10

IEEE802.3at 30 W

100

25.5

100

150

25.5

10

200

25.5

10

250

25.5

10
