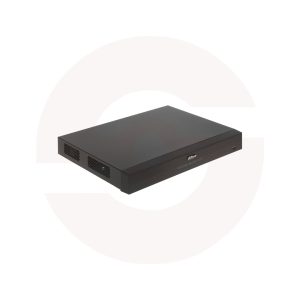

Dahua NVR5216-EI
Dahua NVR5216-EI
Back to products
Next product
Cash Counting 198D
Cash Counting 198D

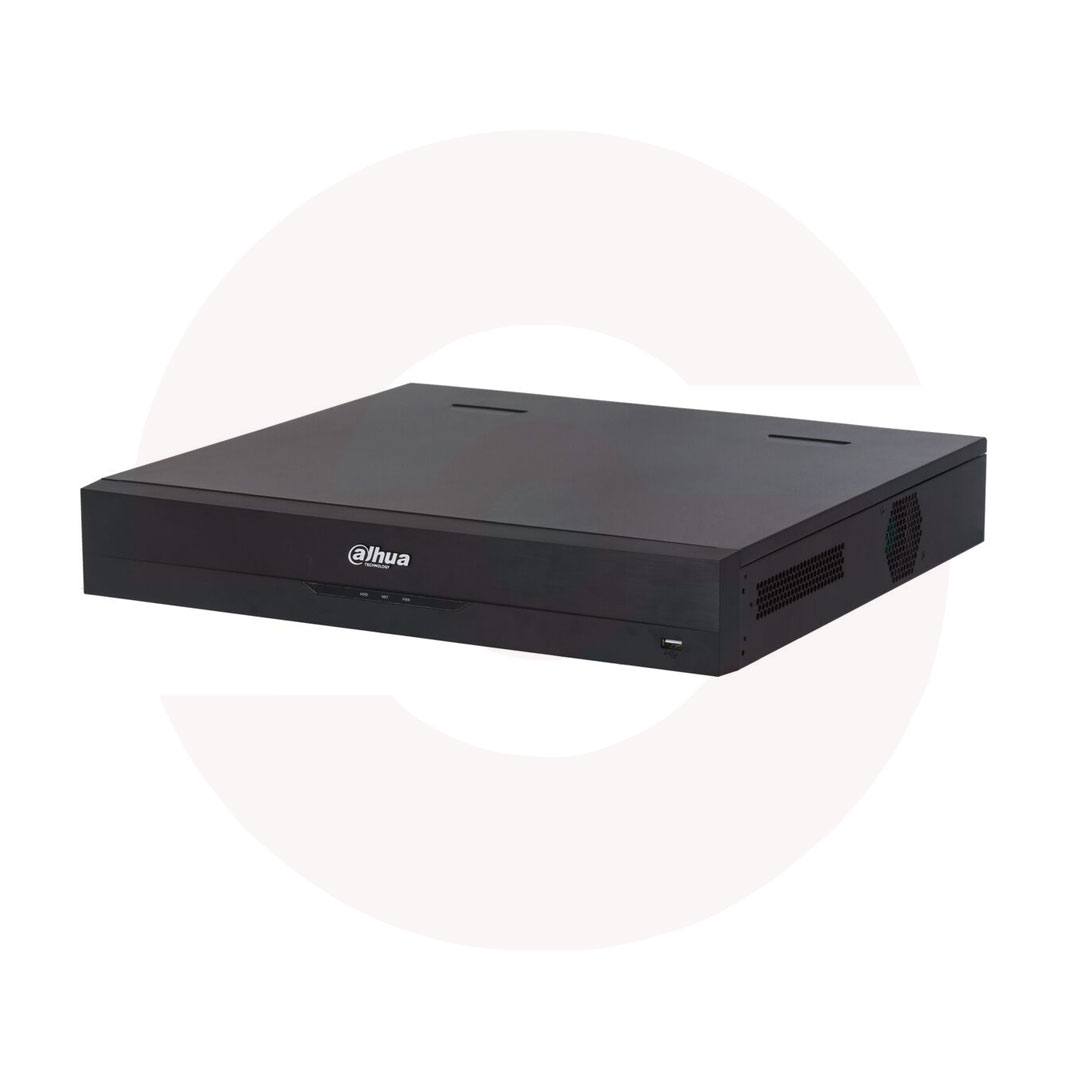

Dahua NVR5464-EI

64 Channels 1.5U 4HDDs WizSense Network Video Recorder

  • Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format.
  • Max. decoding capability: 32 × 1080p@30 fps or 32 × 2MP@30 fps.
  • Max. 384 Mbps incoming/recording/outgoing bandwidth.
  • Support AcuPick with Max. 16-Channel.
  • Support N+M cluster.
  • AI by recorder: 2-channel face detection and recognition, 4-channel perimeter protection, and 8-channel SMD Plus.
  • AI by camera: Face detection and recognition, perimeter protection, SMD Plus, metadata, ANPR, stereo analysis, heat map, and people counting.
  • Security baseline 2.3.

Compare
Add to wishlist
SKU: NVR5464-EI Categories: , ,
Description
System
Main ProcessorIndustrial-grade processor
Operating SystemEmbedded Linux
Operating InterfaceWeb, Local GUI
AI
AI by RecorderFace detection; face recognition; perimeter protection; SMD Plus
AI by CameraFace detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map
AcuPick AI by Camera + RecorderMax. 16-channel, 1 combined event per channel/s
Perimeter Protection
Perimeter Performance AI by Recorder (Number of Channels)4 channels, 10 IVS rules for each channel
Perimeter Performance of AI by Camera (Number of Channels)16 channels
Face Detection
Face AttributesGender; age group; glasses; expressions; face mask; beard
Face Detection Performance of AI by Recorder (Number of Channels)2 channels (up to 12 face images/s each channel)
Face Detection Performance of AI by Camera (Number of Channels)16 channels
Face Recognition
Face Database CapacityUp to 20 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.
Face Recognition Performance of AI by Recorder (Number of Channels)1. 16-channel FD (by camera) + FR (by recorder), image stream: 16 face images/s
2. 2-channe FD (by recorder) + FR (by recorder), video stream: 12 face images/s
Face Recognition Performance of AI by Camera (Number of Channels)16 channels
SMD Plus
SMD Plus by Recorder8 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change
SMD Plus by Camera16 channels
Video Metadata
Metadata Performance of AI by Camera (Number of Channels)8 channels
Human AttributesTop color, top type, bottom color, bottom type, hat, bag, age, gender and umbrella
Motor Vehicle AttributesLicense plate, plate color, vehicle body, vehicle model, vehicle logo, calling, seatbelt, vehicle interior, vehicle registration location.
Non-motor Vehicle AttributesVehicle model, vehicle color, number of persons, helmet.
Vehicle License Plate Comparison
ANPR by Camera (Number of Channels)8 channels
License Plate Database Capacity1. Create up to 20,000 plate numbers.
2. Blocklist and allowlist
Audio and Video
Access Channel64
Network BandwidthAI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing
AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing
Resolution32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 5 MP; 4 MP; 1080p; 720p; D1; CIF; QCIF
Decoding CapabilityAI disabled:

2-channel 32 MP@25 fps; 2-channel 24 MP@25 fps; 4-channel 16 MP@30 fps; 5-channel 12 MP@30 fps; 8-channel 8 MP@30 fps; 12-channel 5 MP@30 fps; 16-channel 4 MP@30 fps; 32-channel 1080p@30 fps
AI enabled:

1-channel 32 MP@25 fps; 1-channel 24 MP@25 fps; 2-channel 16 MP@30 fps; 4-channel 12 MP@30 fps; 6-channel 8 MP@30 fps; 8-channel 5 MP@30 fps; 12-channel 4 MP@30 fps; 24-channel 1080p@30 fps

Video Output2 VGA, 2 HDMI

VGA:1920 × 1080, 1280 × 1024, 1280 × 720

HDMI:3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
Heterogeneous video source output for HDMI1 and HDMI2
Simultaneous video source output for VGA1 and HDMI1
Simultaneous video source output for VGA2 and HDMI2

Multi-screen DisplayMain screen: 1/4/8/9/16/25/36/64
Sub screen: 1/4/8/9/16
Third-party Camera AccessONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung
Compression Standard
Video CompressionSmart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio CompressionG.711a; G.711u; PCM; G726
Network
Network ProtocolHTTP; HTTPS; TCP/IP; IPv4/IPv6; UDP; SNMP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; PPPoE; FTP; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration; iSCSI
Mobile Phone AccessiOS; Android
InteroperabilityONVIF 22.12 (Profile T; Profile S; Profile G); CGI; SDK
BrowserChrome;IE;Safari;Edge;Firefox
Network ModeMulti-address mode, load balance, fault tolerance and other network port binding modes
Recording Playback
Multi-channel PlaybackUp to 16 channels
Record ModeGeneral, motion detection; intelligent; alarm; POS
Backup MethodUSB device and network
Playback ModeInstant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
Storage
Disk GroupYES
Alarm
General AlarmMotion detection; privacy masking; local alarm
Anomaly AlarmCamera offline; storage error; disk full; IP conflict; MAC conflict; login lock; abnormal behavior of fan; cybersecurity exception
Intelligent AlarmFace detection; perimeter protection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map
Alarm LinkageRecord; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzer; log, preset; email
Port
Audio Input1-channel RCA
Audio Output2-channel RCA
Alarm Input16 channels
Alarm Output6 channels (1-channel 12 V 1 A output)
HDD Interface4 SATA ports, each disk can contain up to 20 TB. This limit varies depending on the environment temperature.
eSATA1
RS-2321
RS-4851 (half-duplex serial communication)
USB3(1 front USB 2.0 port, 2 rear USB 3.0 ports)
HDMI2
VGA2
Network Port2 (10/100/1000 Mbps Ethernet port, RJ-45)
General
Power Supply100–240 VAC, 50-60 Hz
Power ConsumptionTotal output of NVR is ≤ 13 W (without HDD)
Net Weight4.74 kg (10.45 lb)
Gross Weight6.11 kg (13.47 lb)
Product Dimensions440.0 mm × 415.1 mm x 70.0 mm (17.32″ × 16.34″ × 2.76″) (W ×D × H)
Packaging Dimensions530.0 mm × 500.0 mm × 210.0 mm (20.87″ × 19.69″ × 8.27″)(W × D × H)
Operating Temperature–10 °C to +55 °C (14 °F to +131 °F)
Storage Temperature–20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity10%–93% (RH)
InstallationRack or desktop
CertificationsFCC: 47 CFR FCC Part15, SubpartB, Class A
CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014
CE-LVD: EN 62368-1:2014
Additional information
Weight1 kg
Dimensions10 × 10 × 10 cm
