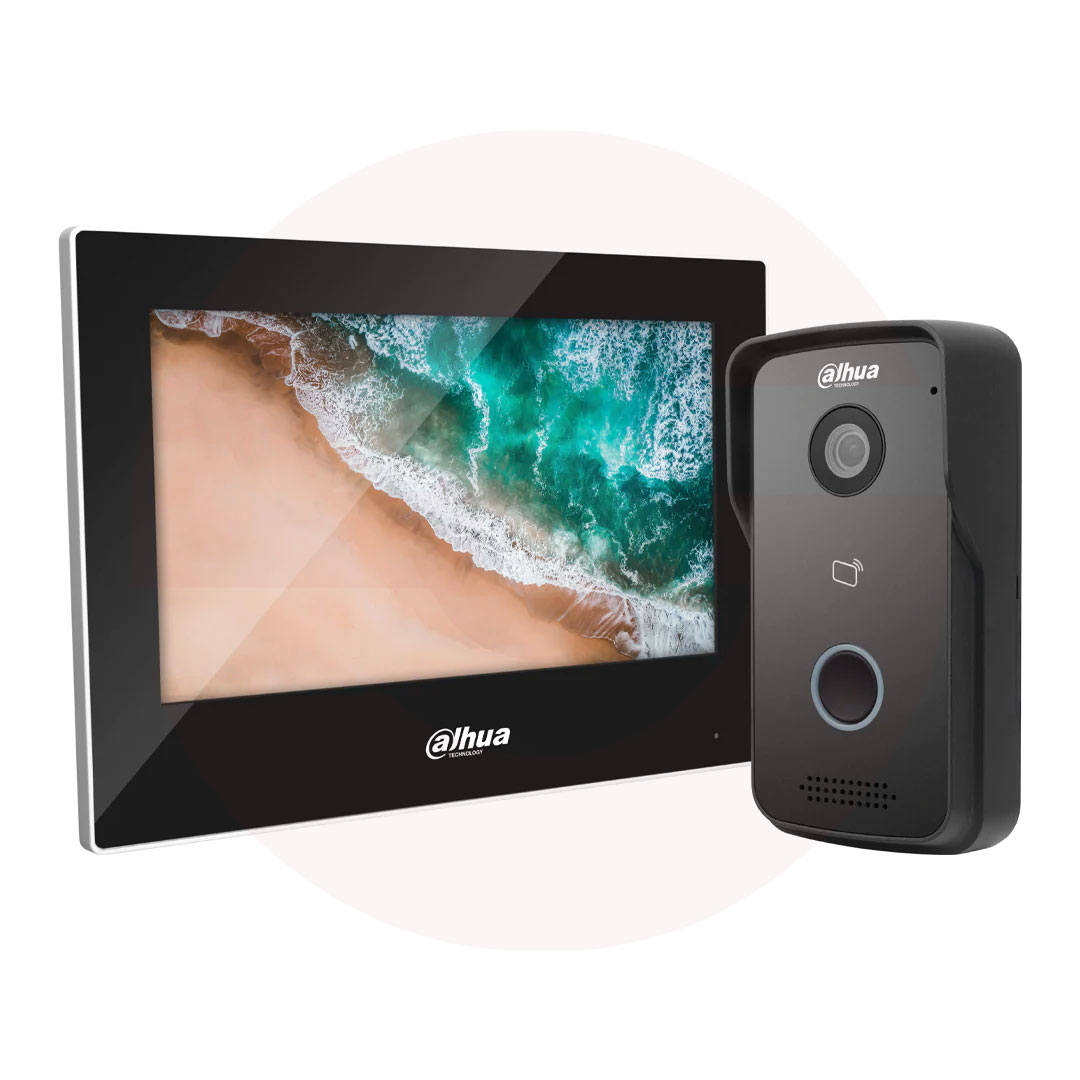

Dahua KTP03

IP Indoor Monitor & Villa Station

  • IP Indoor Monitor
  • 7″ TFT capacitive touch screen, 1024 x 600
  • 6-channel alarm input and 1-channel alarm output
  • standard PoE
  • Door station and IPC monitor.
  • H.265 and H.264 video decoding
  • High performance & cost-effective
  • Villa Station
  • High definition camera; WDR
  • Operating temperature –30 °C to +60 °C · IP65
  • auto IR illumination and D/N
  • Card/app remote/indoor monitor (VTH) unlock
  • 2-channel voice call and supports calls between door stations and app
  • 10,000 cards
  • Tamper alarm
  • Supports standard PoE power supply
  • Control two locks
  • Quick configuration without computers
  • Switch
  • 4 PoE ports with 10/100 Mbps Base-TX
  • 2 uplink ports with 10/100Mbps Base-TX
  • Supports 250 m long distance PoE transmission

Compare
Add to wishlist
SKU: KTP03 Category:
Description
DHI-VTH2621G-P
System
Main ProcessorEmbedded processor
Operating SystemEmbedded Linux operating system
InteroperabilityONVIF; SDK
Network ProtocolRTSP; RTP; SIP; DNS; SSH
ROM128 MB
RAM128 MB
CPUDual core 1.2 GHz
Basic
Screen TypeCapacitive touchscreen
Display7″ TFT
Screen Resolution1024 × 600
Audio CompressionG.711a; G.711u; PCM
Audio Input1
Audio OutputBuilt-in speaker
Audio Mode2-way audio
Audio EnhancementEcho suppression
Audio Bit Rate16 kHz; 16 bit
Function
Communication ModeFull digital
Information ReleaseReceive and view text information released by the management center
Leave VideosYes (SD card inserted in VTH is needed)
DND ModeDo not disturb period can be set; Do not disturb mode
Number of ExtensionsVilla: 9

Apartment: 4

Performance
CasingPC + ABS
Port
Alarm Input6
Alarm Output1
Door BellYes (use any alarm input port)
NetworkOne 10 Mbps/100 Mbps Ethernet
StorageMicro SD Card, Max 64 GB (reserved for software)
General
Appearance ColorBlack
Power Supply12 VDC 1A;
Standard PoE (36–57 V, 0.35 A)
InstallationSurface Mount
CertificationsCE; FCC
Dimensions189.6 mm × 134.6 mm × 26.0 mm (7.50″ × 5.30″ × 1.00″)
Operating Temperature–10 °C to +55 °C (+14 °F to 131 °F)
Operating Humidity10%–95% (RH) (non-condensing)
Operating AltitudeBeneath 3,000 m (9,842.52 ft)
Power ConsumptionStandby ≤ 2 W; working ≤ 6 W
Net Weight0.34 kg (0.74 lb)
Gross Weight0.58 kg (1.27 lb)
DHI-VTO2111D-P-S2
System
Main ProcessorEmbedded processor
Operating SystemEmbedded Linux operating system
Button TypeMechanical
InteroperabilityONVIF; CGI
Internet ProtocolRTSP; RTMP; HTTP/HTTPS; DNS; FTP; UPnP; RTP; SIP; SSH; ONVIF; P2P
ROM128 MB
RAM256 MB
CPUDual-core 900 MHz
Basic
Camera1/2.7“ 1MP CMOS
Angle of ViewH: 107°; V: 61°; D: 122°
Focal Length2.0 mm
WDR120 dB
Noise Reduction3D NR
Video CompressionH.264
Video Resolution50 Hz:
Main stream (720p@25 fps), sub stream (1080p@25 fps)
60 Hz:
Main stream (720p@30 fps), sub stream (1080p@30 fps)
Frame Rate25 fps
Video Bit Rate256 kbps to 4 Mbps
Light CompensationAuto IR
D/NYes
Audio CompressionG.711a; G.711u; PCM
Audio Input1
Audio OutputBuilt-in speaker
Audio Mode2-way Audio
Audio EnhancementEcho suppression and cancellation/digital noise reduction
Audio Bit Rate16 kHz, 16 bit
Function
CommunicationFull digital
Unlock ModeCard/remote unlock
Card TypeIC card
Auto SnapshotAuto snapshot can only be enabled on indoor monitors
Leave VideosYes (SD card inserted in VTH is needed)
Web ConfigurationYes
Performance
Card Reading Distance3–5 cm
CasingPC + Acrylic
Capacity
Card10,000
Port
RS-4851
Alarm Output1
Exit Button1
Door Status Detection1
Lock Control1
NetworkOne 10 Mbps/100 Mbps Ethernet (8-core white ribbon cable)
Alarm
TamperYes
General
Appearance ColorBlack
Power Supply12 VDC 1A;
Standard PoE (36–57 V, 0.35 A)
InstallationSurface Mount
CertificationsCE; FCC; UL
Dimensions135 mm × 70.4 mm × 34.4 mm (5.31″ × 2.77″ × 1.35″)
ProtectionIP65 (silicone sealant is needed, see the quick start guide)
Operating Temperature–30 °C to +60 °C (–20 °F to +60 °F)
Operating Humidity10%–95% (RH) (non-condensing)
Operating AltitudeBeneath 3,000 m (9,842.52 ft)
Power ConsumptionStandby ≤ 2 W; working ≤ 6 W
Gross Weight0.25 kg (0.55 lb)
Net Weight0.32 kg (0.72 lb)
DH-PFS3006-4ET-36
System
Main ProcessorEmbedded processor
Network ProtocolIEEE802.3af, IEEE802.3at
Function
Communication ModeFull digital
Performances
CasingSECC
Port
Network Port4 PoE ports with 10/100 Mbps Base-TX

2 uplink ports with 10/100Mbps Base-TX

StorageMicro SD Card, Max 64 GB (reserved for software)
General
Appearance colorBlack
Power Supply100–240 VAC
CertificationsCE; FCC; UL
Accessorypower cable included
Product Dimensions194.0 mm × 108.1 mm × 35.0 mm (7.64″ × 4.26″ × 1.38″)
Operating Temperature–10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity10%–95% (RH) (non-condensing)
Operating AltitudeBeneath 3,000 m (9,842.52 ft)
Power ConsumptionIdling: 0.5 W Full load: 36 W
Net Weight0.56 kg (1.23 lb)
Gross Weight1.11 kg (2.15 lb)
Additional information
Weight1 kg
Dimensions10 × 10 × 10 cm
