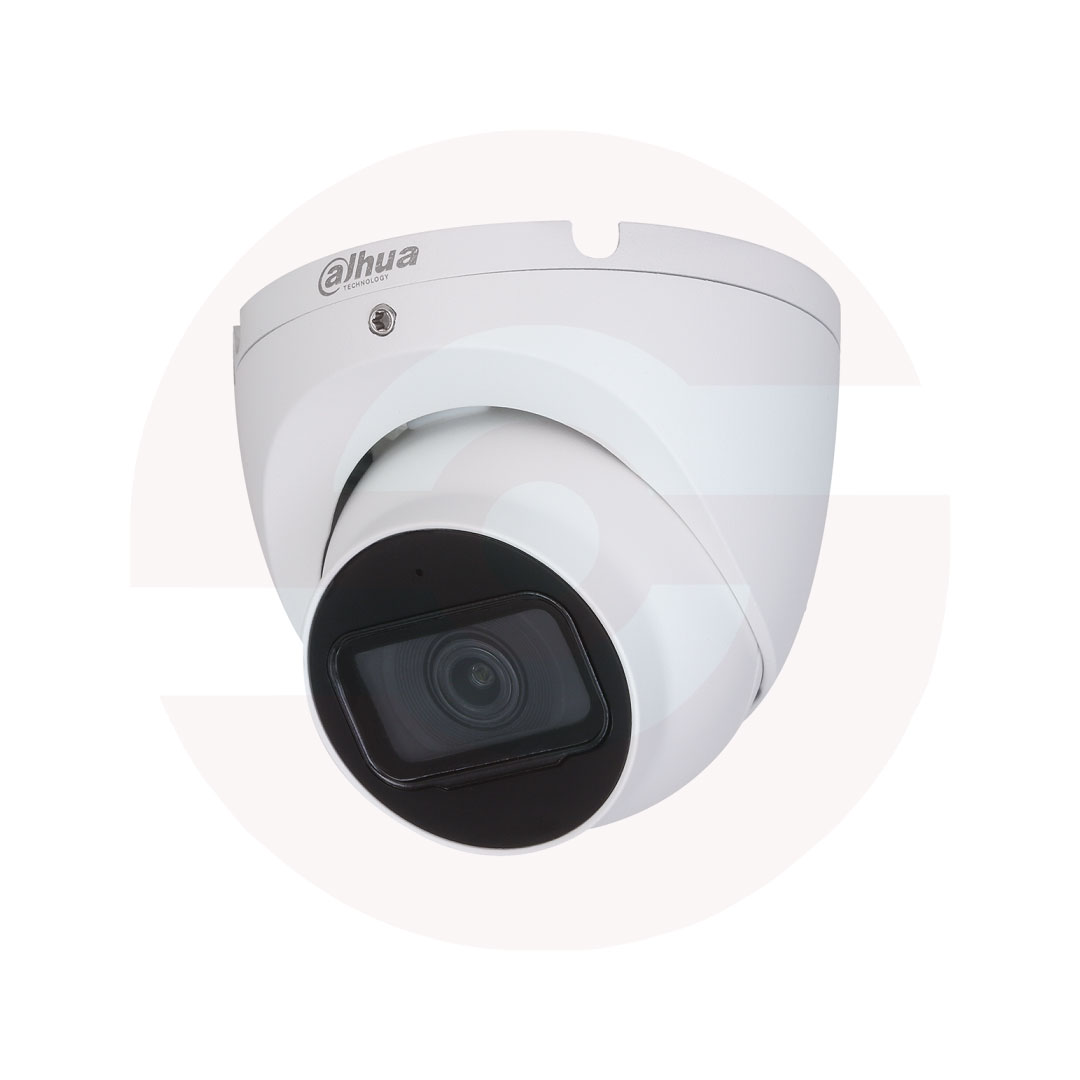

Dahua IPC-HDW1230TP-A-S4

2 MP Entry IR Fixed-focal Eyeball Network Camera

  • 2-MP 1/2.8″ CMOS image sensor, low luminance, and high definition image
  • H.265 codec, high compression rate, ultra-lowbit rate.
  • Outputs max. 2 MP (1920 × 1080)@25/30 fps
  • DWDR, Day/Night(ICR), 3DNR, HLC, AGC, BLC
  • Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, illegal access
  • Max IR LEDs Length 30m
  • 12V DC/PoE power support
  • Built-in MIC.
  • IP67
Compare
Add to wishlist
SKU: IPC-HDW1230TP-A-S4 Categories: , ,
Description
Camera
Image Sensor1/2.8” 2Megapixel progresive CMOS
Effective Pixels1920(H) x1080(V)
RAM/ROM64MB/16MB
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual, 1/3~1/100000s
Minimum Illumination0.01 lux@F2.0 (Color, 30 IRE)

0.001 lux@F2.0 (B/W, 30 IRE)

0 lux (Illuminator on)

S/N RatioMore than 56dB
IR DistanceDistance up to 30m(98.4ft)
IR On/Off ControlAuto/ Manual
IR LEDs1
Lens
Lens TypeFixed
Mount TypeM12
Focal Length2.8 mm

3.6 mm

Max. ApertureF2.0/F2.0
Angle of View2.8 mm: Horizontal: 102°; Vertical: 54°; Diagonal: 120°

3.6 mm: Horizontal: 88°; Vertical: 47°; Diagonal: 104°

Focus ControlFixed
Close Focus Distance2.8 mm: 0.5 m (1.64 ft)

3.6 mm: 0.8 m (2.62 ft)

DORI DistanceLensDetectObserveRecognizeIdentify
2.8 mm38.6 m (126.64 ft)15.4 m (50.52 ft)7.7 m (25.26 ft)3.9 m (12.80 ft)
3.6 mm49.7 m (163.06 ft)19.9 m (65.29 ft)9.9 m (32.48 ft)5.0 m (16.40 ft)
PTZ
Pan/Tilt RangePan:0° ~360°; Tilt:0° ~78°; Rotation:0° ~360°
Video
CompressionH.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Streaming Capability2 Streams
Resolution1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Frame RateMain stream: 1920 × 1080@1–25/30 fps
Sub stream: 704 × 576@1–25 fps 704 × 480@1–30 fps

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Bit Rate ControlCBR/VBR
Bit RateH.264: 32 kbps–6144 kbps

H.265: 12 kbps–6144 kbps

Day/NightAuto(IR) / Color / B/W
BLC ModeBLC / HLC /DWDR
White BalanceAuto/Natural/Street Lamp/Outdoor/Manual
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetectionOff / On (4 Zone, Rectangle)
Region of InterestOff / On (4 Zone)
Smart IRSupport
Digital Zoom16x
Flip0°/90°/180°/270°
MirrorOff / On
Privacy MaskingOff / On (4 Area, Rectangle)
Audio
Compression

Built-in MIC

G.711A; G.711Mu; G.726

Yes

Network
EthernetRJ-45 (10/100Base-T)
ProtocolIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP
InteroperabilityONVIF (Profile S); CGI; P2P; Genetec
User/Host6 (Total bandwidth: 36M)
Edge StorageFTP
Web ViewerIE, Chrome, Firefox
Management SoftwareSmart PSS; DSS; DMSS
Smart PhoneIOS, Android
Certifications
CertificationsCE-LVD: EN 62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B
Interface
Video InterfaceN/A
Audio InterfaceN/A
RS485N/A
AlarmN/A
Electrical
Power SupplyDC12V PoE (802.3af)
Power ConsumptionBasic: 1.2 W (12 VDC); 2 W (PoE) Max. (ICR + H.265 + IR intensity): 3.1 W (12 VDC); 4.1 W (PoE)
Environmental
Operating Conditions-40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH
Storage Conditions-40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH
Ingress ProtectionIP67
Construction
CasingMetal
Dimensions85.5 mm × Φ109 mm (3.4″ × Φ4.3″)
Net Weight0.32 kg (0.7 lb)
Gross Weight0.43 kg (0.9 lb)
Additional information
Weight0.5 kg
Dimensions10 × 10 × 10 cm
