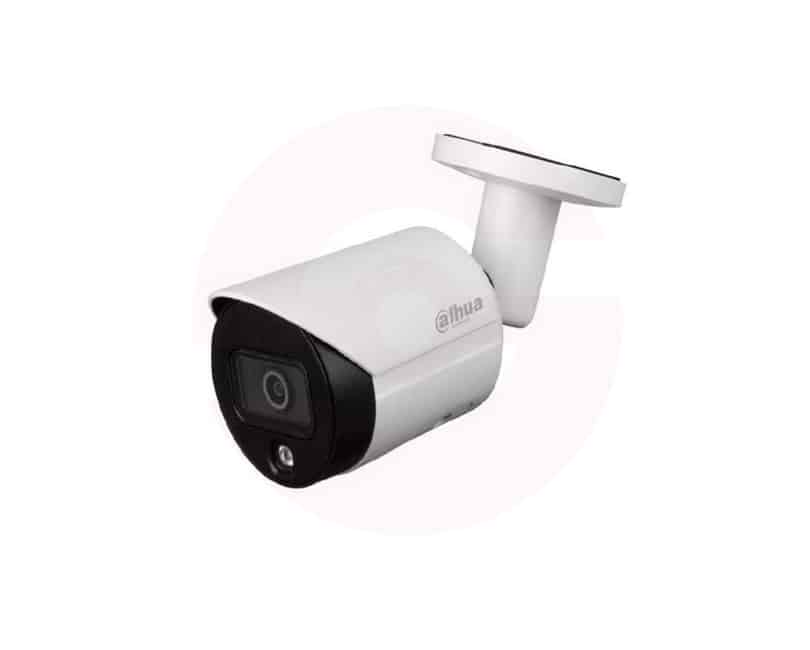

Dahua DH-IPC-HFW1239S1P-LED-S5

Camera

Image Sensor 1/2.8″ CMOS
Max. Resolution 1920 (H) × 1080 (V)
ROM 16 MB
RAM 64 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
Min. Illumination 0.005 Lux @F1.6 S/N Ratio >56 dB
Illumination Distance 3.6 mm: 15 m (49.2ft)
Illuminator On/Off Control Auto/Manual
Illuminator Number 1 (Warm light)
Pan/Tilt/Rotation Range
Horizontal: 0° to 360°
Vertical: 0° to 90°
Rotation: 0° to 360°

Lens

Lens Type Fixed-focal
Lens Mount M12
Focal Length 3.6 mm
3.6 mm: F1.6
Field of View  3.6 mm: Horizontal: 88°; Vertical: 46°; Diagonal: 104°
Iris Control Fixed 3.6 mm: 1.1 m (3.6 ft)
DORI Distance
Lens Detect Observe Recognize Identify
3.6 mm 54.8 m (179.8 ft) 21.9 m (71.9 ft) 11.0 m (36.1 ft) 5.5 m (18.0 ft)

Video

Video Compression H.265; H.264; H.264B; MJPEG (only supported by the
sub stream)
Smart Codec Smart H.265+/Smart H.264+
Video Frame Rate
Main Stream:
1920 × 1080 (1 fps–25/30 fps)
Sub stream:
704 × 576 (1 fps–25 fps)
704 × 480 (1 fps–30 fps)
Stream Capability 2 streams

Resolution

1080p (1920 × 1080); 1.3M(1280 × 960);720p (1280 ×
720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF
(352 × 288/352 × 240)
Bit Rate Control CBR/VBR

Video Bit Rate H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6400 kbps
Day/Night Color/B/W
BLC Yes
HLC Yes
WDR DWDR
White Balance Auto/natural/street lamp/outdoor/manual/regional
custom
Gain Control Auto/Manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1080p
resolution and lower)
Mirror Yes
Privacy Masking 4 areas

Alarm

Alarm Event Network disconnection; IP conflict; illegal access; motion
detection; video tampering; safety exception
Network
Network RJ-45 (10/100 Base-T)
SDK and API Yes
Cyber Security
Video encryption; configuration encryption; Digest; WSSE;
account lockout; security logs; generation and importing
of X.509 certification; HTTPS; trusted boot; trusted
execution; trusted upgrade
Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP;
FTP; DHCP; DNS; NTP; Multicast
Interoperability ONVIF (Profile S/Profile T); CGI; P2P; Genetec
User/Host 6 (Total bandwidth: 36 M)
Storage FTP
Browser
IE
Chrome
Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Client IOS; Android

Certification

Certifications
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B

Power

Power Supply 12V DC/PoE (802.3af)
Power Consumption
Basic power consumption: 1.4W (12V DC); 2.2W (PoE)
Max. power consumption (ICR + H.265+IR intensity):
4.2W (12V DC); 5.3W (PoE)
