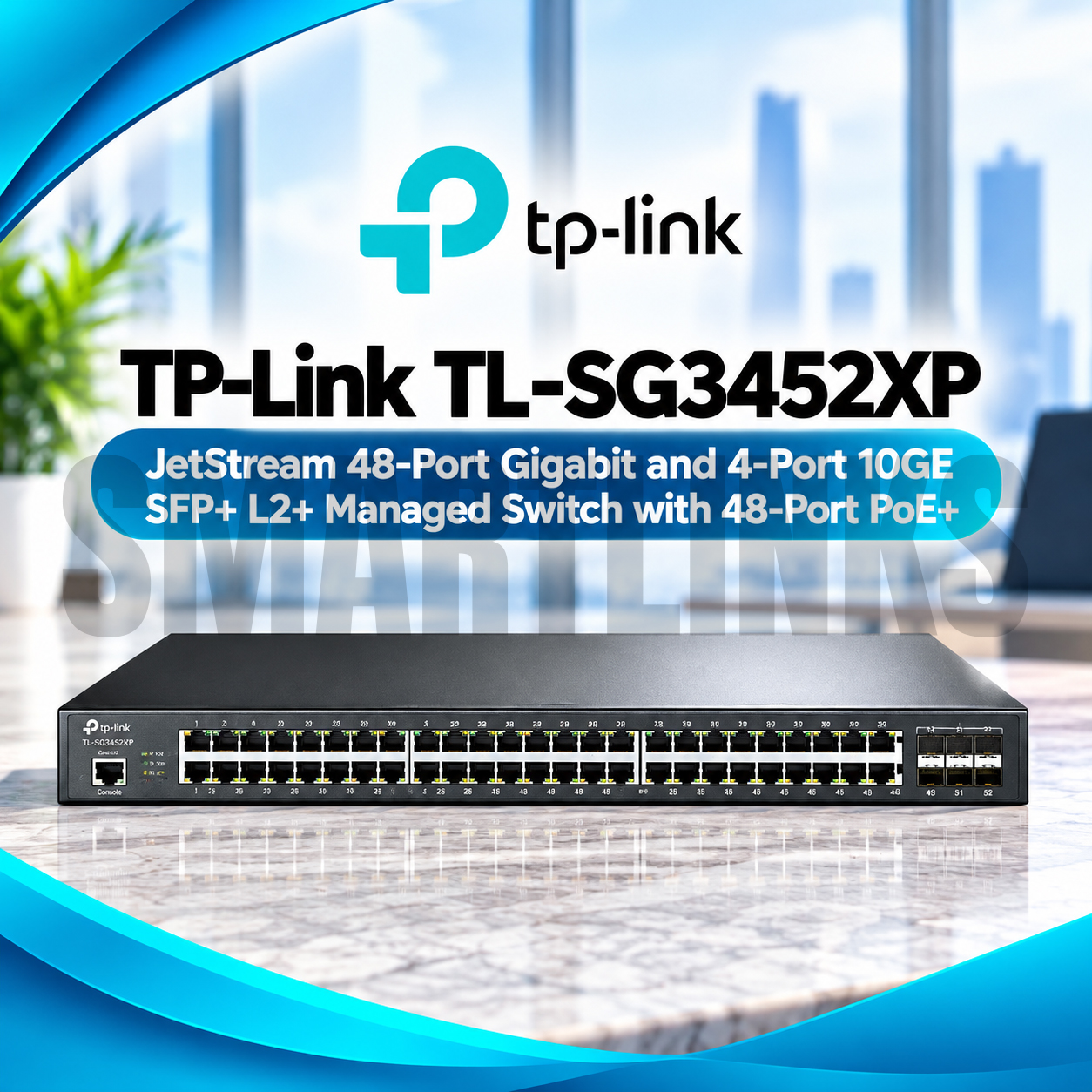

TP-Link TL-SG3452XP JetStream 48-Port Gigabit L2+ Managed PoE+ Switch – 500W, 4×10G SFP+ & Omada SDN

TP-Link TL-SG3452XP JetStream Managed PoE+ Switch

The TP-Link TL-SG3452XP is a Layer 2+ managed switch designed for offices, hotels, schools, and CCTV networks. It combines forty-eight Gigabit Ethernet connections with Power over Ethernet Plus, four high-speed fiber uplinks, and management tools. Businesses can connect powered devices while organizing traffic, controlling access, and monitoring network operation through Omada systems. Its rackmount construction makes it suitable for structured installations requiring reliable connectivity and administration.

Forty-Eight Gigabit PoE+ Ports

Each RJ45 port supports 10/100/1000Mbps Ethernet and IEEE 802.3af/at Power over Ethernet. Individual PoE+ ports can deliver up to 30W, while the combined power budget is 500W. These limits work together: the switch cannot provide 30W simultaneously to all forty-eight ports. Check power requirements for each camera, access point, and phone, including infrared lighting and startup consumption. Devices requiring passive PoE or incompatible voltage must use alternative power equipment.

Four Dedicated 10G SFP+ Uplinks

Four separate 10Gbps SFP+ slots enable high-bandwidth connections to core switches, aggregation equipment, and servers. Unlike combo slots, these interfaces do not replace the forty-eight copper ports, giving administrators fifty-two data interfaces overall. Choose compatible optical transceivers or direct-attach cables for the planned distance. Fiber compatibility depends on module specifications, while the SFP+ interfaces do not supply PoE power.

Switching Capacity and Performance

A 176Gbps switching capacity and 130.9Mpps packet forwarding rate help the TL-SG3452XP handle simultaneous enterprise traffic. Its 16K MAC address table, 12Mbit packet buffer, and jumbo frame support assist efficient data forwarding. Throughput depends on traffic patterns, connected hardware, cable condition, and configuration. Gigabit copper ports remain limited to 1Gbps individually; faster uplink performance is available through the separate SFP+ interfaces.

Omada SDN Centralized Management

Omada integration allows supported controllers to manage this switch alongside compatible gateways and wireless access points. Administrators can monitor network health, apply configurations, and use remote access through controller setups. Standalone management is also available using the web interface, command-line tools, and SNMP. Cloud services and Zero-Touch Provisioning require appropriate controller compatibility and may depend on hardware and firmware versions. Back up configurations before network changes.

VLAN Security and Static Routing

IEEE 802.1Q VLAN support helps separate office computers, guest traffic, surveillance equipment, and other network groups. Static routing can forward selected traffic between internal subnets. Access Control Lists, DHCP Snooping, 802.1X authentication, port security, and IP-MAC-Port Binding help administrators enforce access policies. These capabilities are useful only when correctly configured and do not replace a firewall, endpoint security, or strong administrator passwords.

Traffic Optimization and Reliability

Advanced Quality of Service features can prioritize voice, video, and application traffic during congestion. IGMP and MLD Snooping optimize multicast distribution, while link aggregation and spanning tree protocols support resilient network designs. Monitoring, loop detection, and storm control provide troubleshooting tools. Plan network segmentation carefully, document uplink assignments, and confirm routing behavior before connecting mission-critical systems.

Professional Rackmount Installation

The metal enclosure measures 440 × 330 × 44mm and includes three cooling fans. A built-in universal AC power supply supports rackmount deployments. Keep ventilation clear, organize cables, and provide electrical capacity for maximum PoE demand. Use Cat5e or better Ethernet cabling and verify device power requirements. The switch produces fan noise and should not be described as fanless.

Buy TP-Link TL-SG3452XP in Pakistan

The TP-Link TL-SG3452XP suits organizations needing many powered Gigabit ports, 10G uplinks, VLAN control, and centralized administration. Before ordering from Smartlinks Pakistan, verify stock, hardware revision, warranty, compatible transceivers, and your planned PoE load. The total 500W budget is shared across all powered connections, so allow headroom for peak operation and future upgrades.
