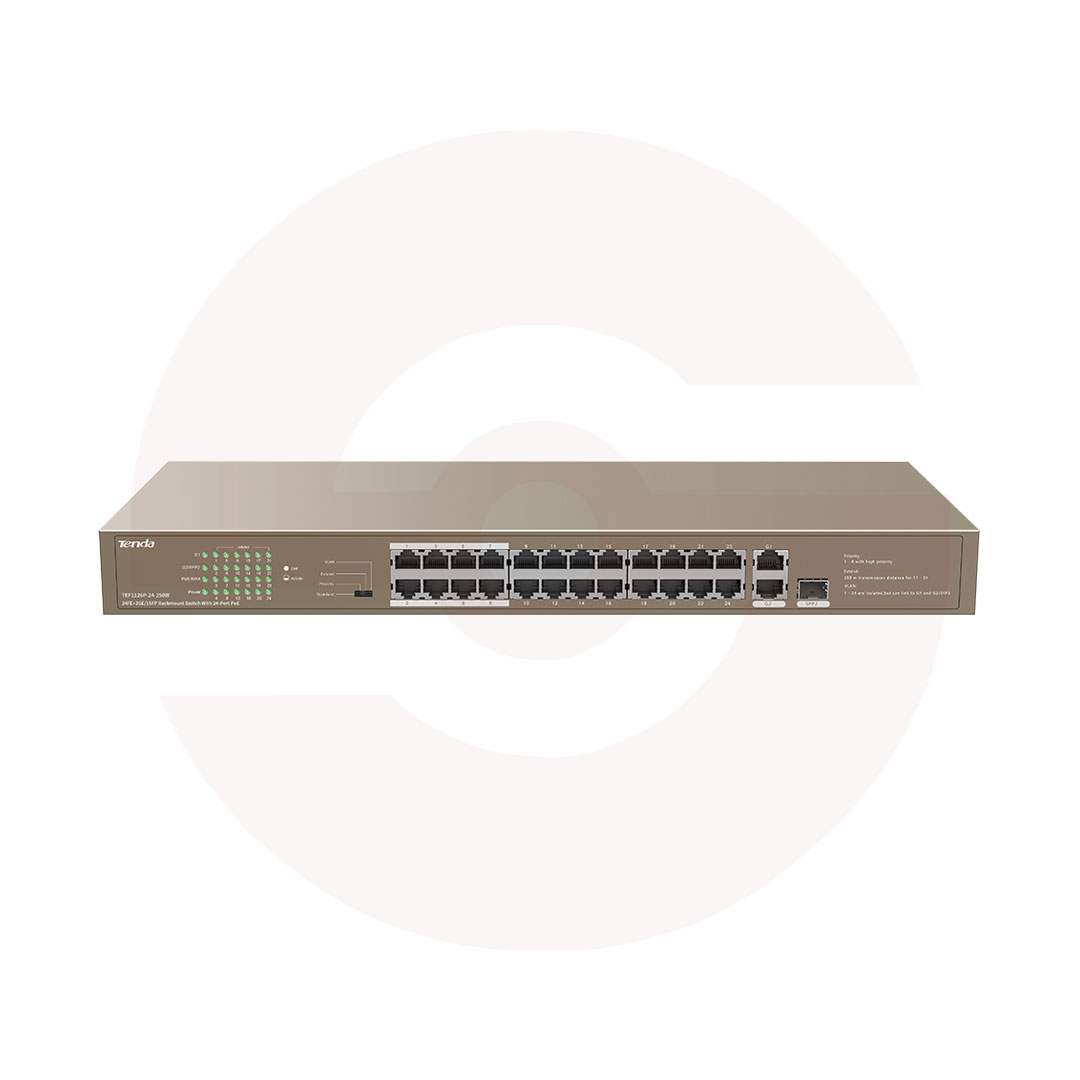

Tenda TEF1126P-24-250W PoE Switch

Tenda TEF1126P-24-250W PoE Switch for Professional Surveillance

The Tenda TEF1126P-24-250W is an unmanaged Power over Ethernet switch designed for CCTV systems, offices, schools, hotels, and other business networks. It brings twenty four camera connections together in a single device, reducing the need for separate power adapters when equipment supports standard PoE. With dedicated Gigabit uplinks, flexible operating modes, and a metal enclosure, this switch helps installers build organized surveillance networks without complicated software configuration.

Twenty Four PoE Ports and Flexible Uplinks

Ports one through twenty four operate at 10/100Mbps and support IEEE 802.3af/at power delivery. Each port can supply up to 30W to compatible equipment, provided total consumption remains within the shared budget. Two additional 10/100/1000Mbps RJ45 ports support Gigabit uplinks to a router, recorder, or upstream network. An SFP combo slot offers an alternative fiber connection, but shares one Gigabit interface rather than adding another independent uplink. This arrangement helps connect local cameras to recording equipment and larger networks.

Know the Actual PoE Power Budget

For the documented V2.0 version, Tenda specifies 230W as maximum combined PoE output, while the device carries a 250W model designation. These values should not be treated as interchangeable. Before connecting cameras, add their maximum rated consumption, including infrared illumination, heating, or other active features. Twenty four PoE devices can operate simultaneously only if their combined requirements stay within the available power budget. A single port rating of 30W does not mean every port can provide 30W at the same time.

Four Modes for Different Installations

Standard Mode allows ordinary unmanaged switching. Priority Mode gives preferential treatment to ports one through eight, helping important traffic when connections are busy. Extend Mode on V2.0 hardware reduces ports seventeen through twenty four to 10Mbps and can support distances up to 250 meters under suitable cable and device conditions. VLAN Mode isolates the PoE ports from one another while preserving connectivity to the uplinks. These hardware selectable modes let technicians adapt an installation without opening a management interface.

Switching Capacity and Electrical Protection

The switch offers 8.8Gbps aggregate switching capacity, a 6.55Mpps forwarding rate, a 16K MAC address table, and a 4M packet buffer. Store and forward processing directs Ethernet frames between connected equipment. Although the uplinks support Gigabit speeds, the twenty four powered ports remain Fast Ethernet connections limited to 100Mbps. Tenda also specifies 6kV lightning protection for network and power interfaces. Proper grounding, cable routing, and site appropriate surge protection remain important for safe installations.

Practical Rackmount Installation

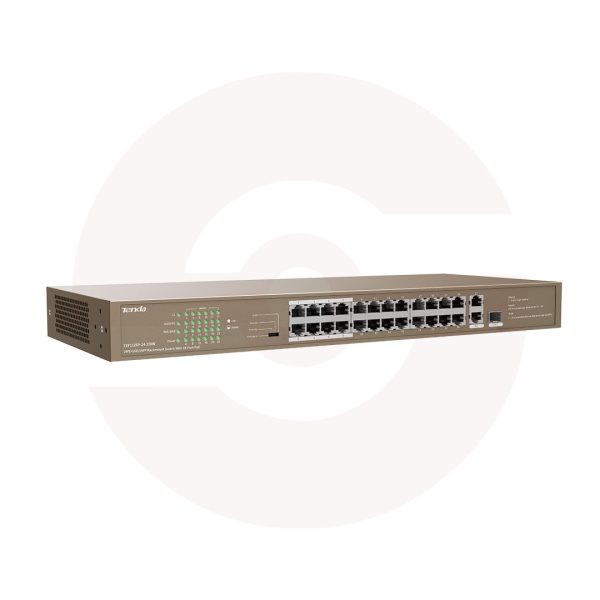

With dimensions of approximately 440 by 178.8 by 44 millimeters, this switch can be installed on a desktop, wall, or equipment rack. Its metal housing suits structured network areas, while status LEDs help identify connected ports and PoE power conditions. The documented hardware includes a cooling fan, so allow ventilation and do not assume silent fanless operation. Use suitable Cat5e or better cables and confirm every connection before completing the installation. Position the switch where maintenance staff can reach the indicators and power connection, and label each cable with its camera location. Documenting the layout simplifies future fault finding, device replacement, and planned network expansion across the entire site.

Suitable Applications and Purchase Guidance

Use the Tenda TEF1126P-24-250W with standards compliant IP cameras, wireless access points, and compatible IP phones. It supplies Ethernet connectivity and PoE power, but does not independently record video, provide Wi-Fi, or replace a router. Check camera bitrates, power requirements, cable lengths, and hardware revision before purchasing.

Explore the Tenda TEF1126P-24-250W at Smartlinks.pk for product availability, warranty details, and compatible networking accessories for your surveillance project.
