Tenda O3 5km Point to Point Outdoor CPE 150Mbps 12dBi

Key Product Highlights

  • 5km Point-to-Point Wireless Bridge: Designed for long-distance outdoor links under suitable conditions.

  • 150Mbps Wireless N Speed: Up to 150Mbps theoretical wireless link rate.

  • 2.4GHz Wireless Connectivity: Supports IEEE 802.11b/g/n standards.

  • 12dBi Directional Antenna: Integrated high-gain antenna for focused wireless transmission.

  • 60° Horizontal Beamwidth: Provides directional signal coverage.

  • Point-to-Point and Point-to-Multipoint: Supports compatible outdoor network configurations.

  • Automatic Bridging: Simplifies pairing of compatible Tenda outdoor CPE units.

  • Two Ethernet Ports: 2 × 10/100Mbps connections.

  • 12V Passive PoE: Convenient outdoor power delivery through Ethernet.

  • Up to 60m Deployment Cable: Supported with the appropriate included PoE injector and cabling.

  • Outdoor Weather Resistance: IP64 rating documented for the original O3 v2.0 enclosure.

  • 6000V Lightning Protection: Integrated electrical surge protection design.

  • Multiple Operating Modes: AP, Station, WISP, P2MP, WDS Repeater and Router.

  • CCTV Surveillance Support: Suitable for compatible IP camera network links.

  • Network Management: Signal diagnostics, scheduled reboot, VLAN features and CPE Assistant software.

  • Pole or Wall Mounting: Flexible outdoor installation.

    Discover More: Tenda Access Points

₨9,400.00

20 People watching this product now!

Description

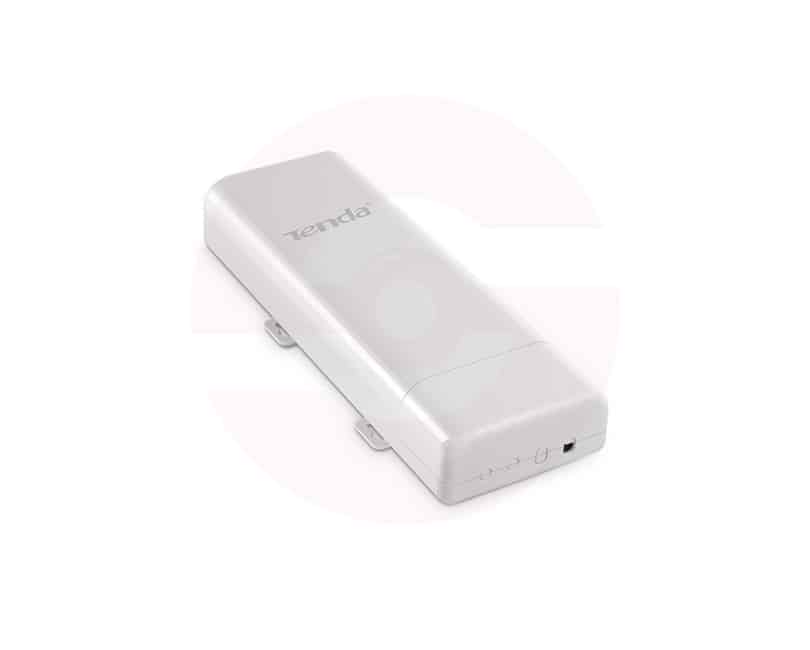

Tenda O3 5km Point to Point Outdoor CPE

The Tenda O3 5km Point to Point Outdoor CPE is designed to create wireless links between separate buildings and networking locations. Using 2.4GHz Wireless N technology, a directional antenna, and outdoor mounting options, it supports suitable internet sharing, data transmission, and surveillance deployments. Its compact enclosure makes it practical for connecting offices, shops, warehouses, or camera sites where installing a continuous Ethernet cable is difficult. The O3 is specialized bridge equipment, not a conventional indoor WiFi router intended to cover every room.

Long Distance Wireless Bridge Connectivity

Tenda advertises point to point links up to five kilometers under appropriate outdoor conditions. Actual usable distance depends on clear line of sight, antenna alignment, wireless interference, legal transmission limits, and environmental conditions. Two compatible outdoor units are generally needed to build a dedicated link between two locations. Automatic bridging functions may simplify pairing supported devices, but correct installation and network configuration remain important. Buildings, trees, terrain, and nearby radio networks can significantly reduce reliability.

2.4GHz Wireless N and Directional Antenna

The O3 supports IEEE 802.11b, 802.11g, and 802.11n standards, with theoretical wireless link rates up to 150Mbps. Its integrated 12dBi directional antenna concentrates radio energy toward a selected area rather than broadcasting evenly in every direction. The stated beamwidth is approximately 60 degrees horizontally and 30 degrees vertically. Carefully point the antenna toward the other station for the best practical connection. The 150Mbps specification is not a guaranteed internet speed or sustained file transfer rate.

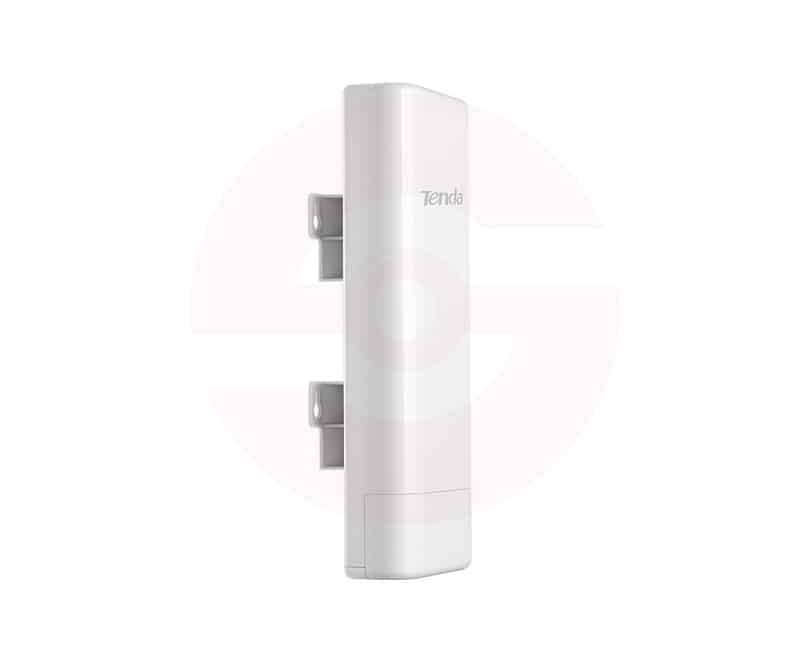

Outdoor Protection and Mounting Flexibility

The enclosure is intended for outdoor use, with weather resistance described in Tenda documentation. The original O3 v2.0 datasheet lists IP64 protection, while newer online specification pages sometimes list IP65. Confirm the exact hardware revision and enclosure marking before publishing a definitive rating. Pole or wall mounting helps position equipment above obstructions. Tenda also lists 6000V lightning protection, but professional grounding and appropriate surge precautions are still essential. No electronic protection can guarantee survival during a direct lightning strike.

Passive PoE and Ethernet Connections

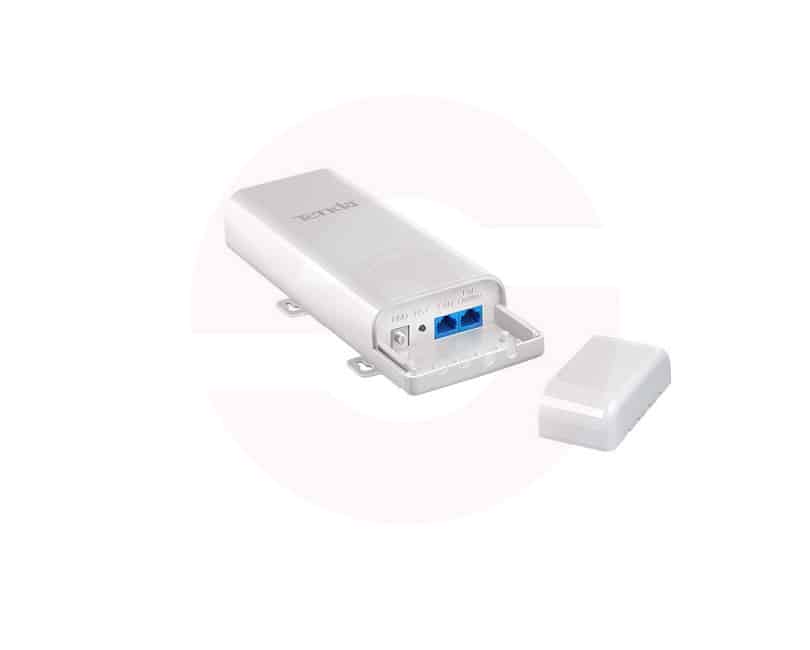

The O3 provides two 10/100Mbps Ethernet ports for compatible wired equipment. Power is supplied through a designated Ethernet connection using 12V passive PoE, and Tenda advertises deployment with the included injector over cables up to 60 meters. Passive PoE must not be confused with standard IEEE 802.3af or 802.3at power. Use the correct injector, pinout, voltage, cable, and grounding arrangement. These ports are Fast Ethernet rather than Gigabit, so consider your required throughput before purchasing.

Flexible Modes and Network Management

Supported operating modes include Access Point, Station, WISP, point to multipoint, WDS Repeater, and Router. This flexibility allows suitable deployment as a building bridge, a wireless client, or part of a managed outdoor distribution network. Features include WPA2 security, transparent bridging, VLAN tagging, access controls, signal diagnostics, scheduled reboot, and CPE Assistant management software. Set strong credentials and choose a minimally congested channel. Follow applicable local radio rules and update firmware only from verified Tenda resources.

Buy Tenda O3 in Pakistan

The Tenda O3 is worth considering for point to point CCTV connections, small business links, and supported wireless service provider installations. Confirm clear sight between mounting points, power arrangements, cable routes, and whether one unit or a matched pair is required. Customers seeking higher speeds or 5GHz operation should compare newer outdoor CPE models. Explore Tenda O3 product details and compatible alternatives at Smartlinks.pk before selecting hardware for your installation.

For security camera links, calculate video bitrates and include network overhead when judging capacity, because multiple high resolution streams may demand more throughput than an N150 bridge can deliver.
