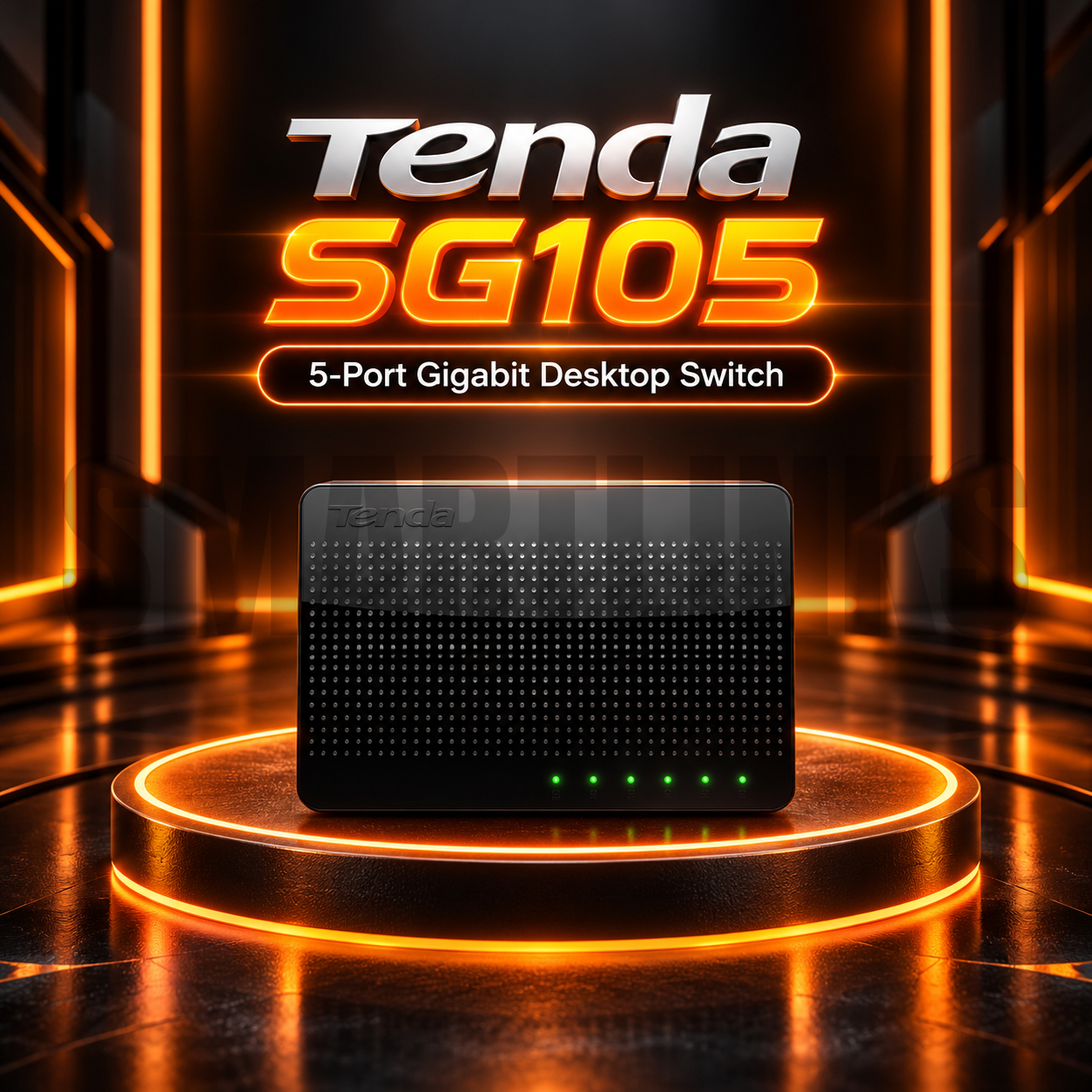

Tenda SG105 5-Port Gigabit Switch

Tenda SG105 5-Port Gigabit Desktop Switch for Fast Networking

The Tenda SG105 5-Port Gigabit Desktop Switch offers a simple way to expand wired connections in homes, shops, and small offices. With five Gigabit Ethernet ports, it connects devices that benefit from dependable local networking, including desktop computers, smart televisions, gaming consoles, network recorders, and compatible printers. Its compact design takes up little space, while unmanaged operation removes the need for complicated software settings. Whether you are adding connections near a router or organizing equipment at a workstation, the SG105 makes wired expansion convenient.

Five Gigabit Ethernet Ports

All five RJ45 ports support 10, 100, and 1000Mbps speeds through automatic negotiation. This means the switch can communicate with older Fast Ethernet equipment while also supporting Gigabit connections on compatible devices. Auto MDI/MDIX detects common cable arrangements automatically, so special crossover cables are unnecessary for ordinary connections. Connect one port to your existing router, then use the other four for additional wired equipment. Actual transfer speed depends on the connected devices, cables, and overall network conditions.

Plug-and-Play Setup

The Tenda SG105 works without user configuration for basic Ethernet switching. Plug in its compatible external power adapter, connect your network cables, and the switch begins establishing links automatically. A power indicator and five Link/Act indicators help users identify powered operation and active port connections. There is no management dashboard to learn, making this unmanaged model suitable for straightforward installations where VLAN settings or advanced traffic controls are unnecessary.

Switching Performance and Compatibility

A specified 10Gbps switching capacity enables the SG105 to handle aggregate traffic across its five Gigabit ports. Its packet forwarding rate reaches 7.44 million packets per second, according to the manufacturer. The switch also includes a 2K MAC address table, a 1Mb buffer, and store-and-forward operation. Automatic MAC address learning helps deliver frames through appropriate ports. Supported IEEE 802.3, 802.3u, 802.3ab, and 802.3x standards cover common Ethernet speeds and flow control. The switching capacity is a combined performance specification, not a promise of 10Gbps speed through one port.

Compact Design and Placement

Measuring approximately 82 by 52 by 22 millimeters for the SG105 v6.0, the switch fits comfortably beside a router, underneath a monitor, or inside a suitable media cabinet. Its lightweight plastic housing supports desktop or wall installation, helping keep wired setups organized. Position the device somewhere dry with adequate ventilation and accessible cables. This practical footprint is especially useful when furniture space is limited or additional networking equipment would be difficult to accommodate.

Efficient Everyday Operation

The SG105 v6.0 uses an external 5V, 0.6A power adapter and has a manufacturer-listed maximum consumption below 3 watts. Its modest power requirement suits typical always-connected equipment without introducing a bulky networking appliance. Because it is an Ethernet switch rather than a router, it does not create an internet connection, assign addresses independently, or extend wireless coverage. Those functions remain the responsibility of other network devices.

Suitable Applications and Limitations

Use the Tenda SG105 5-Port Gigabit Desktop Switch to add ports for compatible PCs, smart TVs, gaming equipment, and network storage connections. It can also carry data for IP cameras that have separate power. However, the SG105 does not provide Power over Ethernet, so PoE devices require another suitable power source or injector. It is also unmanaged, meaning advanced switch administration is unavailable.

Buy Tenda SG105 in Pakistan

For quick expansion with Gigabit connectivity, the SG105 combines five versatile Ethernet ports, compact dimensions, and easy installation. Explore the Tenda SG105 at Smartlinks.pk, confirm the hardware revision and network requirements, and choose suitable Ethernet cables for your home or business networking setup before ordering.
