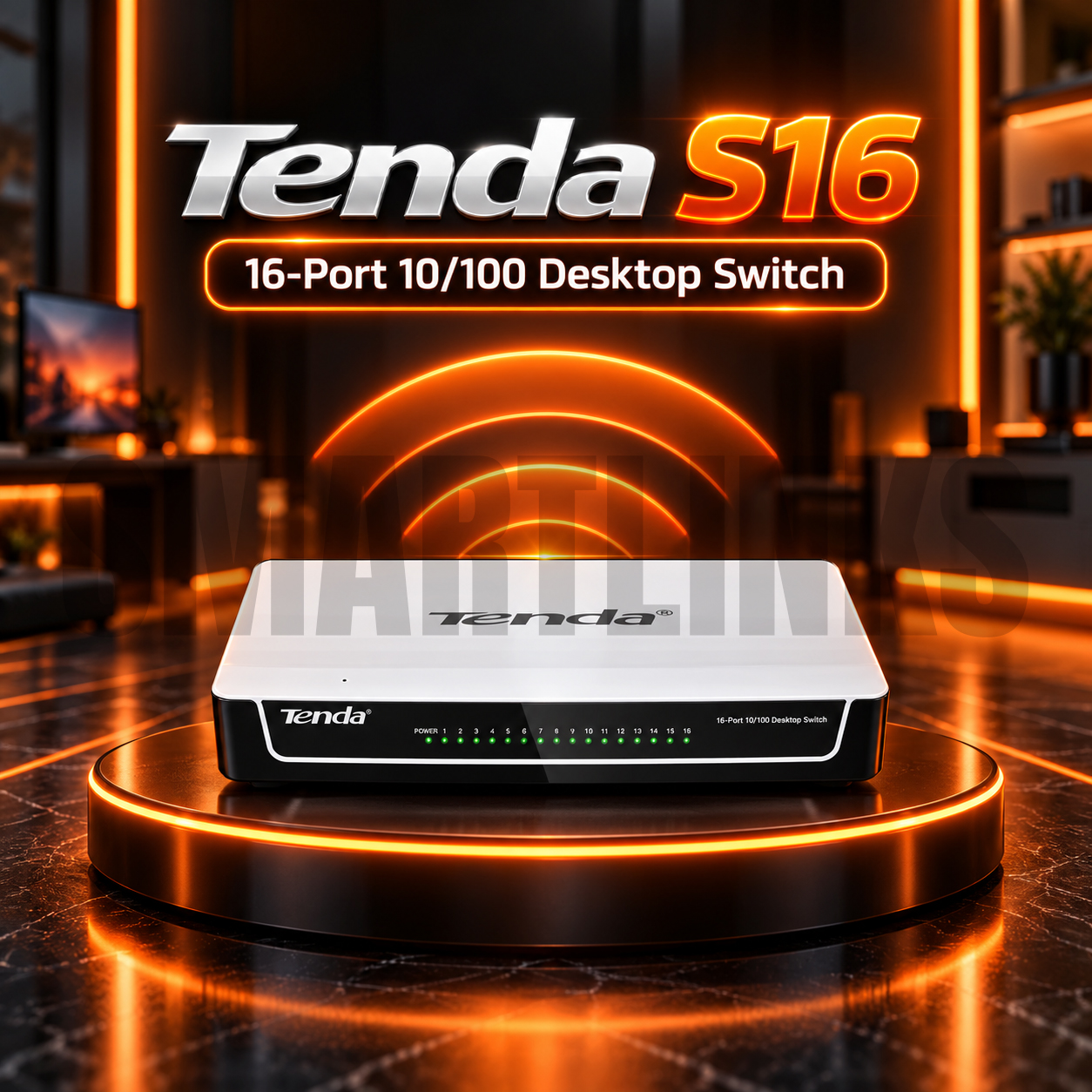

Tenda S16 16-Port Ethernet Switch

Tenda S16 16-Port Ethernet Switch for Practical Network Expansion

The Tenda S16 16-Port Ethernet Switch is a straightforward solution for expanding wired connectivity across homes, offices, shops, and small businesses. With sixteen 10/100Mbps RJ45 ports, this unmanaged switch makes it easier to connect computers, printers, network recorders, and other Ethernet-enabled equipment in one organized setup. Its compact desktop design and automatic operation suit locations that need more physical network connections without the complexity of managed switching features.

Sixteen Fast Ethernet Ports

Each port automatically negotiates a compatible connection speed of 10Mbps or 100Mbps. Auto MDI/MDIX functionality detects common Ethernet cable connections, helping remove the need for crossover cables in ordinary installations. Connect one port to a router or existing network and use the remaining fifteen ports for compatible wired devices. This arrangement supports convenient expansion when the available LAN ports on your router are insufficient for growing everyday networking requirements.

Plug-and-Play Convenience

Setting up the Tenda S16 requires no software installation or advanced configuration for basic use. Connect its external power adapter, insert Ethernet cables, and the switch can establish links with compatible equipment automatically. One power indicator and sixteen Link/Act indicators offer visual status information for troubleshooting. These lights help identify active physical connections without opening a management application, making the device approachable for users with limited networking experience.

Efficient Switching and Traffic Handling

The S16 provides a specified 3.2Gbps switching capacity and a packet forwarding rate of 2.38Mpps. These figures describe its aggregate switching capabilities, not the speed of any individual connection. Each physical port remains limited to 100Mbps. Store-and-forward operation processes received frames, while automatic MAC address learning and aging help direct local traffic toward appropriate destinations. A 4K MAC address table and support for IEEE 802.3, 802.3u, and 802.3x standards contribute to conventional Fast Ethernet operation.

Compact Placement Options

Measuring 218 × 135 × 41.6mm, the switch fits onto desks, shelves, and other available surfaces without requiring a network rack. Its plastic enclosure supports desktop and wall mounting, allowing flexible positioning near workstations or communication equipment. A wall-mounted installation can also help keep crowded office areas tidy by moving the unit away from busy work surfaces. Using clearly labeled Ethernet cables and maintaining proper cable management can further simplify identification, replacement, and routine network troubleshooting. Choose a dry, ventilated location with accessible cable routing for convenient maintenance.

Versatile Everyday Applications

The Tenda S16 16-Port Ethernet Switch is useful for connecting wired computers in a small office, linking printers in a shared workspace, or adding Ethernet connections near a network video recorder. Compatible IP cameras can also exchange network data through the switch when powered separately. Because this model does not provide Power over Ethernet, it cannot supply electricity directly to PoE cameras or access points. Appropriate power supplies or injectors must be arranged independently.

Important Speed Considerations

Although its total switching capacity is 3.2Gbps, the S16 is not a Gigabit Ethernet switch. Every port operates at up to 100Mbps, making it better suited to ordinary Fast Ethernet environments than demanding high-speed file transfers. For networks that require 1000Mbps connections, select a suitable Gigabit switch instead. The S16 also lacks managed networking controls, so it is designed for simple connectivity rather than detailed VLAN configuration or advanced traffic policies.

Order Tenda S16 in Pakistan

If you need more wired connections in a straightforward, space-conscious package, the S16 offers sixteen accessible ports and automatic network operation. Browse the Tenda S16 at Smartlinks.pk to review availability, pricing, and compatible networking accessories for your installation. Check equipment speed and power requirements before purchasing to ensure this switch meets your needs.
