Tenda TEF1110P-8-63W 8-Port PoE Switch

Tenda TEF1110P-8-63W 10-Port PoE Switch for CCTV Systems

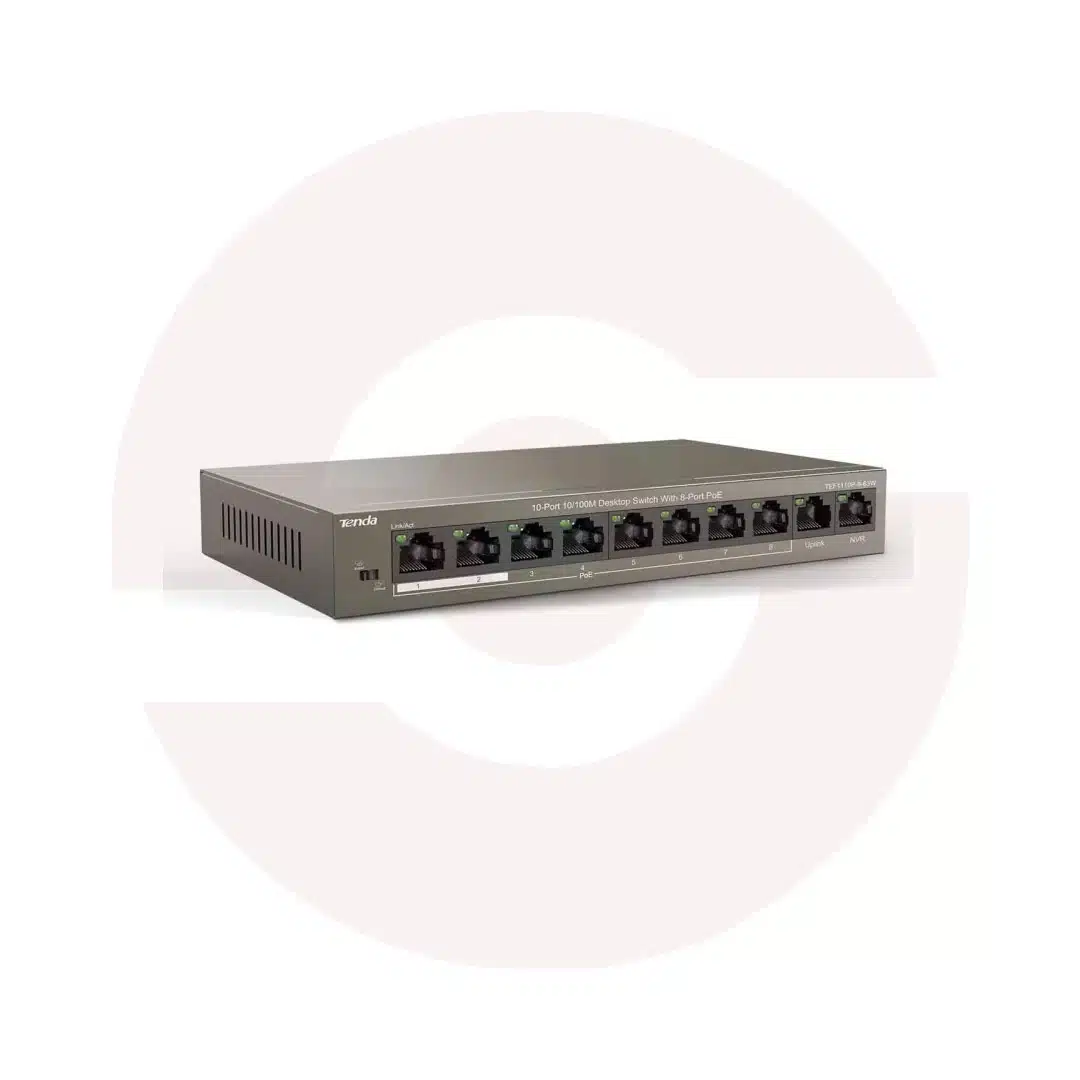

The Tenda TEF1110P-8-63W is a practical unmanaged network switch designed for small CCTV installations, shops, offices, and other security environments. It combines eight Fast Ethernet PoE ports with two separate uplink ports, helping installers connect compatible IP cameras while reducing the need for individual camera power adapters. With simple operation and surveillance focused features, this switch supports convenient wired network expansion without complicated management software.

Eight PoE Ports and Dual Uplinks

Ports one through eight deliver Ethernet data and compatible Power over Ethernet using IEEE 802.3af and 802.3at standards. Each PoE port can supply up to 30 watts, but the total available PoE budget must also be respected. Two additional 10/100Mbps uplink ports provide data connections for a router, network video recorder, or upstream switch. These uplink ports do not provide PoE power. Separate connections for cameras and network equipment make planning a compact surveillance layout easier.

Understand the Available PoE Power

Despite the 63W designation in the model name, Tenda’s current product specifications state a total usable PoE budget of 58W. The switch uses an external 51V, 1.25A adapter. Before connecting several cameras, add their maximum rated power requirements, including infrared lighting and other nighttime functions. Eight cameras can be connected only when their combined power needs remain within the available budget. The 30W per port rating does not mean all eight ports can deliver 30W simultaneously.

Extend Mode and Port Isolation

The Tenda TEF1110P-8-63W includes an Extend Mode for surveillance installations needing longer cable runs. Under suitable conditions, it supports data and power transmission distances up to 250 meters, with PoE ports limited to 10Mbps. Activating this mode also isolates PoE ports one through eight from one another while allowing communication with the uplink ports. This one key VLAN isolation can help limit unnecessary traffic between cameras. Cable quality, device compatibility, and bandwidth requirements influence real world performance.

QoS and Network Performance

Built in quality of service prioritizes traffic associated with ports one and two during congestion, helping important surveillance connections receive preferential handling. The switch provides 1.6Gbps specified switching capacity, a 1.48Mpps packet forwarding rate, a 1K MAC address table, and store and forward operation. All ten RJ45 connections operate at 10/100Mbps, so the product is not a Gigabit Ethernet switch. Its aggregate switching capacity should never be confused with the maximum speed of an individual port.

Surge Protection and Practical Installation

Tenda specifies 6kV lightning protection for network ports and 4kV protection for the power connection. These built in measures offer additional resistance to electrical surges but cannot replace proper grounding and other site appropriate safeguards. The switch measures approximately 177.5 by 104 by 26 millimeters, supporting desktop or wall placement. Power and link activity indicators simplify basic connection checks. Use appropriate Ethernet cabling and install equipment in a dry, ventilated location.

Ideal for Small Security Networks

This model suits compatible IP cameras, NVR connections, and modest business surveillance systems that do not require Gigabit interfaces or advanced managed switching. Its plug and play design minimizes setup work, while dual uplinks provide useful connection flexibility.

For smoother deployment, label each cable and test every camera link before mounting equipment. Confirm that your NVR supports the intended camera resolution and recording bitrate. A compatible switch transports network data; it does not record footage, create internet access, or supply Wi-Fi coverage independently.

Buy Tenda TEF1110P-8-63W in Pakistan

Explore the Tenda TEF1110P-8-63W at Smartlinks.pk to review availability, warranty information, and suitable accessories. Check camera power requirements, transmission distances, and port speeds before ordering to ensure your installation meets its networking needs.
