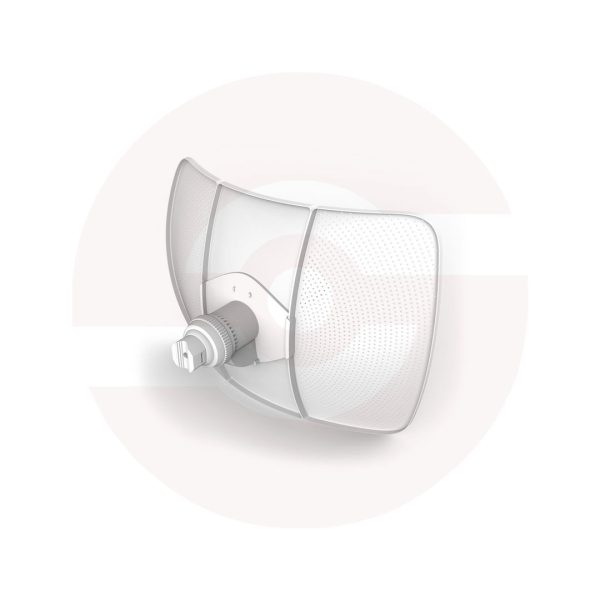

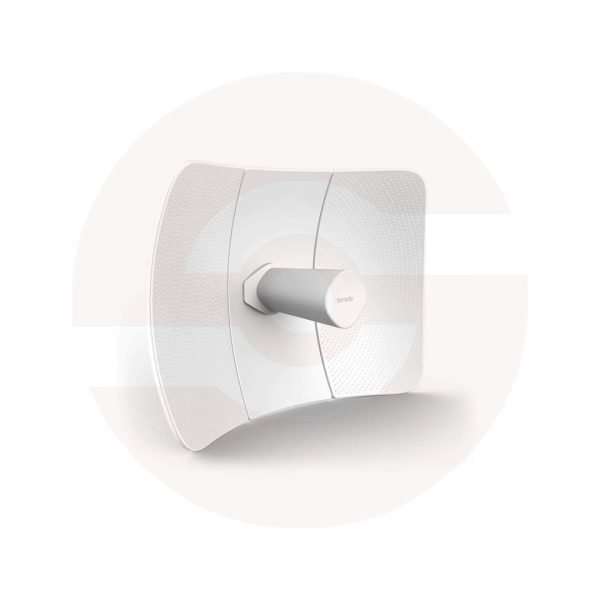

Tenda O8 5GHz 23dBi 433Mbps Outdoor Wireless CPE

Key Product Highlights

  • 5GHz Wireless AC Technology: Up to 433Mbps theoretical wireless link speed.

  • 23dBi Directional Antenna: Integrated high-gain antenna for focused outdoor transmission.

  • Up to 20km Advertised Range: Designed for long-distance wireless links under suitable conditions.

  • Point-to-Point and Point-to-Multipoint: Supports building-to-building and outdoor distribution networks.

  • TD-MAX Technology: Proprietary TDMA protocol for efficient multipoint communication.

  • Fast Ethernet Connectivity: 1 × 10/100Mbps Ethernet port.

  • IP65 Weatherproof Enclosure: Dust-tight and resistant to water jets.

  • 6000V Lightning Protection: Built-in surge protection design.

  • 12V Passive PoE: Supports power delivery over Ethernet using compatible equipment.

  • 50-Meter PoE Deployment: Manufacturer-advertised deployment distance with a suitable injector and cable.

  • Automatic Bridging: Simplifies linking compatible Tenda outdoor CPE devices.

  • Multiple Operating Modes: AP, Station, WISP, P2MP, WDS Repeater and Router.

  • 20/40/80MHz Channel Bandwidth: Flexible wireless channel configuration.

  • CCTV Surveillance Applications: Suitable for wireless IP camera connectivity.

  • Pole-Mount Design: Designed for outdoor directional alignment.

  • Remote Management: Supports CPE Assistant, diagnostic tools and scheduled reboot.

    Discover More: Tenda Access Points

18 People watching this product now!

Description

Tenda O8 5GHz 23dBi 11ac Outdoor Wireless CPE

The Tenda O8 5GHz 23dBi Outdoor CPE provides directional wireless connectivity for locations where installing Ethernet cables is difficult. Designed for outdoor point to point and point to multipoint networking, it can connect buildings, remote surveillance sites, and compatible wireless internet infrastructure. Its durable housing supports outdoor CCTV and business deployments. Unlike an indoor WiFi router, the O8 is intended to aim a focused signal toward another outdoor station.

5GHz Wireless AC Connectivity

The O8 supports IEEE 802.11a, 802.11n, and 802.11ac standards on the 5GHz band. Its maximum advertised wireless link rate is 433Mbps with compatible equipment. This figure represents the radio connection rather than guaranteed internet throughput. A single 10/100Mbps Ethernet port also limits wired traffic, so this product should not be marketed as a Gigabit CPE. Real performance depends on channel conditions, antenna alignment, radio interference, and network demands. The O8 does not provide ordinary 2.4GHz wireless coverage.

Directional Antenna for Long Distance Links

An integrated 23dBi vertically polarized directional antenna concentrates its wireless signal toward a selected endpoint. Tenda advertises outdoor links of up to 20 kilometers under favorable conditions. The narrow antenna beam requires careful alignment, suitable mounting height, and clear line of sight. Trees, buildings, uneven terrain, and insufficient Fresnel zone clearance can disrupt a connection. A dedicated point to point bridge typically requires two compatible units, one installed at each location. Advertised distance does not guarantee a stable link at every installation site.

Point to Point and Multipoint Applications

The Tenda O8 supports connections for remote CCTV cameras, warehouse networks, separate offices, and wireless service provider distribution. Its TD-MAX technology uses a proprietary time division protocol to improve efficiency in supported multipoint deployments. Available modes include Access Point, Station, WISP, point to multipoint, WDS Repeater, and Router. Automatic bridging can simplify pairing compatible devices, although network settings and installation still require attention. For surveillance applications, calculate the total video bitrate and allow capacity for network overhead before selecting hardware.

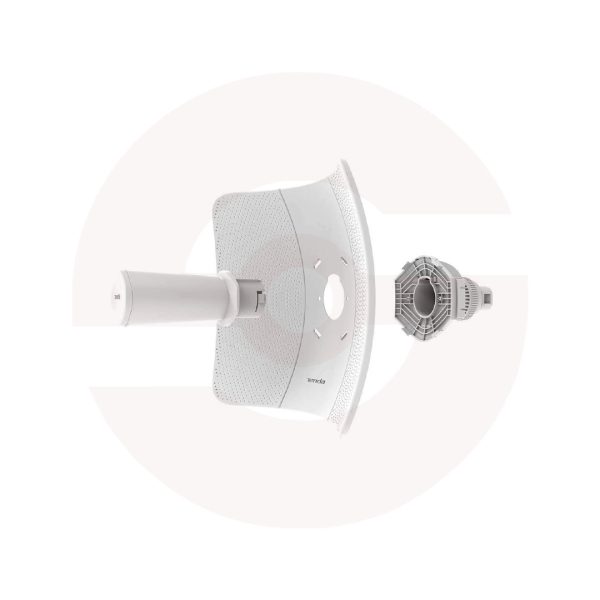

Weatherproof Enclosure and Outdoor Installation

An IP65 rated enclosure helps protect the device from dust and water jets during outdoor use. The manufacturer also specifies 6000V lightning protection, but proper mounting, grounding practices, and surge precautions remain essential. No built in protection guarantees safety from a direct lightning strike. Its pole mounting design supports accurate directional positioning. Protect cable connections from moisture, provide strain relief, and inspect mounts periodically, particularly in locations exposed to wind or severe weather.

Fast Ethernet and Passive PoE

The O8 includes one 10/100Mbps Ethernet port and uses 12V passive Power over Ethernet with compatible power equipment. The supplied injector supports convenient installation without a separate power socket beside the outdoor unit. Passive PoE is not the same as IEEE 802.3af or 802.3at; use the manufacturer’s recommended injector, polarity, and cable. Wired link speed is limited to Fast Ethernet, even though the theoretical wireless rate is higher. Follow electrical safety requirements when routing cables outdoors.

Easy Management and Security

Management features include access control, client isolation, VLAN tagging, signal scanning, scheduled reboot, and configuration backup. Supported WPA2 security helps protect wireless links when properly configured. Tenda CPE Assistant provides additional management options for compatible installations. Choose strong administrative credentials, select permitted radio channels, and install firmware from official sources.

Buy Tenda O8 in Pakistan

The Tenda O8 is designed for customers who need focused outdoor bridging rather than whole home wireless coverage. Confirm radio regulations, link distance, power compatibility, and required throughput before ordering. Compare compatible outdoor CPE equipment at Smartlinks.pk and choose a configuration that fits your CCTV or business networking project.
